MT Gear Shift Lever: Disassembly: 5MT

Disassemble the lock wire.

Fig 1: Disassembling Lock Wire
Courtesy of SUBARU OF AMERICA, INC.
Remove the rod from lever.

Fig 2: Removing Rod From Lever
Courtesy of SUBARU OF AMERICA, INC.

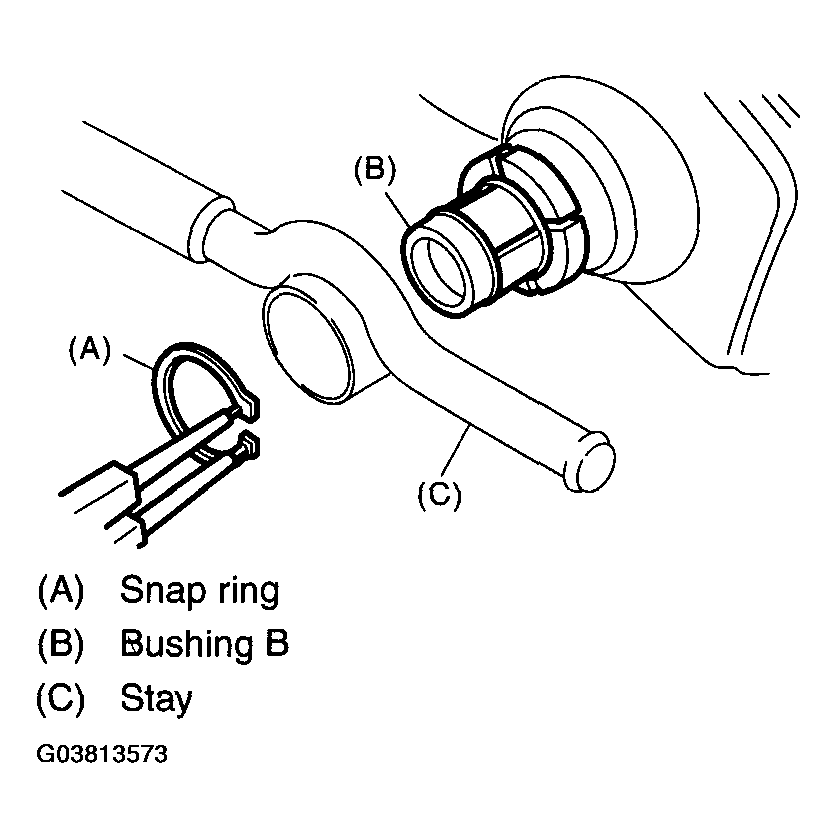

Remove the snap ring from bushing B, and then disconnect the stay.

Fig 3: Removing Snap Ring From Bushing
Courtesy of SUBARU OF AMERICA, INC.
Remove the boot from gear shift lever.
Remove the bushing and cushion rubber from stay.

Fig 4: Removing Bushing And Cushion Rubber From Stay
Courtesy of SUBARU OF AMERICA, INC.
Remove O-ring, and then disconnect the bushing B.

Fig 5: Removing O-Ring
Courtesy of SUBARU OF AMERICA, INC.
Draw out the spring pin, and then remove the bushing A from gear shift lever.

Fig 6: Removing Bushing A From Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
