AT Shift Lock Solenoid and "P" Range Switch: Removal

Disconnect the ground cable from battery.
Remove the console box. < Ref. to REMOVAL , Console Box. >
Disconnect the connector.
Remove the grip.
Remove the indicator light from indicator cover.

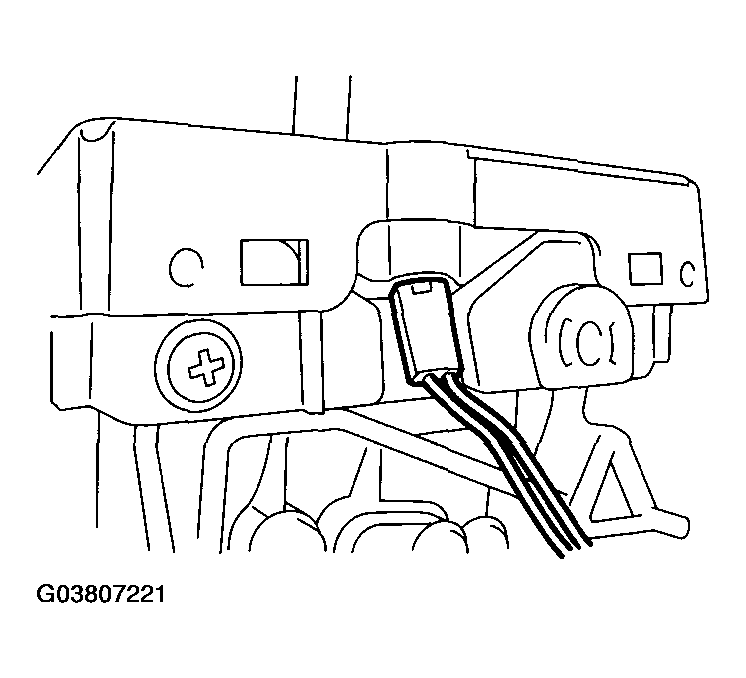

Fig 1: Disconnecting Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the indicator cover.

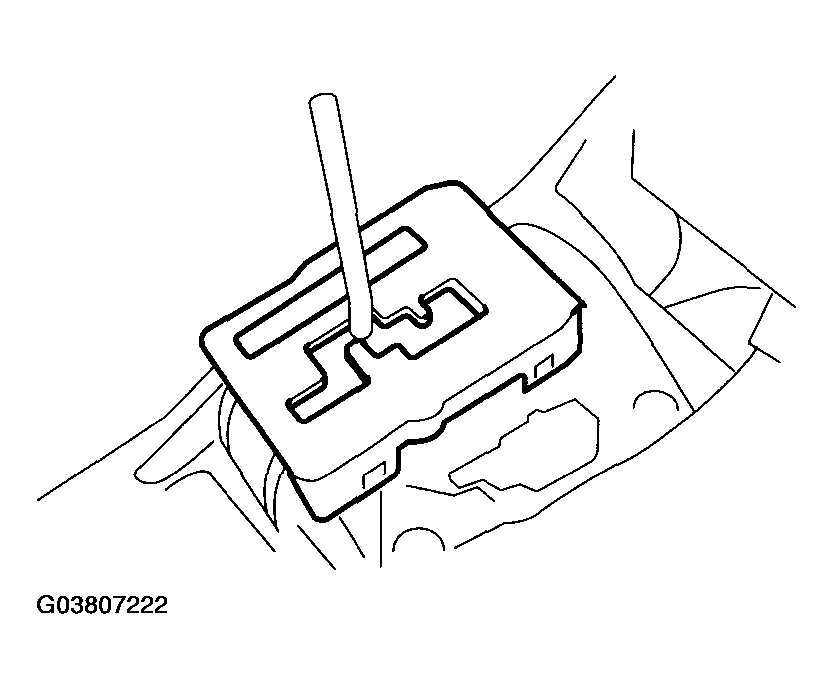

Fig 2: Removing Indicator Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the blind.
Remove the cushion.
Remove the clip, and then remove the "P" range switch.

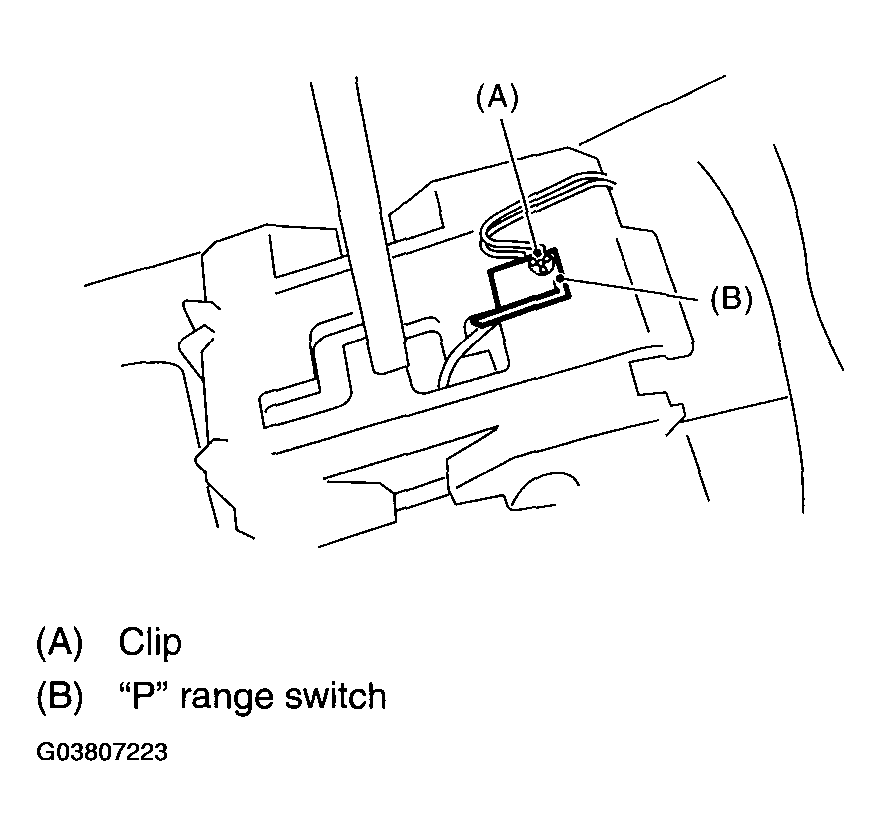

Fig 3: Removing Clip And P Range Switch
Courtesy of SUBARU OF AMERICA, INC.
Remove the cover.

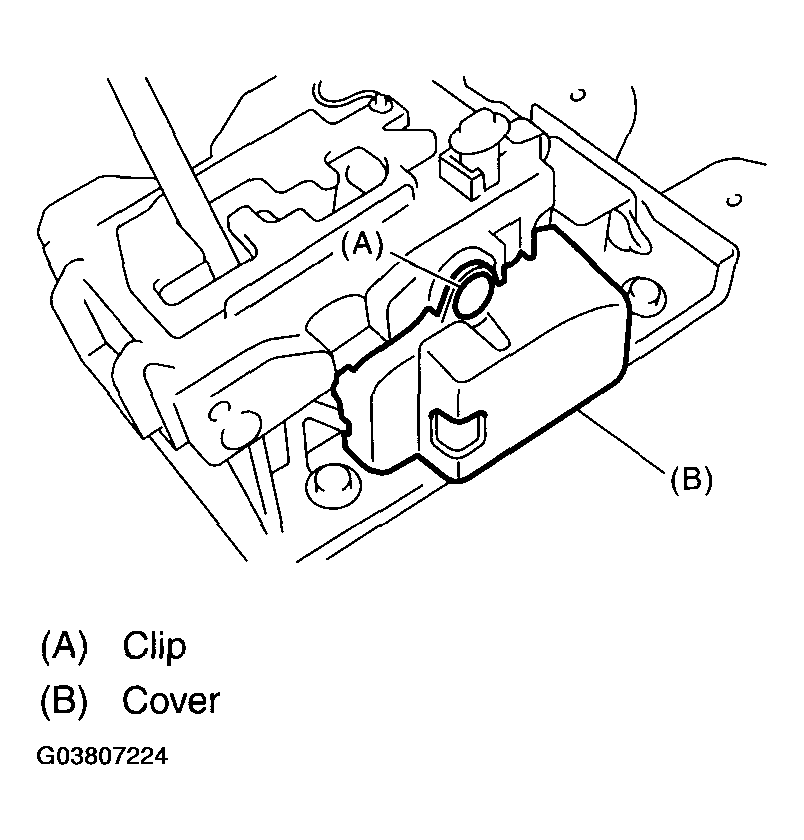

Fig 4: Removing Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp and remove the shift lock solenoid.

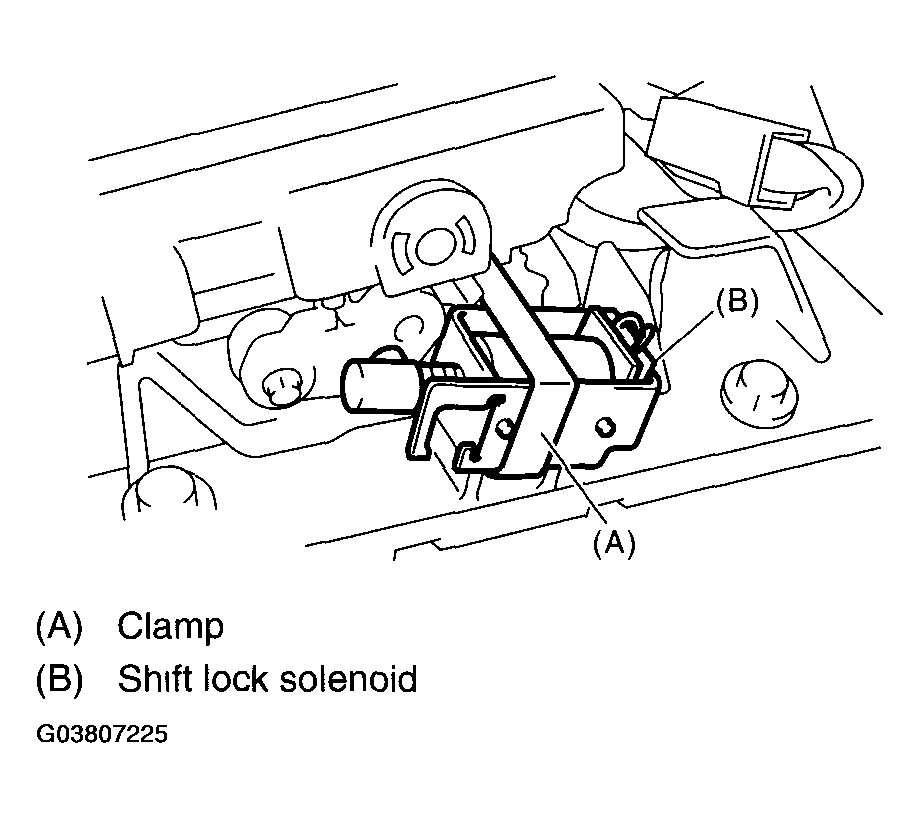

Fig 5: Removing Clamp And Shift Lock Solenoid
Courtesy of SUBARU OF AMERICA, INC.
