Wiring Diagram:

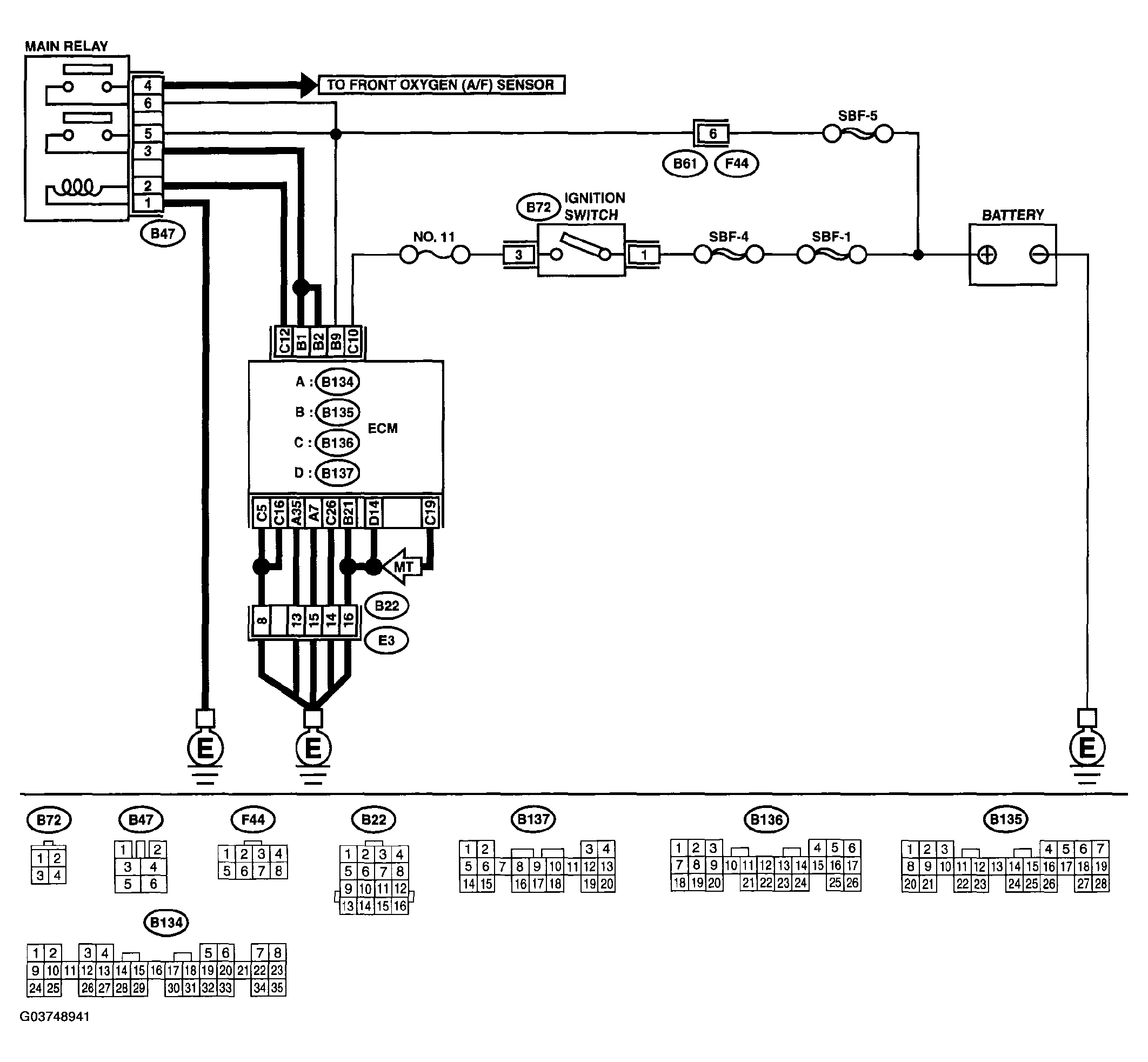

Fig 1: Wiring Diagram - DTC P0604
G03748941Courtesy of SUBARU OF AMERICA, INC.
DIAGNOSTIC STEPS DTC P0604

Step Check Yes No
1. CHECK ANY OTHER DTC ON DISPLAY.  Is any other DTC displayed? Inspect the related DTC using List of Diagnostic Trouble Code (DTC). < Ref. to , LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . > A temporary poor contact.
