Datum Dimensions: Measurement: Compartment

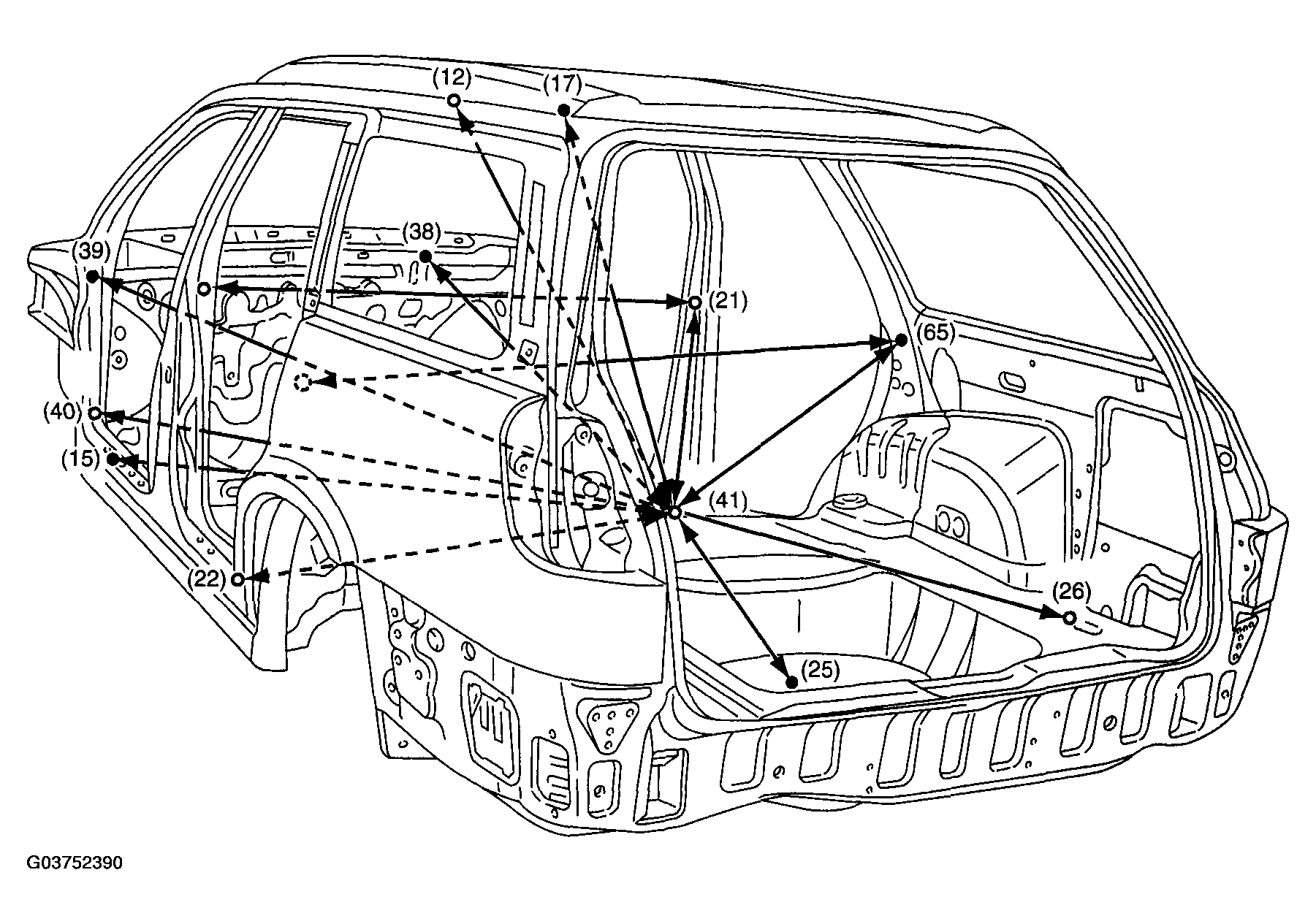

COMPARTMENT SPECIFICATION
| Point to point | Dimension | Point to point | Dimension |
|---|---|---|---|
| (21) RH to (21) LH | 1,351 (53.19) | (41) to (22) LH | 738 (29.06) |
| (15) RH to (15) LH | 1,455 (57.28) | (41) to (26) RH | 1,459 (57.44) |
| (22) RH to (22) LH | 1,455 (57.28) | (41) to (26) LH | 1,459 (57.44) |
| (39) RH to (39) LH | 1,385 (54.53) | (41) to (25) | 1,290 (50.79) |
| (40) RH to (40) LH | 1,392 (54.80) | (41) to (12) | 1,228 (48.35) |
| (41) to (38) | 1,639 (64.53) | (41) to (21) RH | 940 (37.01) |
| (41) to (39) RH | 1,642 (64.65) | (41) to (21) LH | 940 (37.01) |
| (41) to (39) LH | 1,642 (64.65) | (41) to (17) RH | 1,261 (49.65) |
| (41) to (40) RH | 1,531 (60.28) | (41) to (17) LH | 1,261 (49.65) |
| (41) to (40) LH | 1,531 (60.28) | (65) RH to (65) LH | 1,307 (51.46) |
| (41) to (15) RH | 1,342 (52.83) | (41) to (65) RH | 969 (38.15) |
| (41) to (15) LH | 1,342 (52.83) | (41) to (65) LH | 969 (38.15) |
| (41) to (22) RH | 738 (29.06) | Unit: mm (in) | |
