Control Module I/O Signal: Schematic

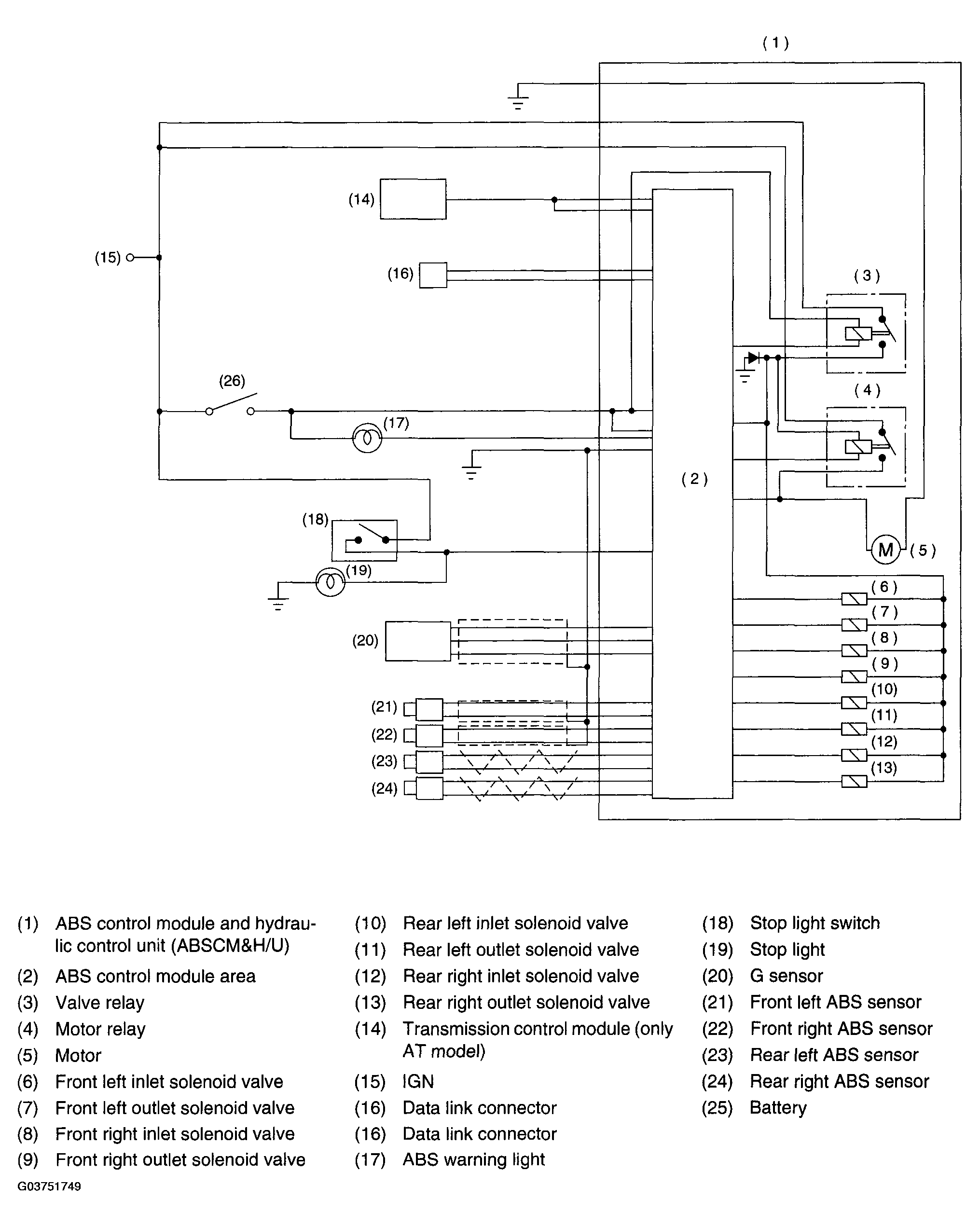

Fig 1: Control Module Schematic Diagram

G03751749

Courtesy of SUBARU OF AMERICA, INC.
