Non-Turbo Models

This solenoid is mounted on the transfer hydraulic pressure control unit on the rear end of transmission case. Its duty ratio is controlled by signals from the TCM. It then controls the transfer clutch/control valve to control the pressure applied to the transfer clutch.

• MPT models

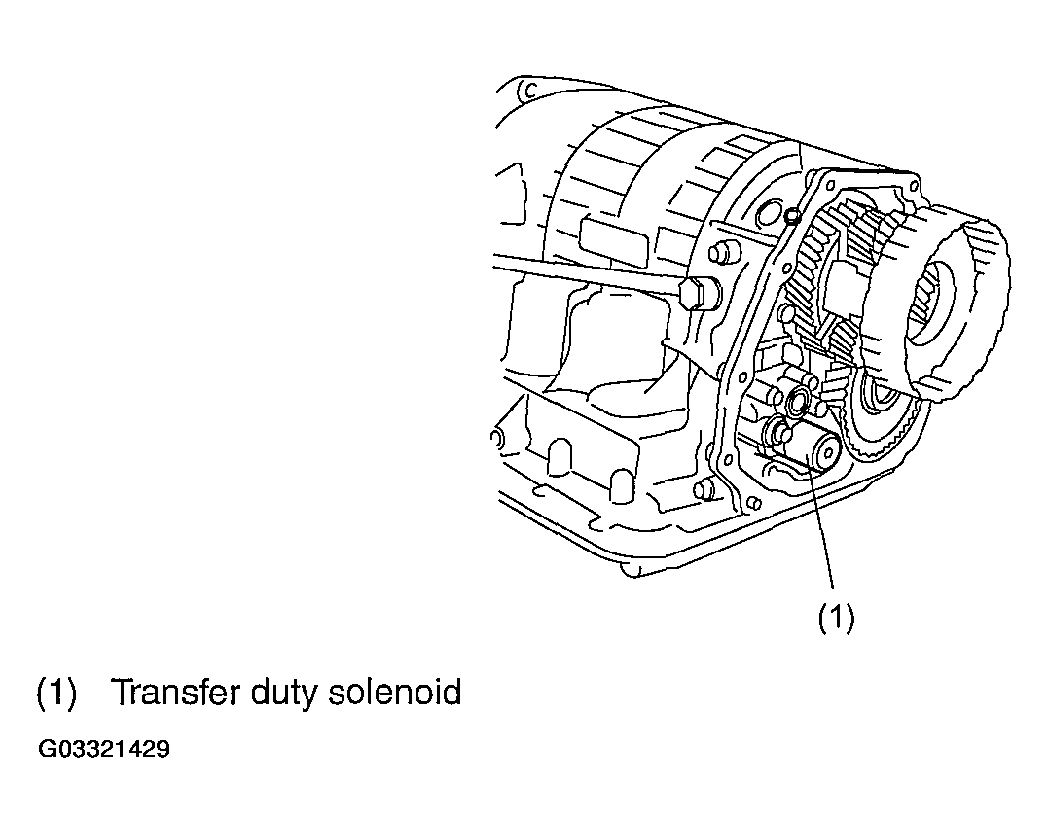

  Fig 1: Identifying Transfer Duty Solenoid Non-Turbo Models (MPT Models)

  Courtesy of SUBARU OF AMERICA, INC.
• VTD models

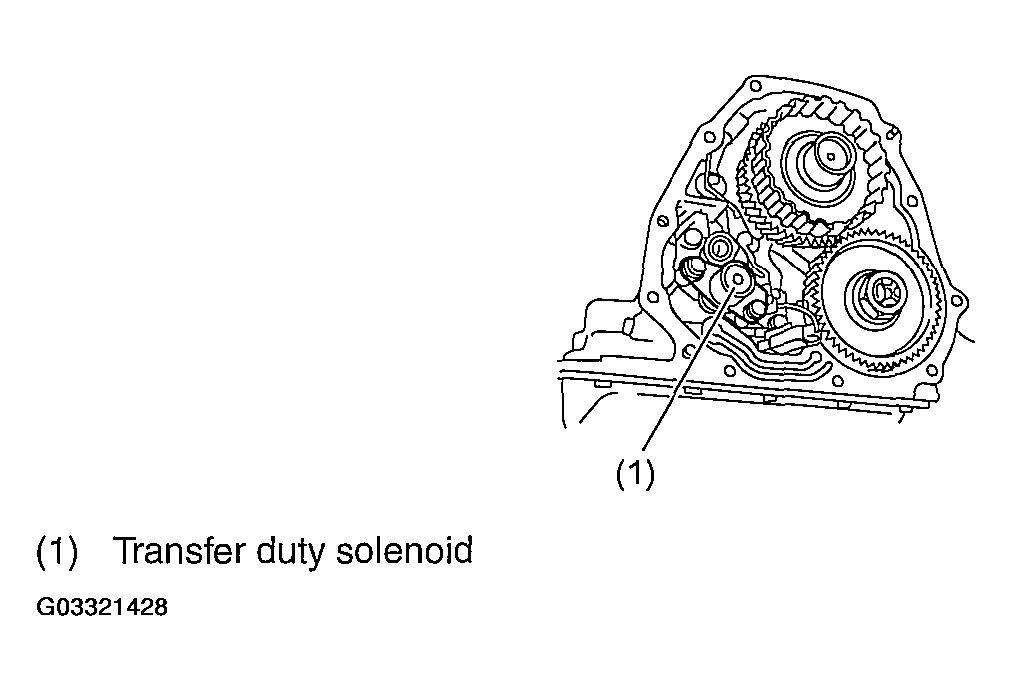

  Fig 2: Identifying Transfer Duty Solenoid Non-Turbo Models (VTD Models)

  Courtesy of SUBARU OF AMERICA, INC.
