2.5 L Model

  1. Install reservoir tank to bracket.
  2. Connect pipes D to return hose and suction hose to oil pump.
    Fig 1: Connecting Pipes D To Return Hose & Suction Hose To Oil Pump (Non-Turbo Model)
    G00868138Courtesy of SUBARU OF AMERICA, INC.

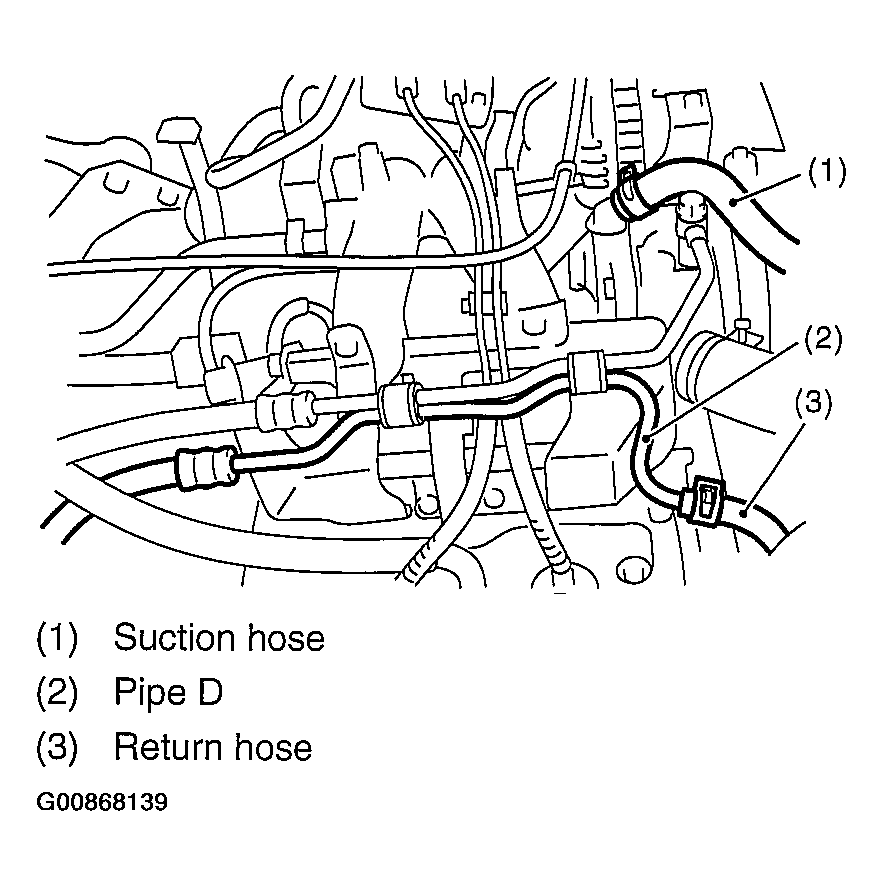

    Fig 2: Connecting Pipes D To Return Hose & Suction Hose To Oil Pump (Turbo Model)
    G00868139Courtesy of SUBARU OF AMERICA, INC.
  3. Feed the specified power steering fluid. Refer to POWER STEERING FLUID .
