Engine Control Module (ECM) I/O Signal Connector End Views (2.5L Non-Turbo)

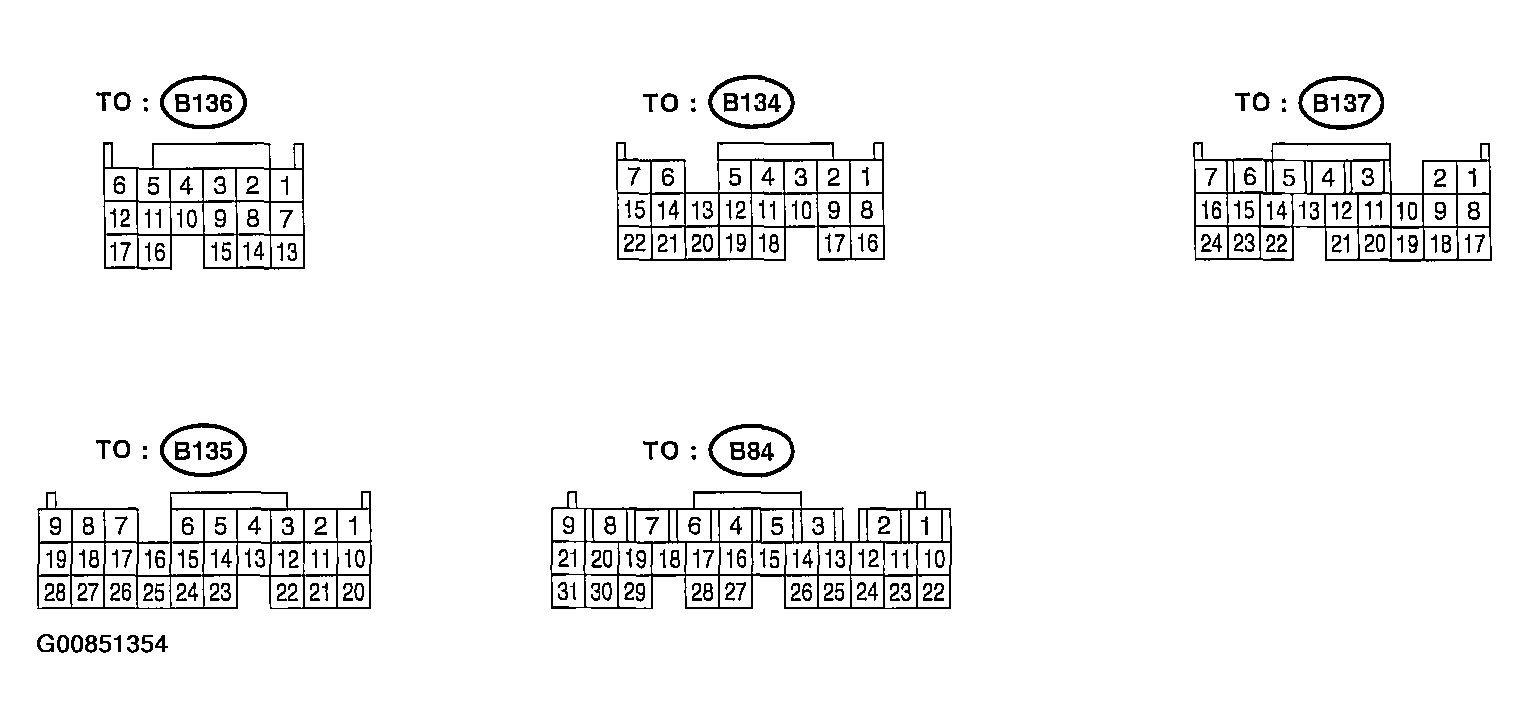

Fig 1: Engine Control Module (ECM) I/O Signal Connector End Views (2.5L Non-Turbo)

G00851354

Courtesy of SUBARU OF AMERICA, INC.
