Section 4 (Engine Mechanical (H4SO)): General Description: Specifications

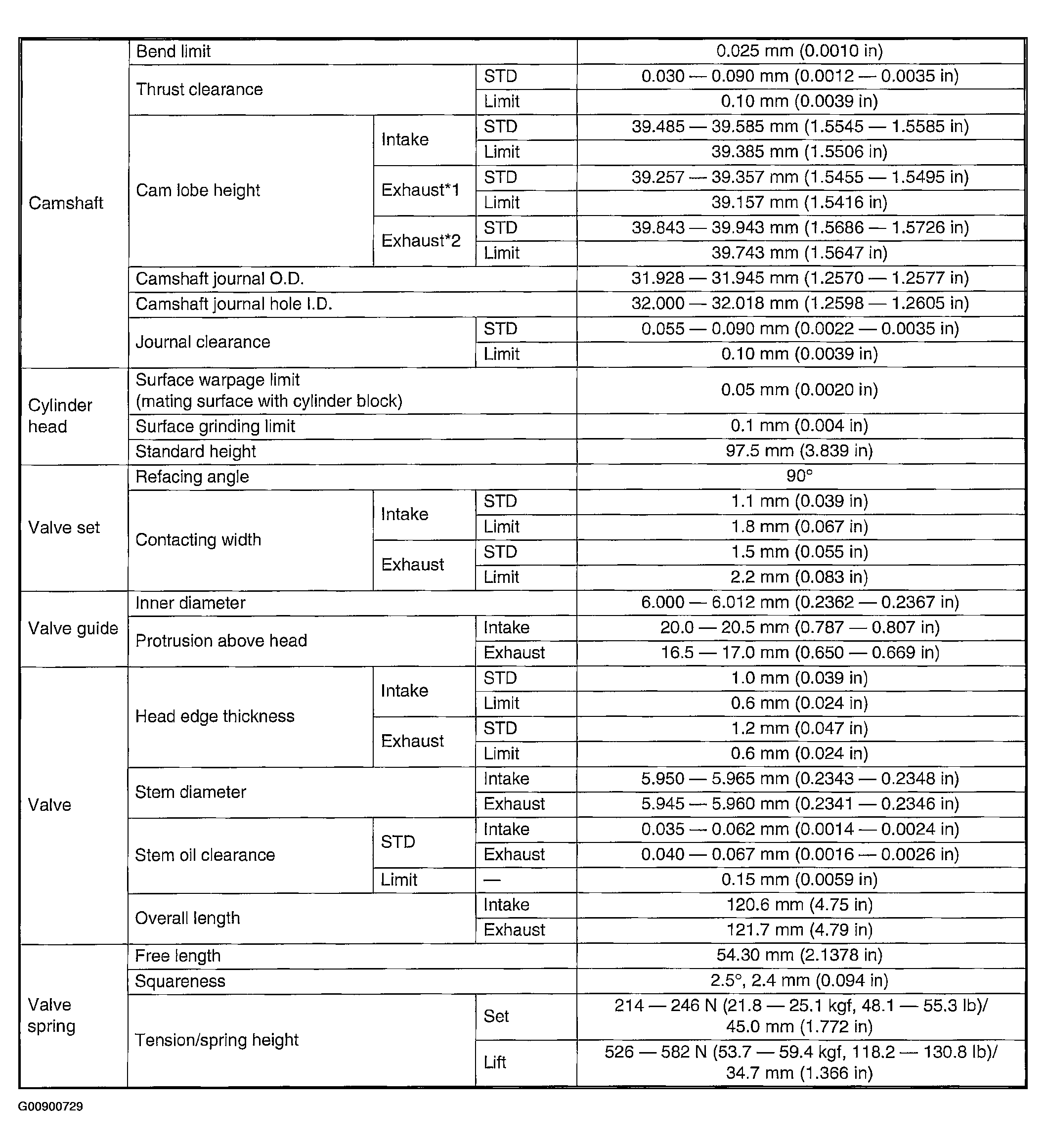

Fig 1: General Description Chart

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

• STD: Standard I.D.: Inner Diameter O.D.: Outer Diameter US: Undersize OS: Oversize
• *1, *2 in tables on the following pages stand for: *1 Except U5, *2 U5 respectively

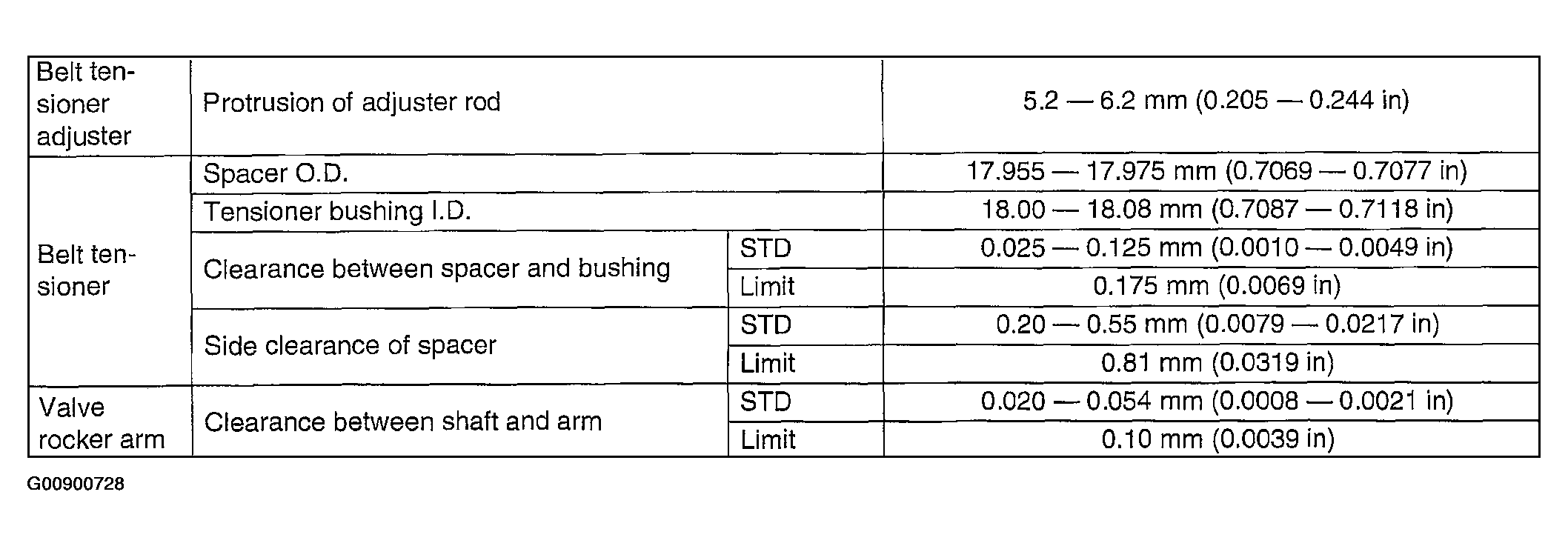

Fig 2: Adjuster Rod Protrusion Specification Chart (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Adjuster Rod Protrusion Specification Chart (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Adjuster Rod Protrusion Specification Chart (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Adjuster Rod Protrusion Specification Chart (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
