Section 17 (Manual Transmission And Differential): General Description: Preparation Tool

WARNING: This page is about a different variant/trim than selected.

SPECIAL TOOLS

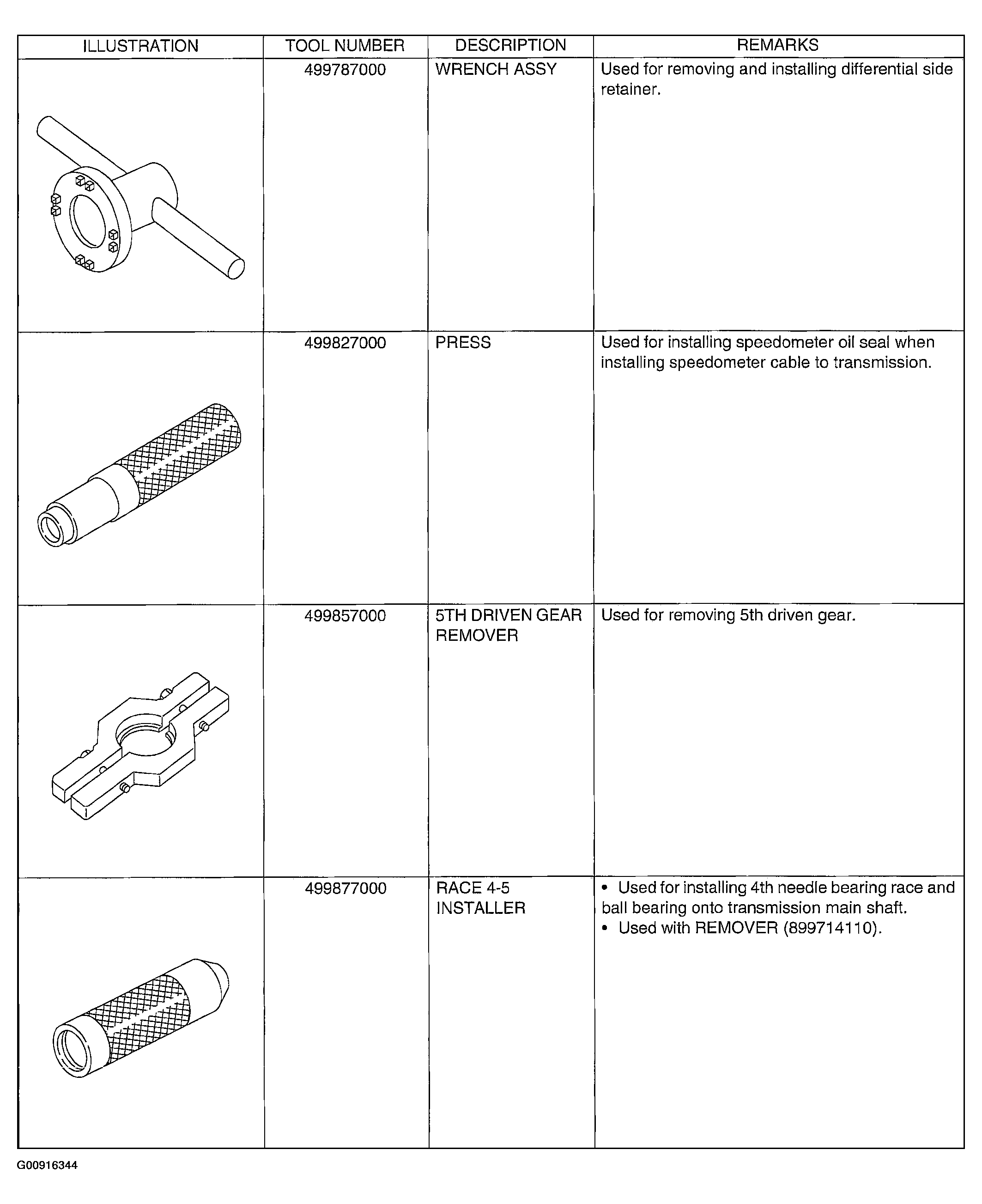

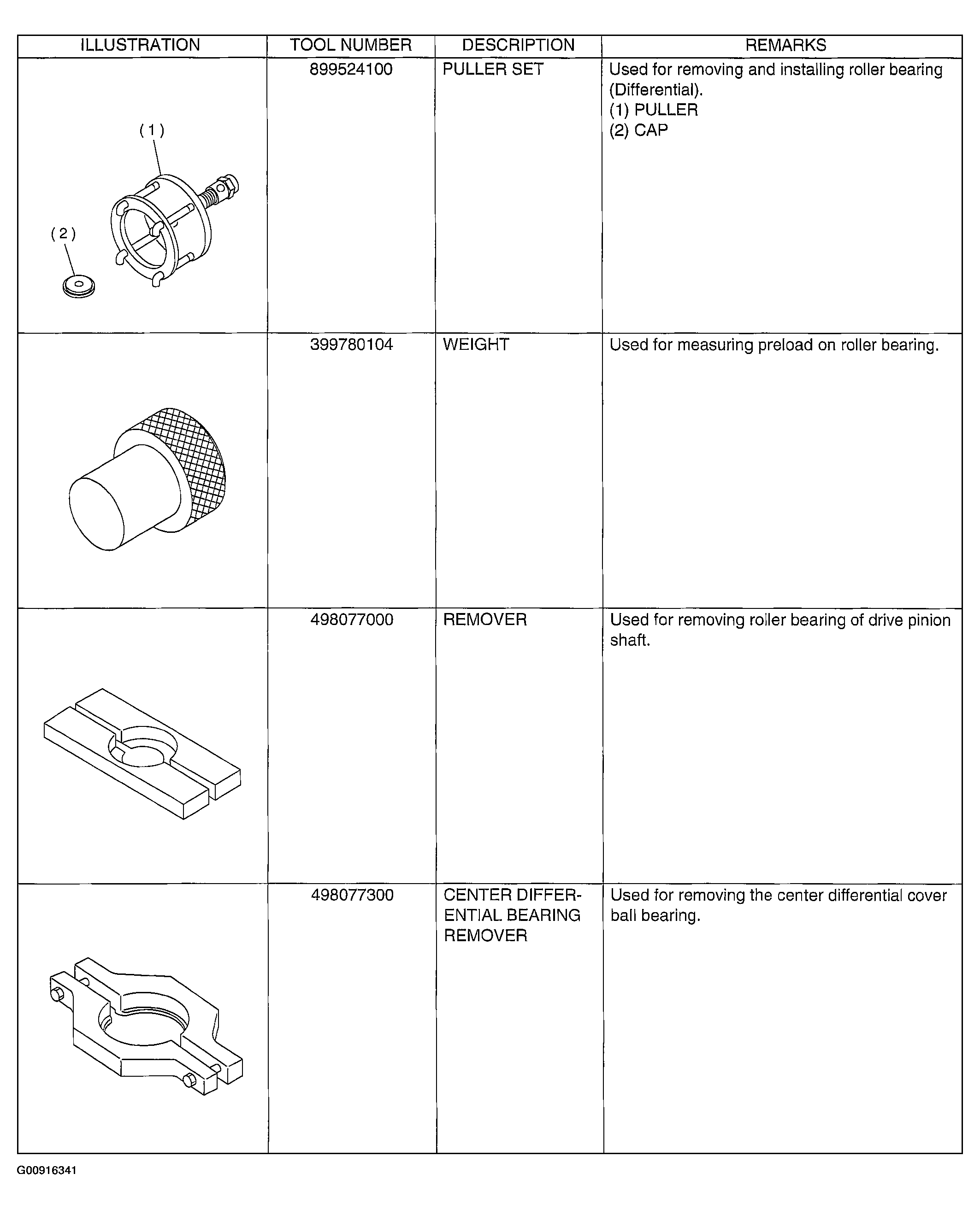

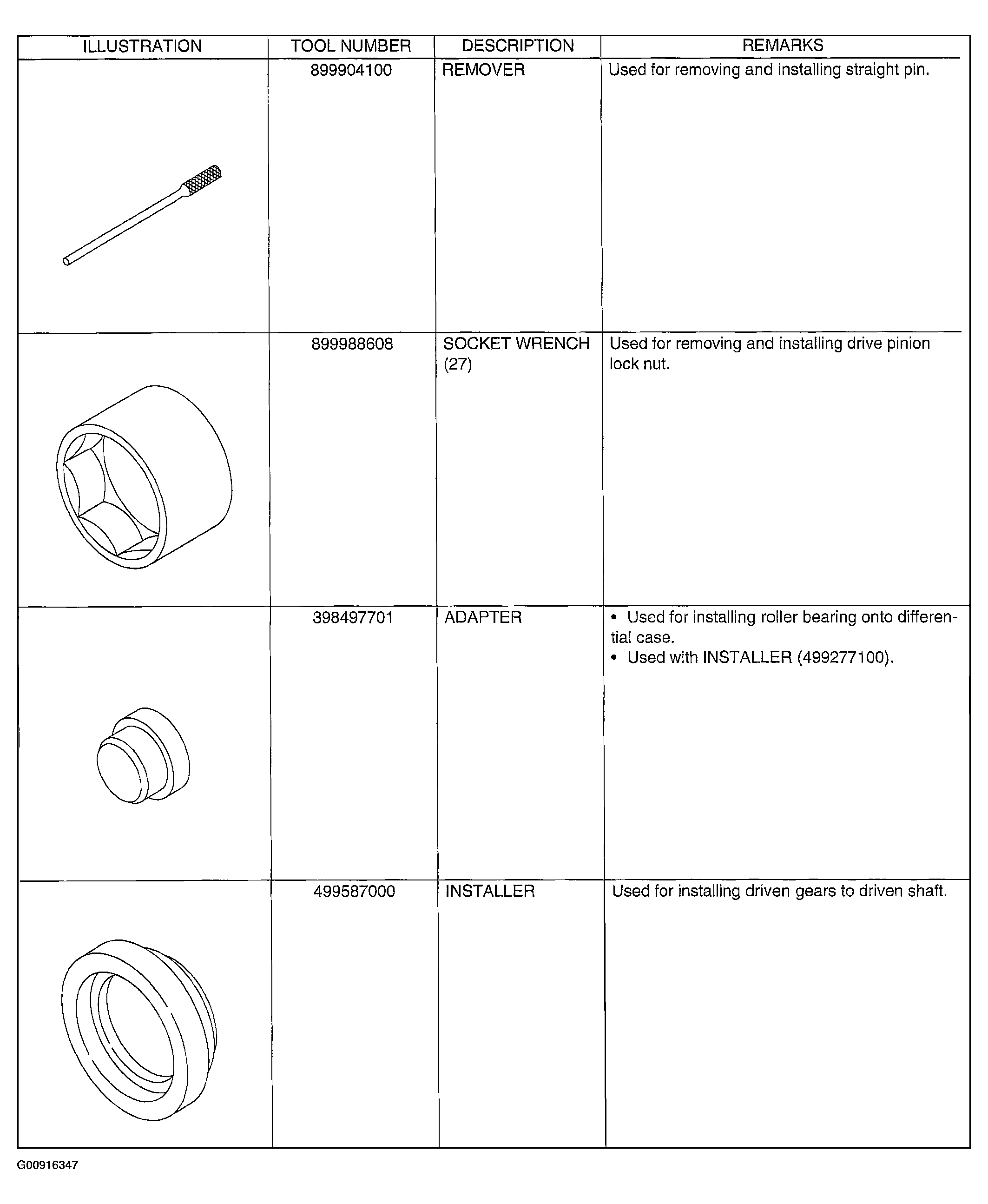

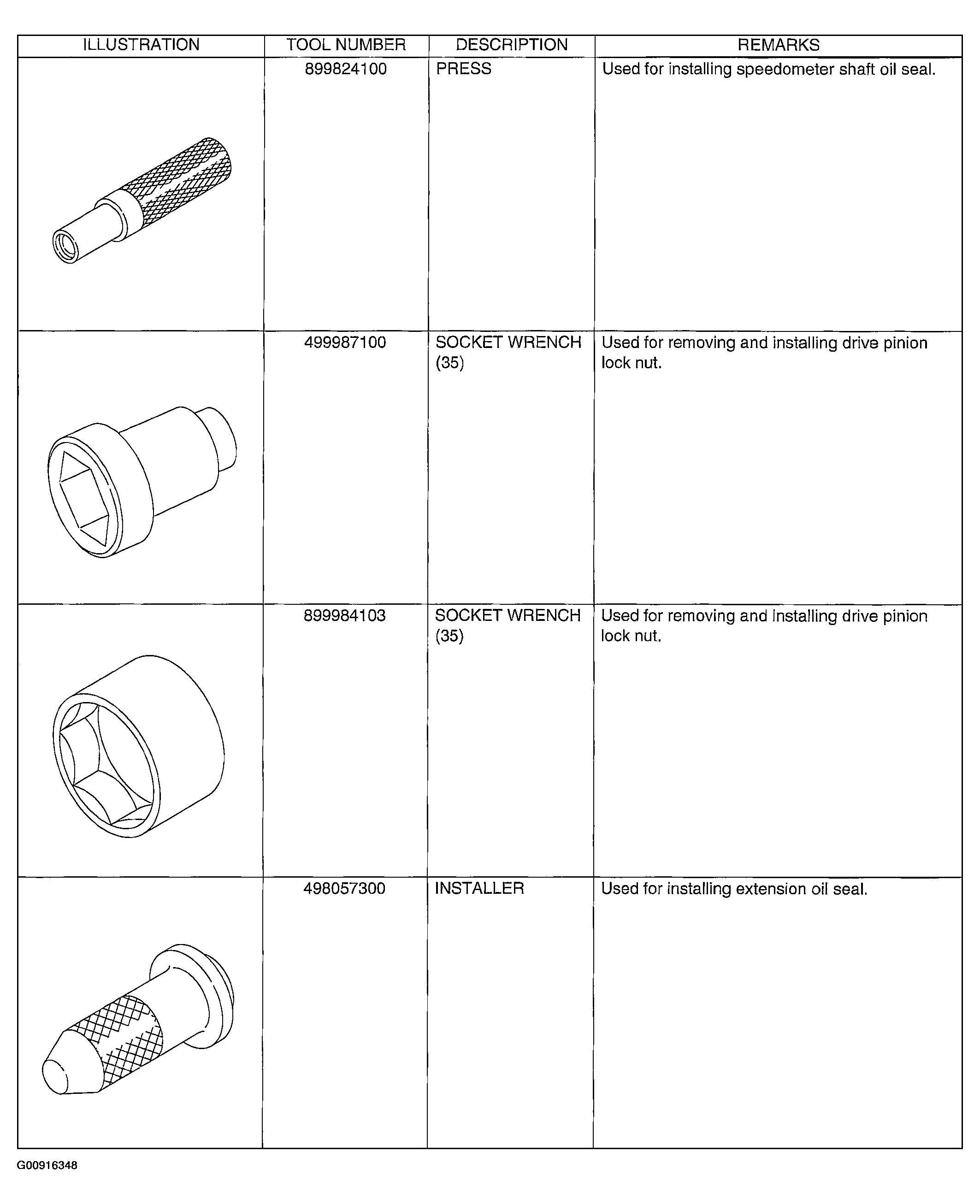

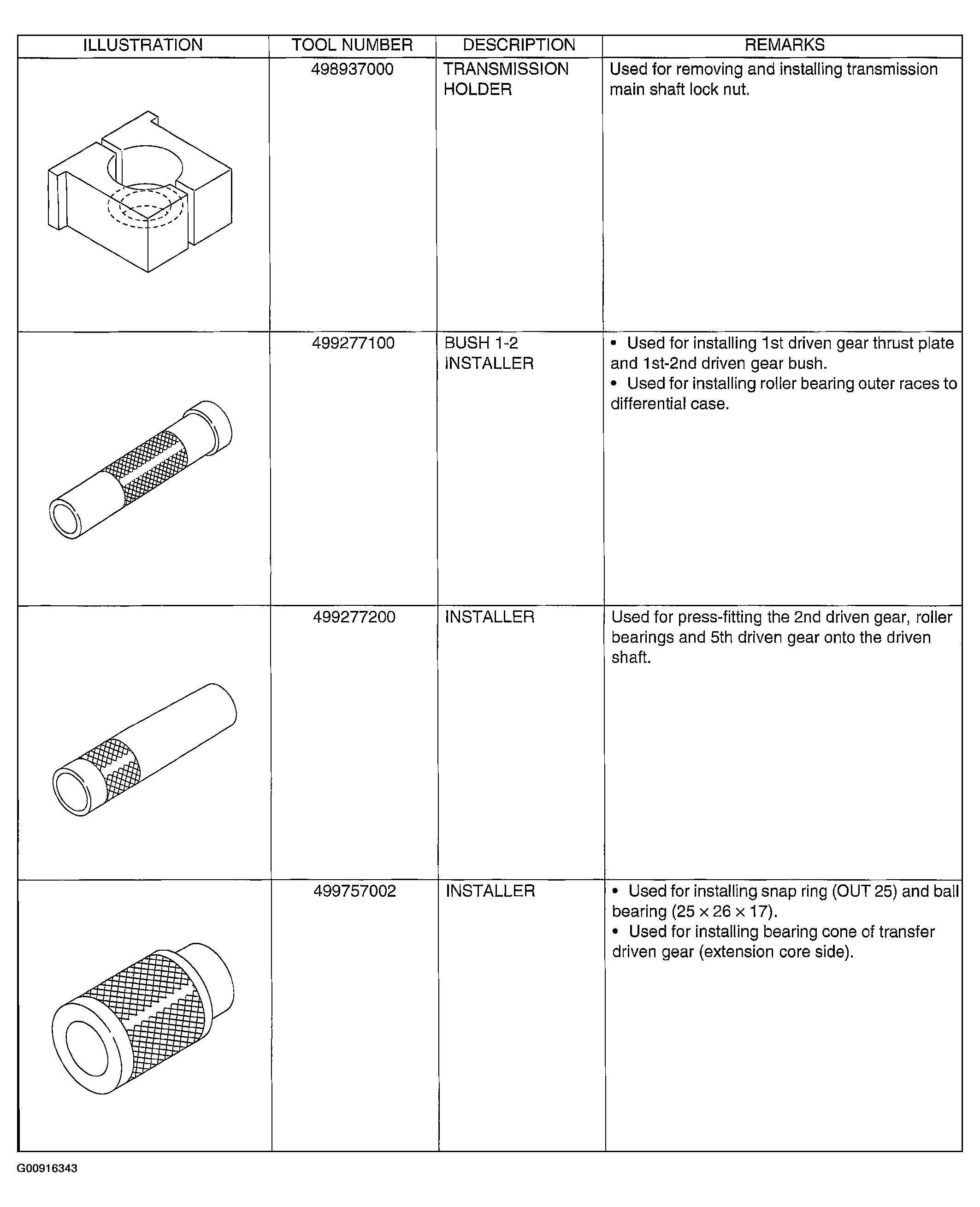

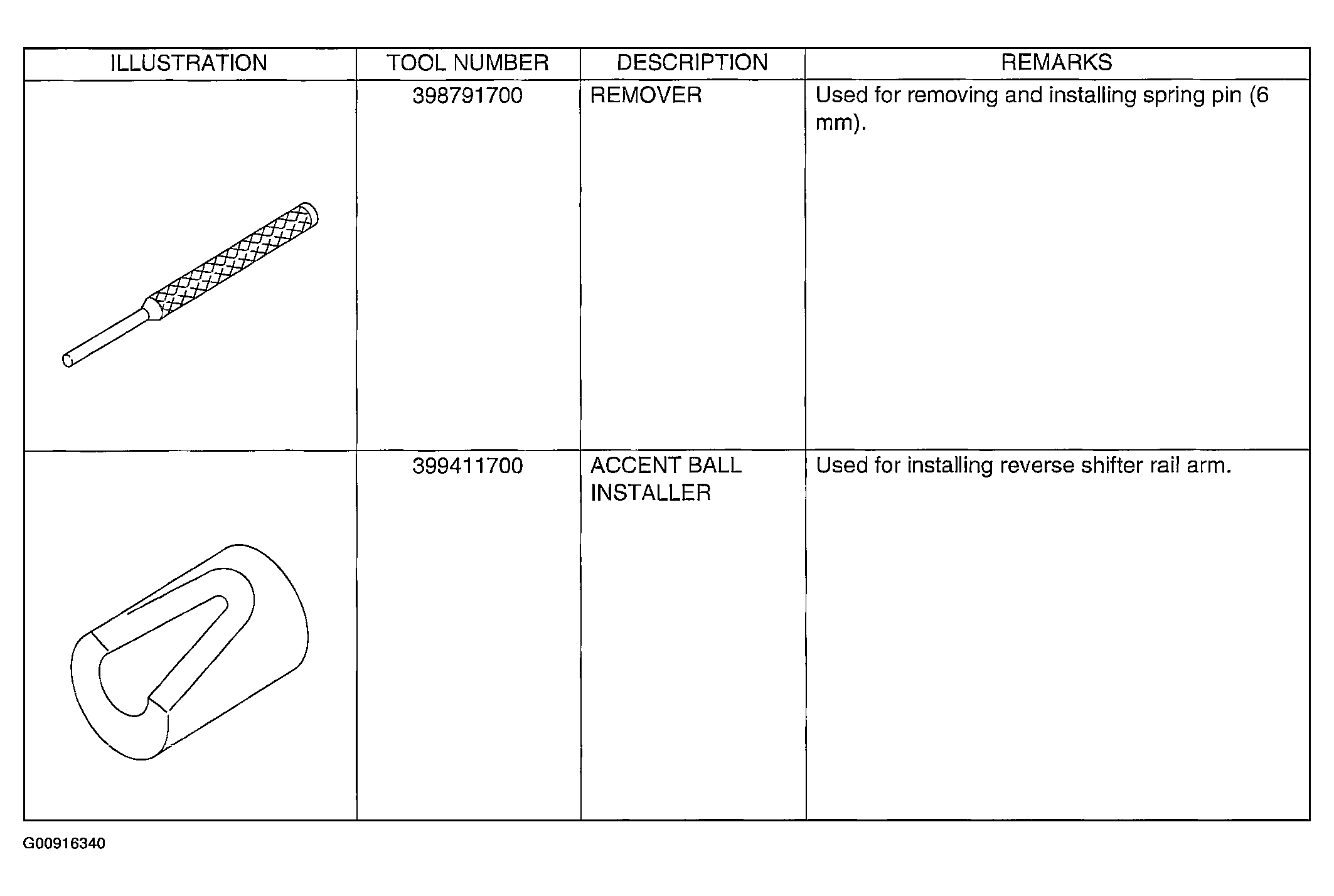

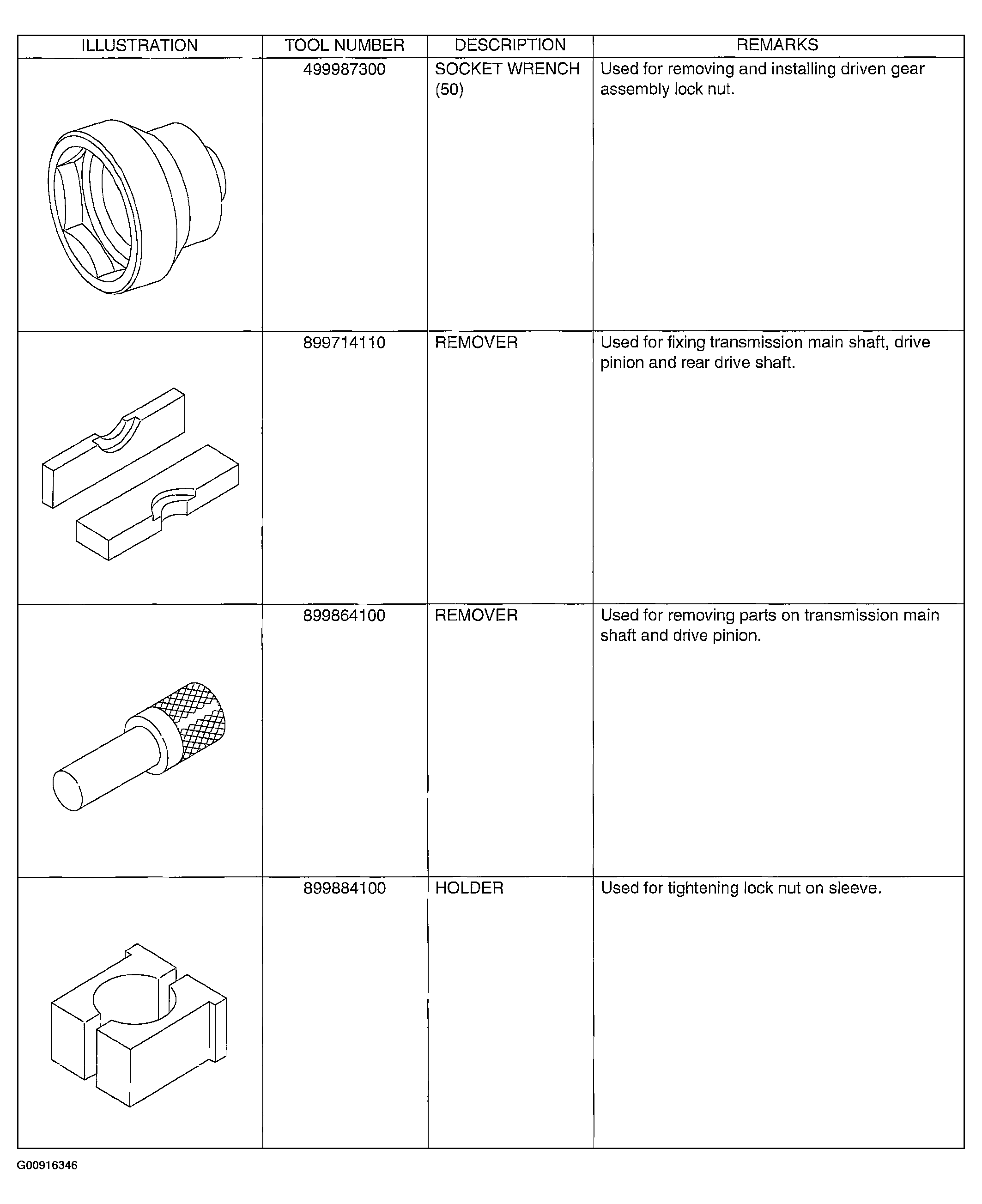

Fig 1: Identifying Special Tools (1 Of 12)
Courtesy of SUBARU OF AMERICA, INC.

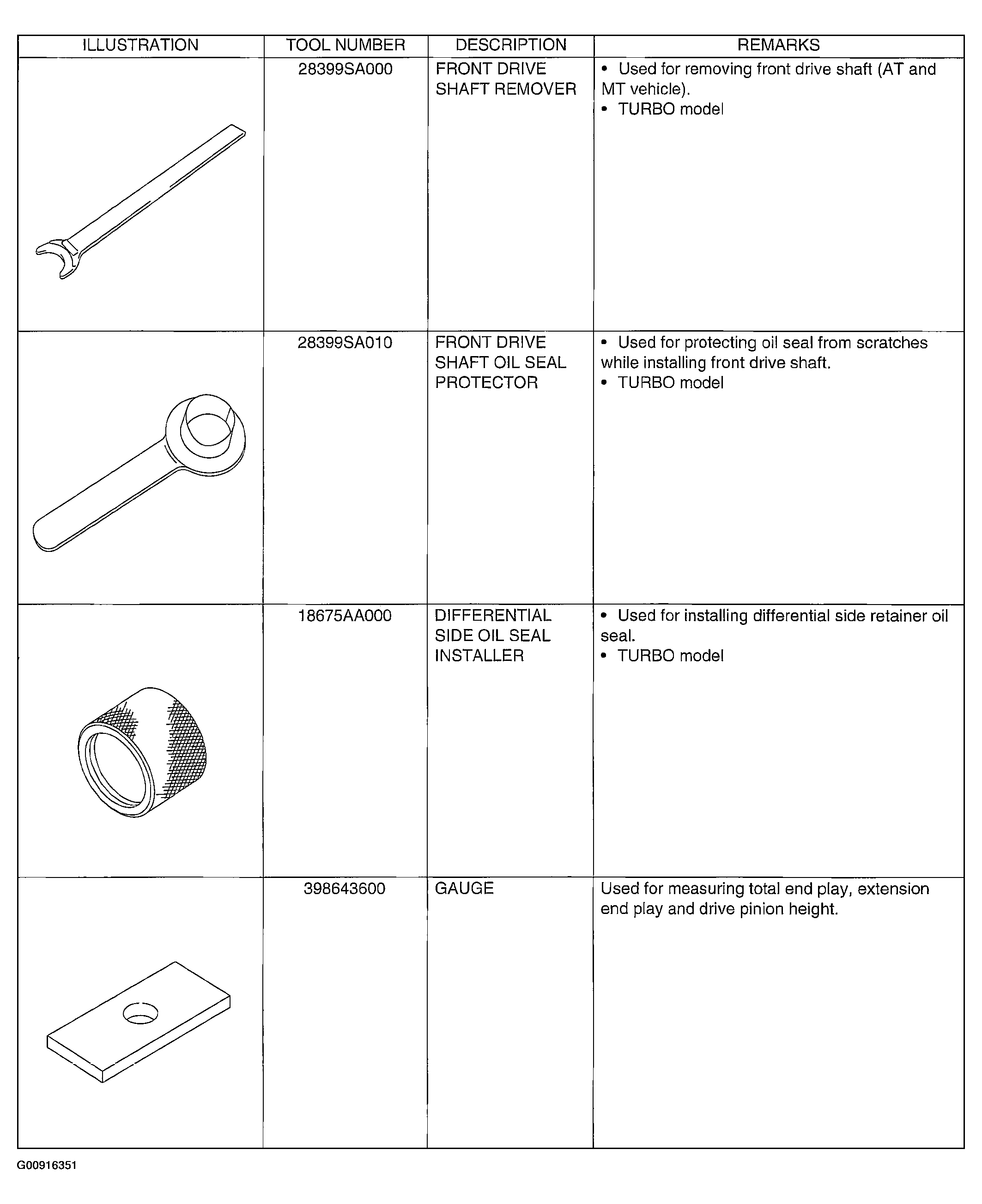

Fig 2: Identifying Special Tools (2 Of 12)
Courtesy of SUBARU OF AMERICA, INC.

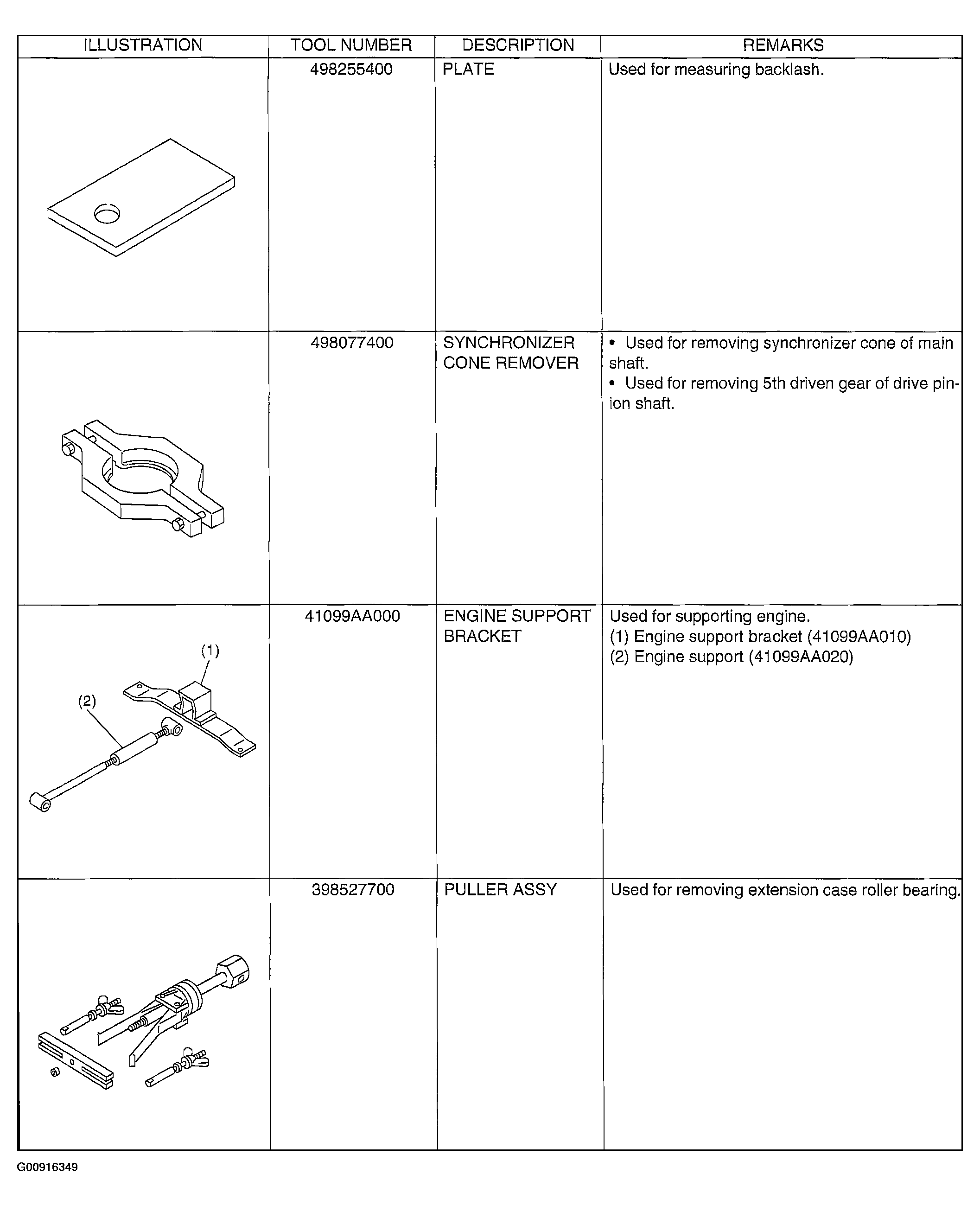

Fig 3: Identifying Special Tools (3 Of 12)
Courtesy of SUBARU OF AMERICA, INC.

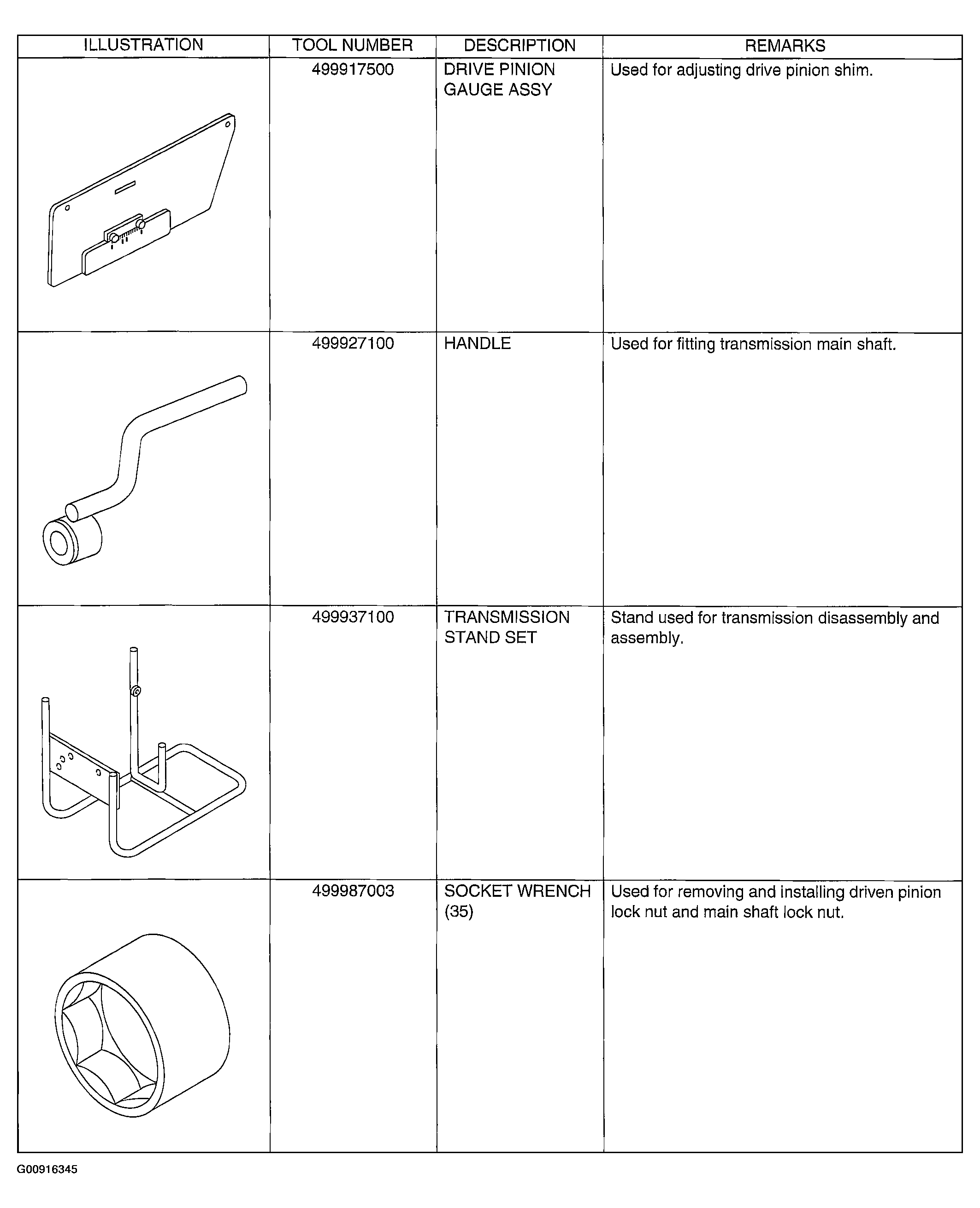

Fig 4: Identifying Special Tools (4 Of 12)
Courtesy of SUBARU OF AMERICA, INC.

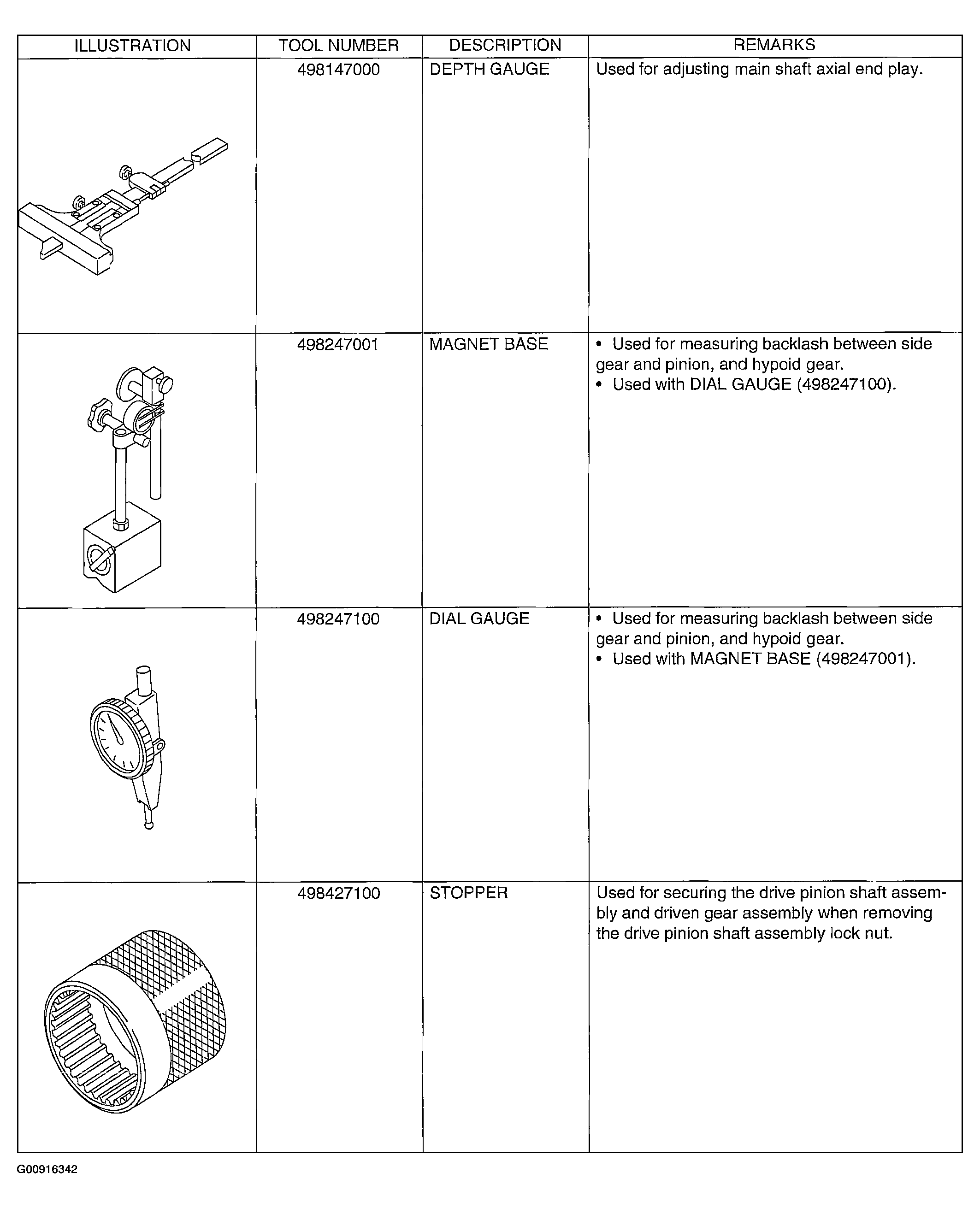

Fig 5: Identifying Special Tools (5 Of 12)
Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Identifying Special Tools (6 Of 12)
Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Identifying Special Tools (7 Of 12)
Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Identifying Special Tools (8 Of 12)
Courtesy of SUBARU OF AMERICA, INC.

Fig 9: Identifying Special Tools (9 Of 12)
Courtesy of SUBARU OF AMERICA, INC.

Fig 10: Identifying Special Tools (10 Of 12)
Courtesy of SUBARU OF AMERICA, INC.

Fig 11: Identifying Special Tools (11 Of 12)
Courtesy of SUBARU OF AMERICA, INC.

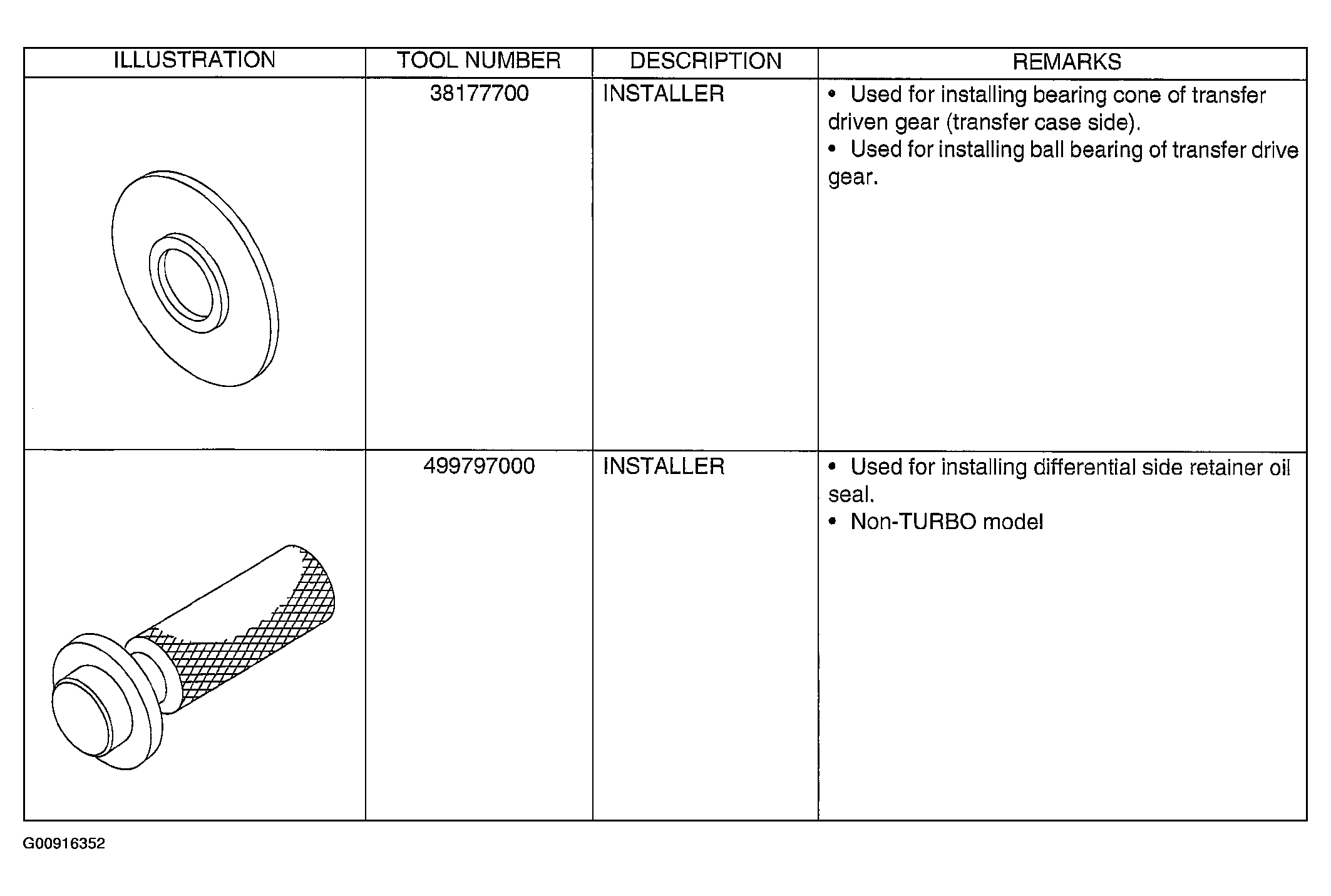

Fig 12: Identifying Special Tools (12 Of 12)

G00916352

Courtesy of SUBARU OF AMERICA, INC.

GENERAL PURPOSE TOOLS

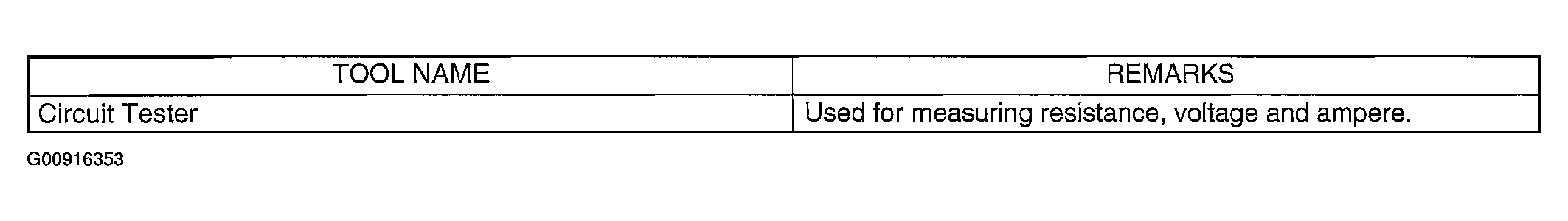

Fig 13: General Purpose Tools Chart
Courtesy of SUBARU OF AMERICA, INC.
