Section 17 (Manual Transmission And Differential): General Description: Component

WARNING: This page is about a different variant/trim than selected.

TRANSMISSION CASE

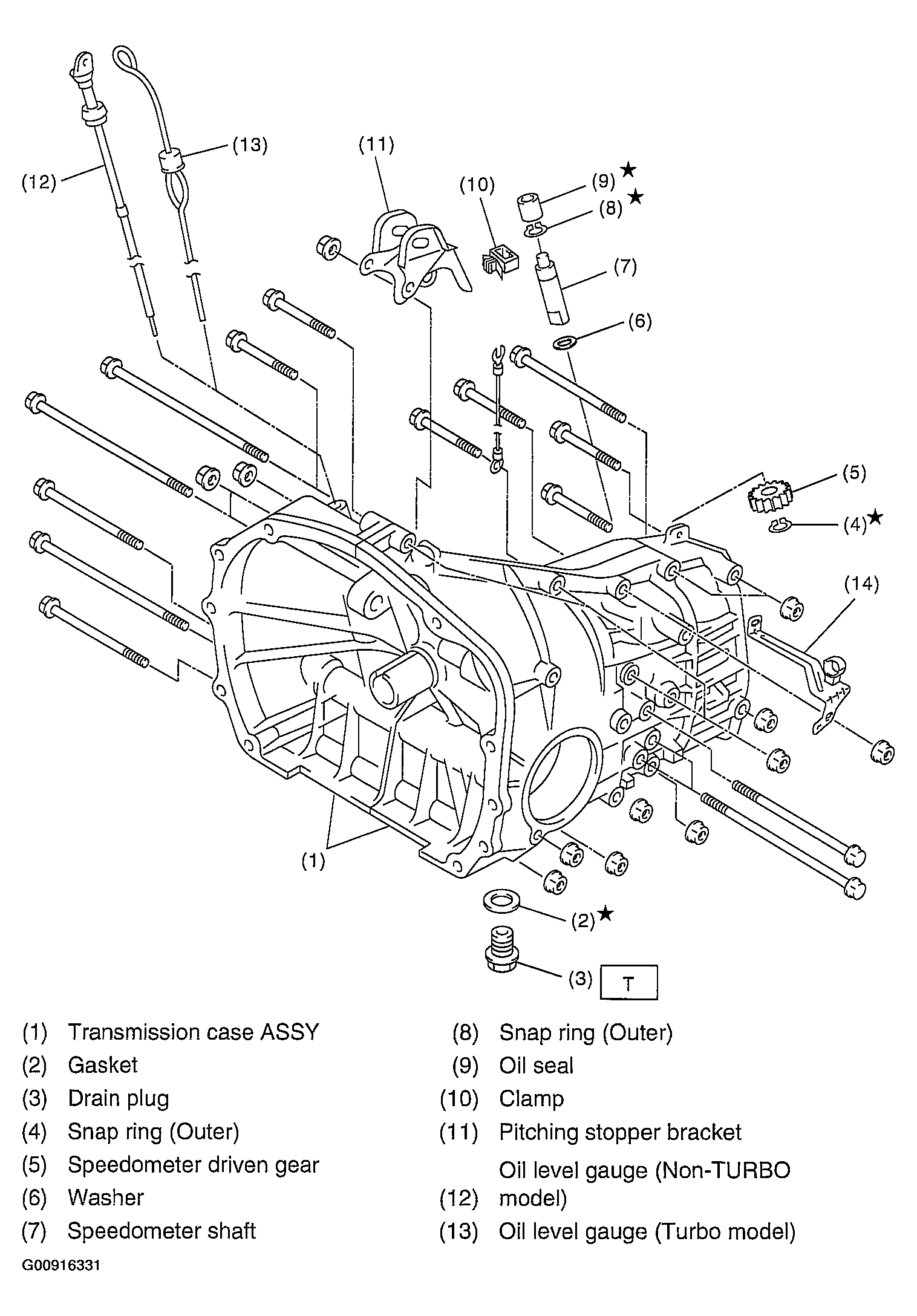

Fig 1: Identifying Transmission Case Components
Courtesy of SUBARU OF AMERICA, INC.
- Transmission case tightening torque

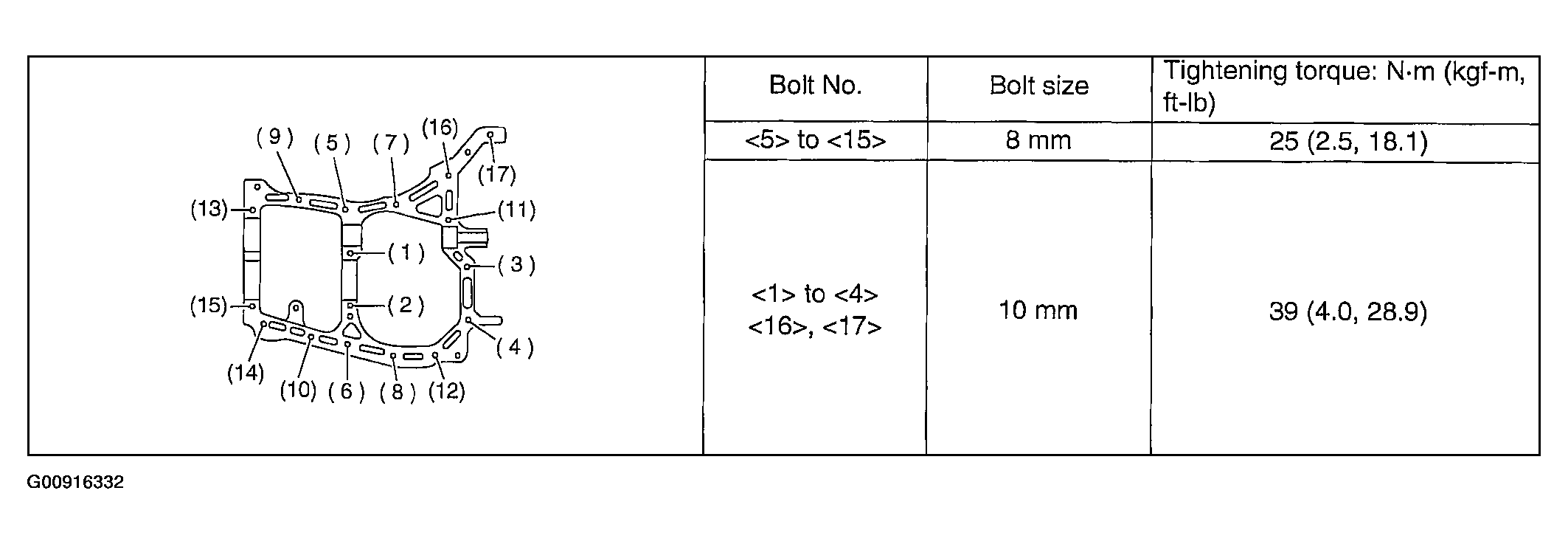

Fig 2: Transmission Case Tightening Torque Chart
Courtesy of SUBARU OF AMERICA, INC.
DRIVE PINION ASSEMBLY

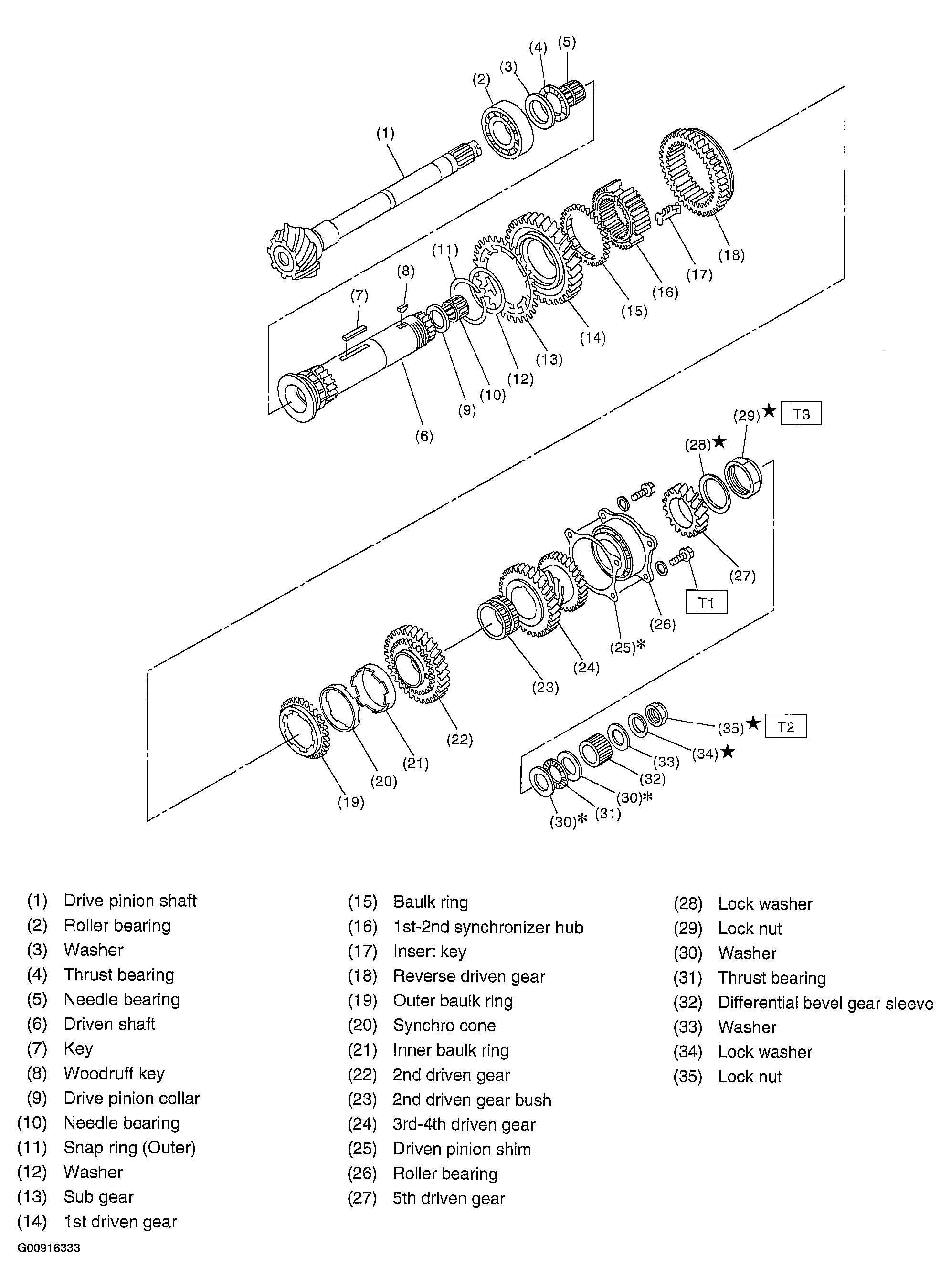

Fig 3: Identifying Drive Pinion Assembly
Courtesy of SUBARU OF AMERICA, INC.
MAIN SHAFT ASSEMBLY

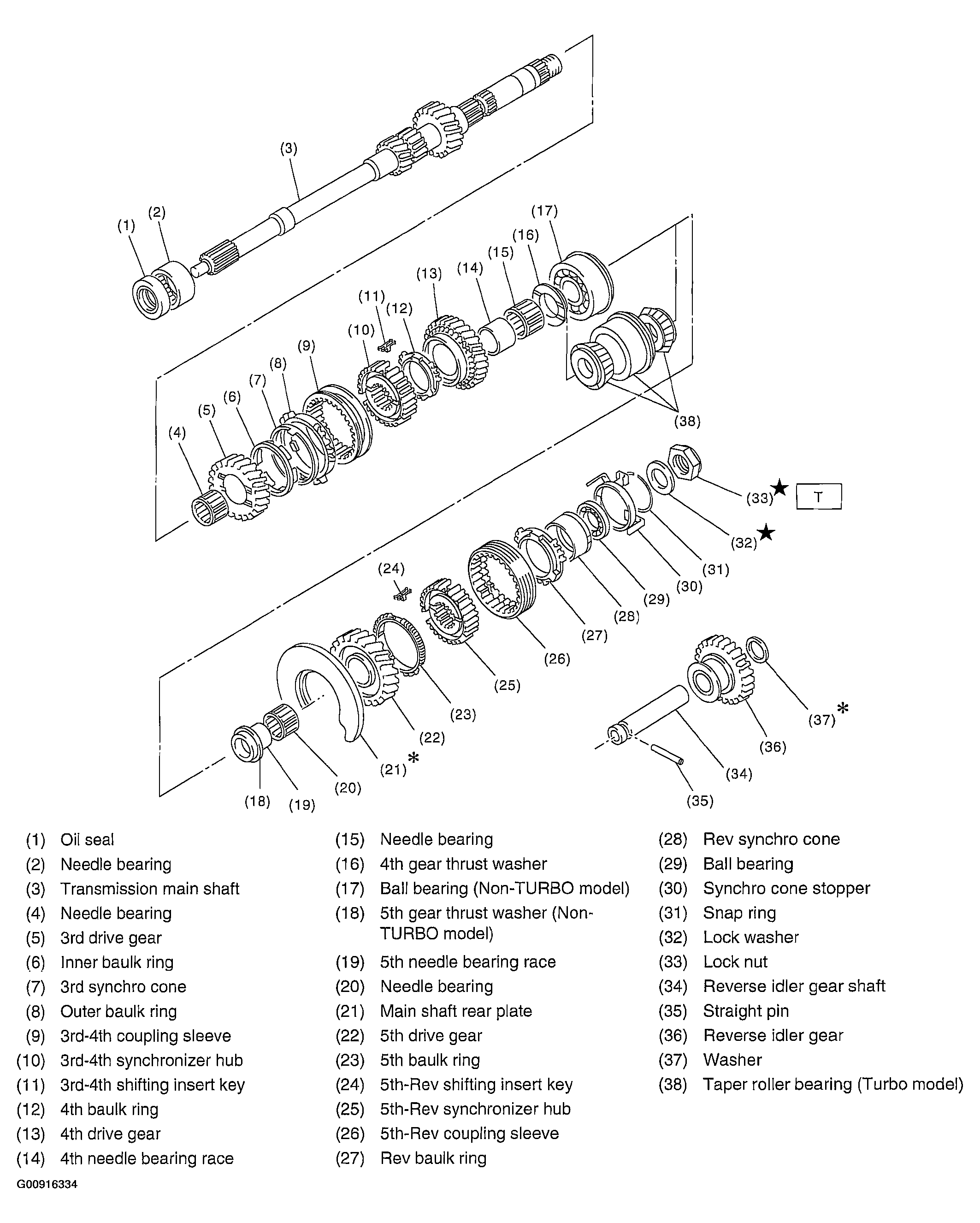

Fig 4: Identifying Main Shaft Assembly
Courtesy of SUBARU OF AMERICA, INC.
SHIFTER FORK AND SHIFTER ROD

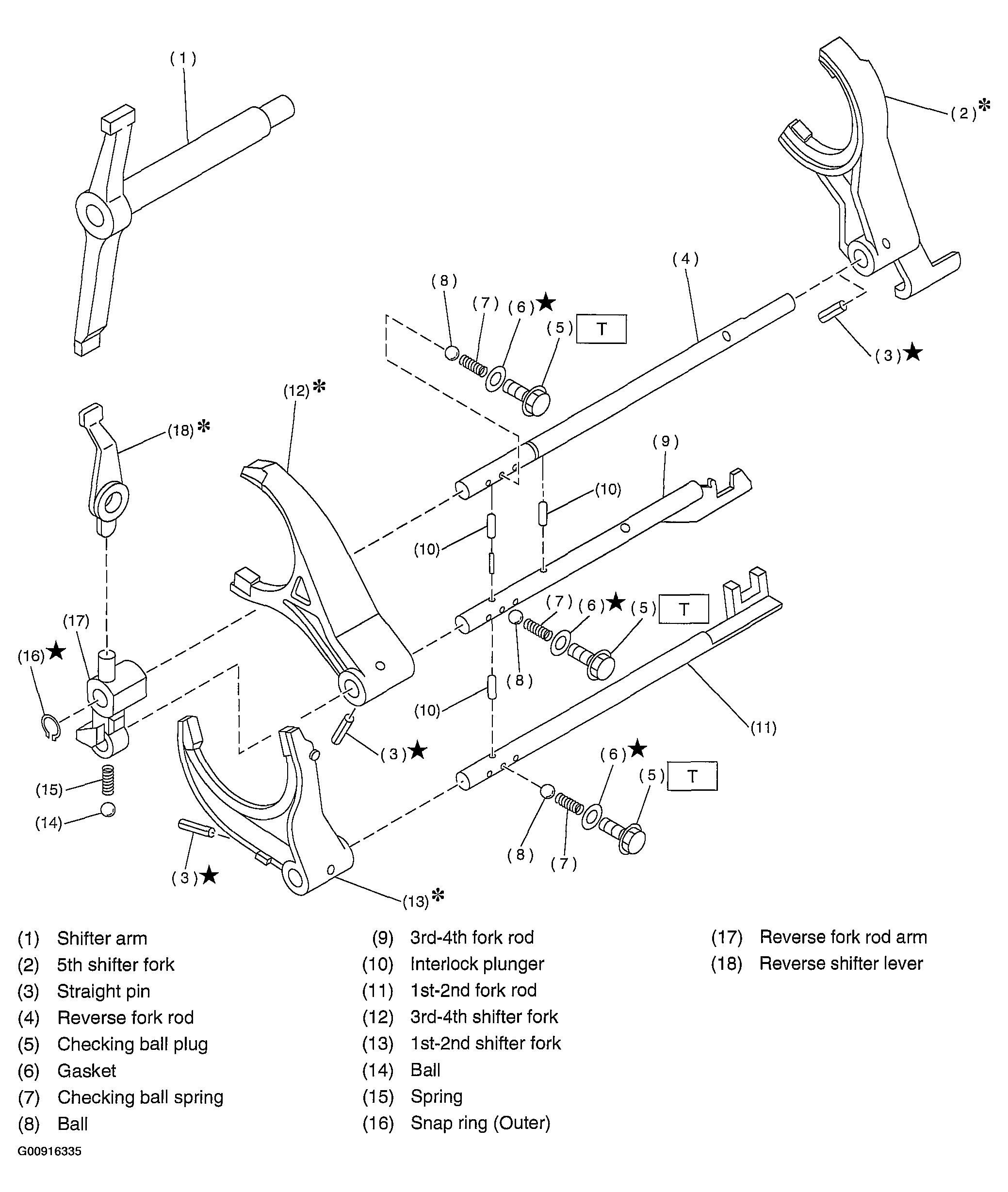

Fig 5: Identifying Shifter Fork & Shifter Rod
Courtesy of SUBARU OF AMERICA, INC.
TRANSFER CASE AND EXTENSION

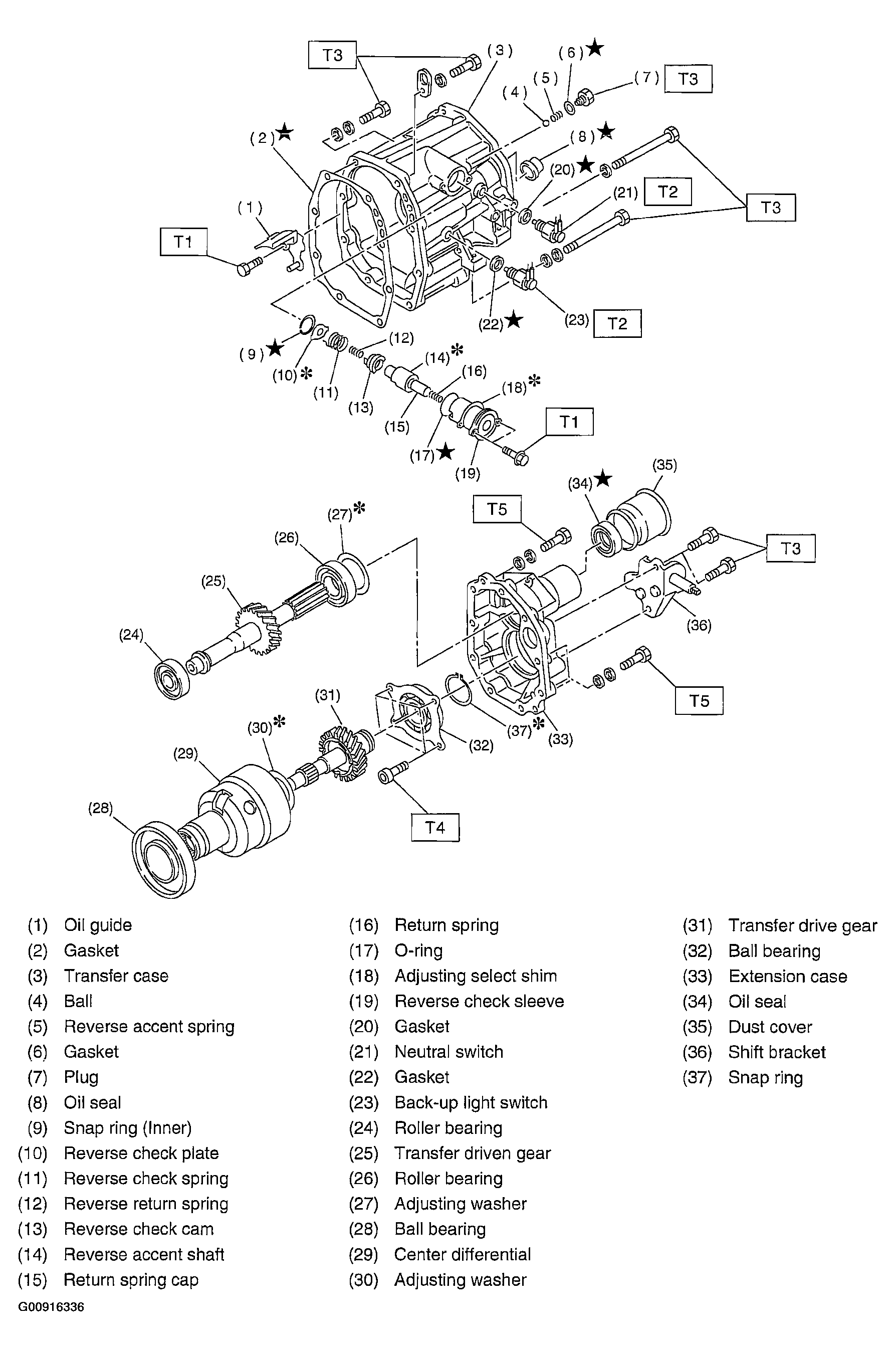

Fig 6: Identifying Transfer Case & Extension
Courtesy of SUBARU OF AMERICA, INC.
FRONT DIFFERENTIAL

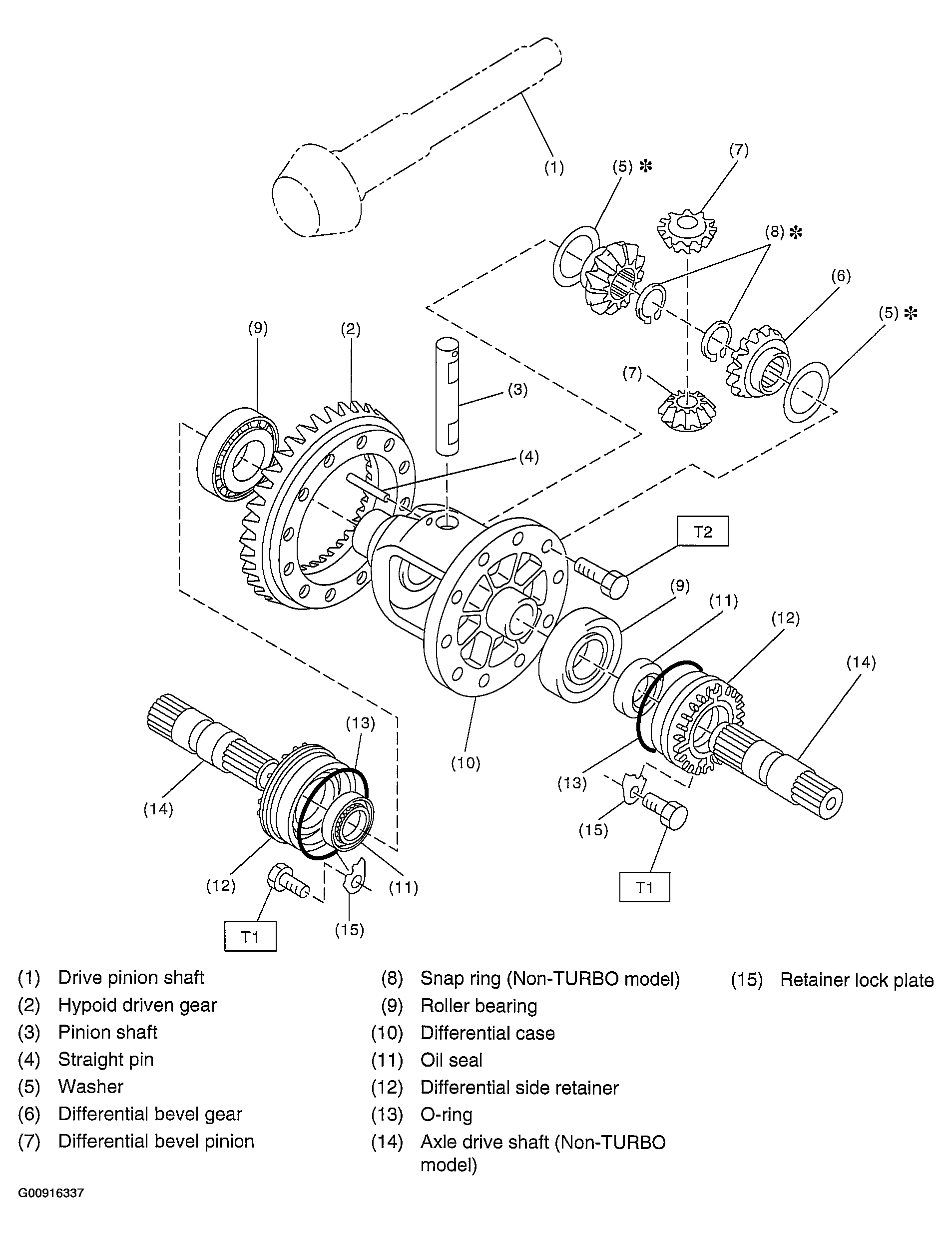

Fig 7: Identifying Front Differential
Courtesy of SUBARU OF AMERICA, INC.
TRANSMISSION MOUNTING
- Except U5 model

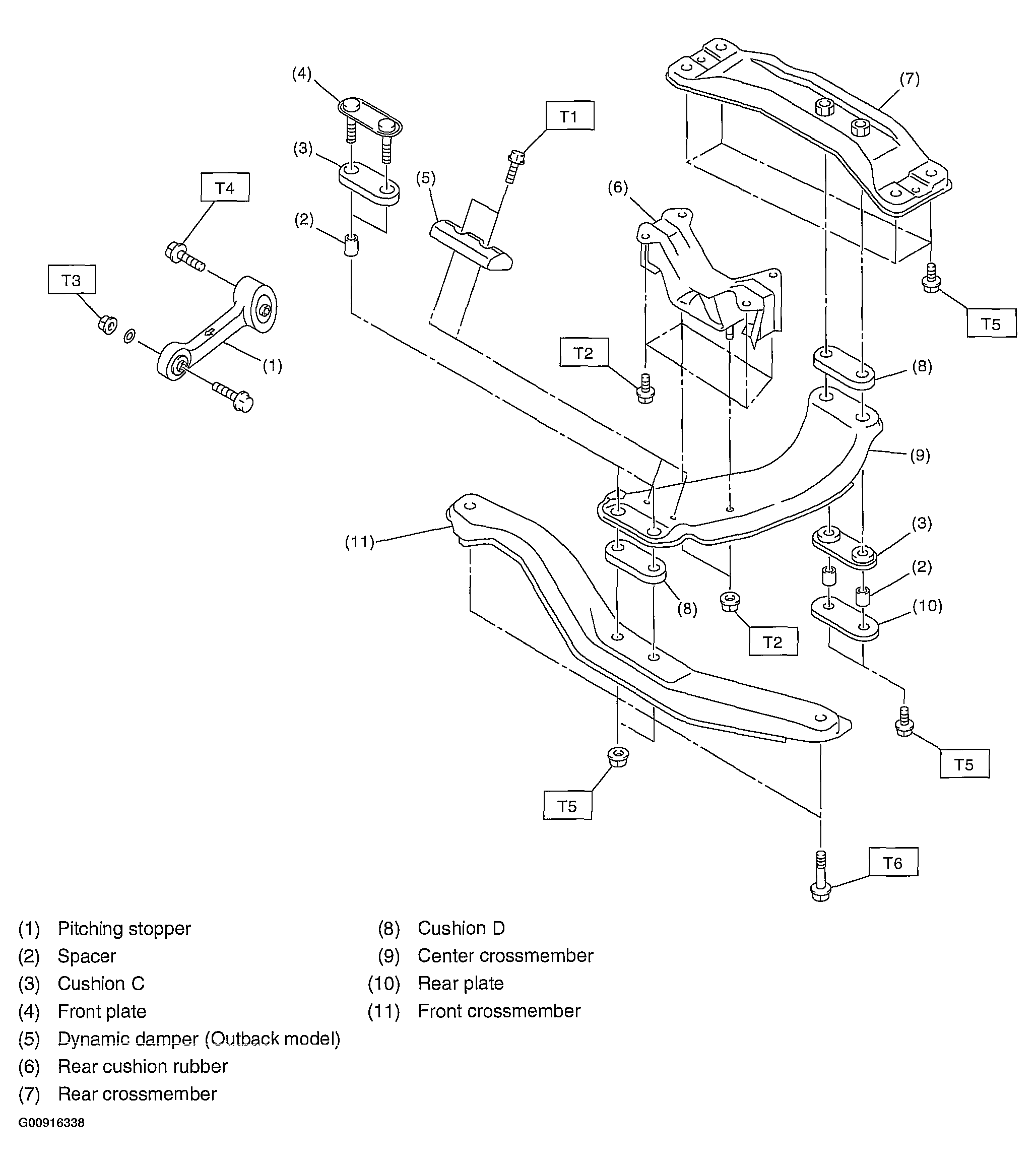

Fig 8: Identifying Transmission Mounting
Courtesy of SUBARU OF AMERICA, INC.
- U5 model

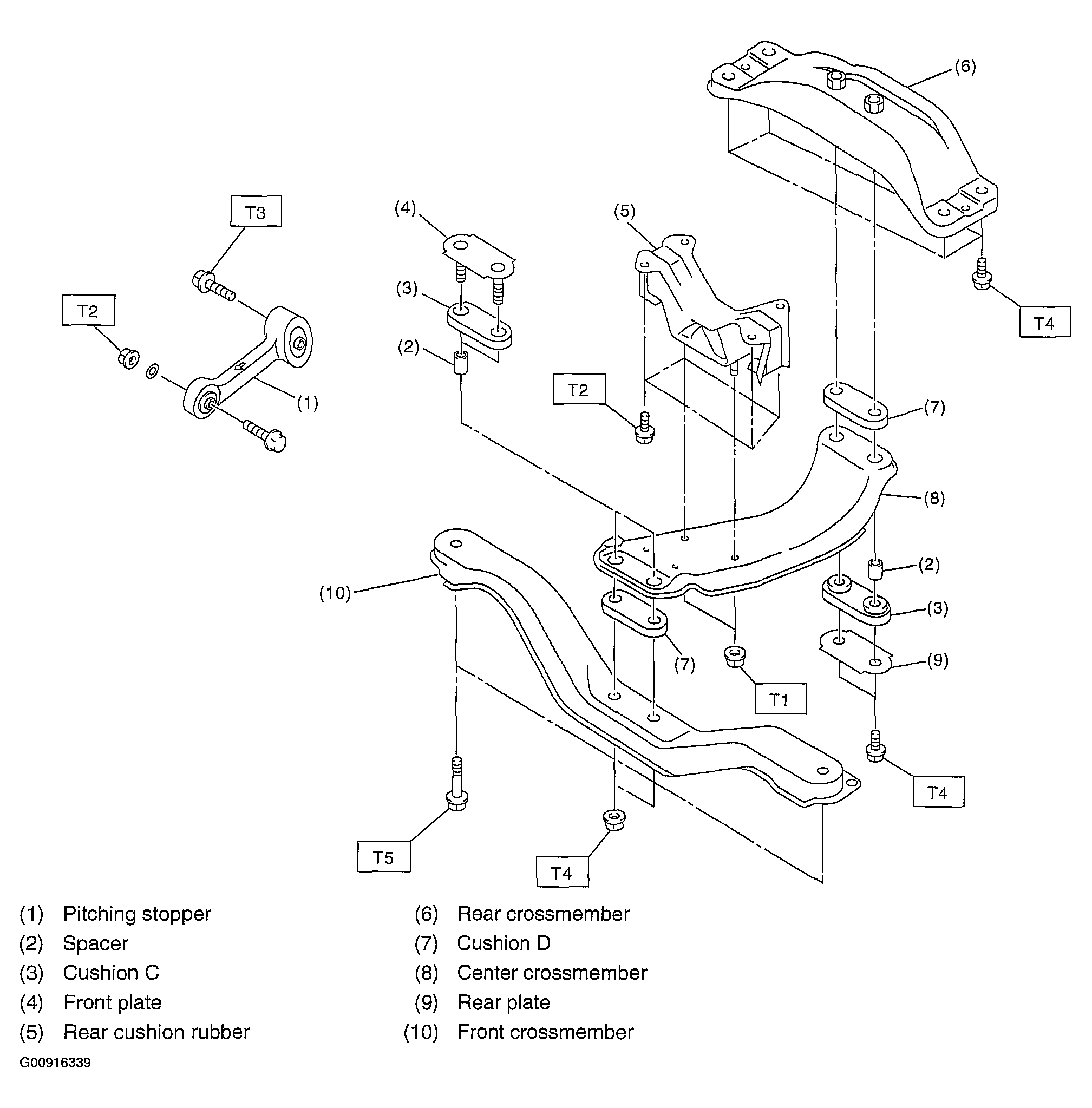

Fig 9: Identifying Transmission Mounting (U5 Model)
Courtesy of SUBARU OF AMERICA, INC.
