Crankcase Emission Control System

The positive crankcase ventilation (PCV) system prevents air pollution which will be caused by blow-by gas being emitted from the crankcase.

The system consists of rocker covers with fresh air inlet, connecting hoses, a PCV valve and a chamber.

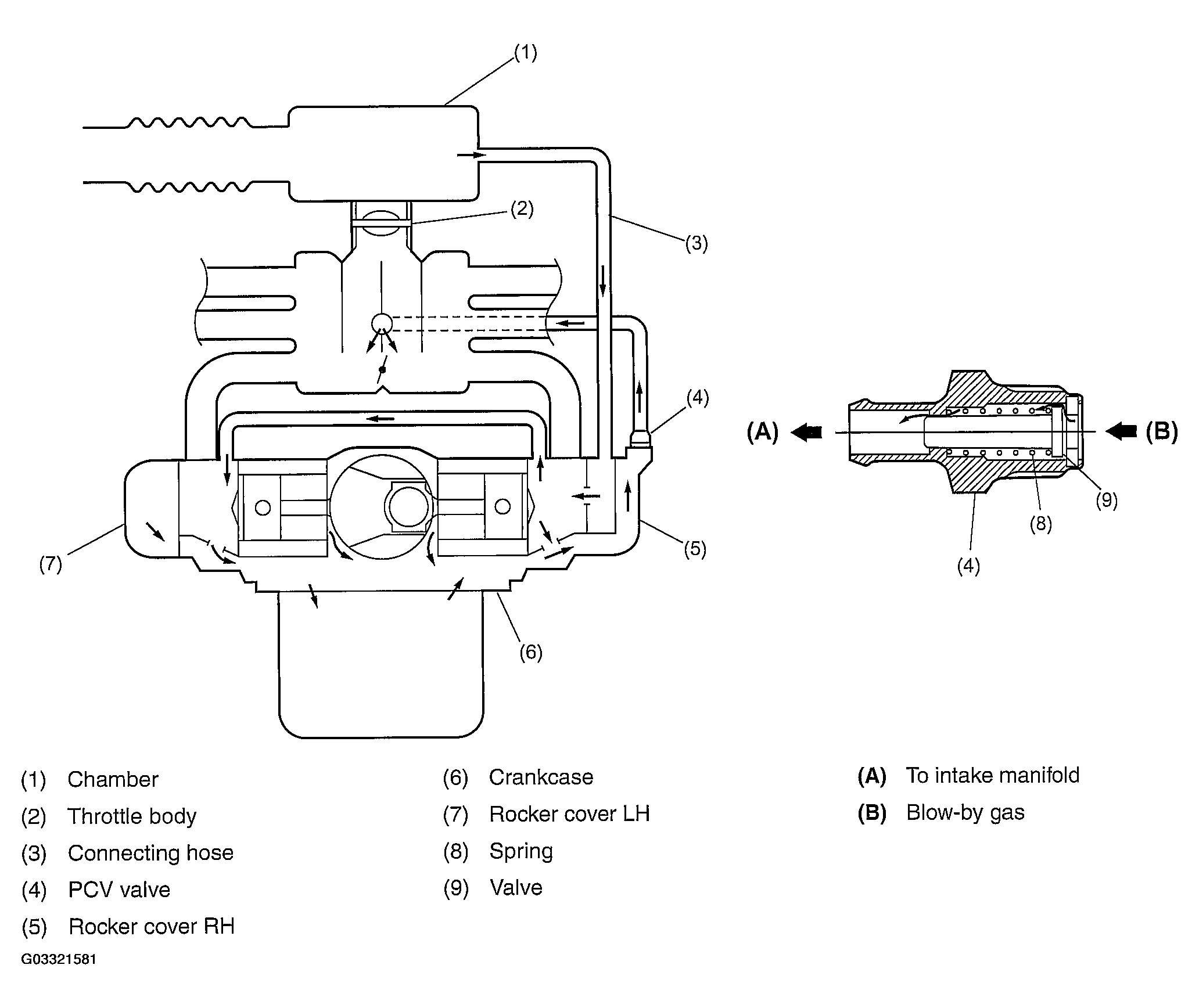

Fig 1: Identifying Crankcase Emission Control System Component
G03321581Courtesy of SUBARU OF AMERICA, INC.
