Anti-Lock Brake Control System - Vehicle Dynamics Control (VDC)
>>
Yaw Rate and Lateral G Sensor
>>
Inspection
>>
Lateral G Sensor Signal
Lateral G Sensor Signal

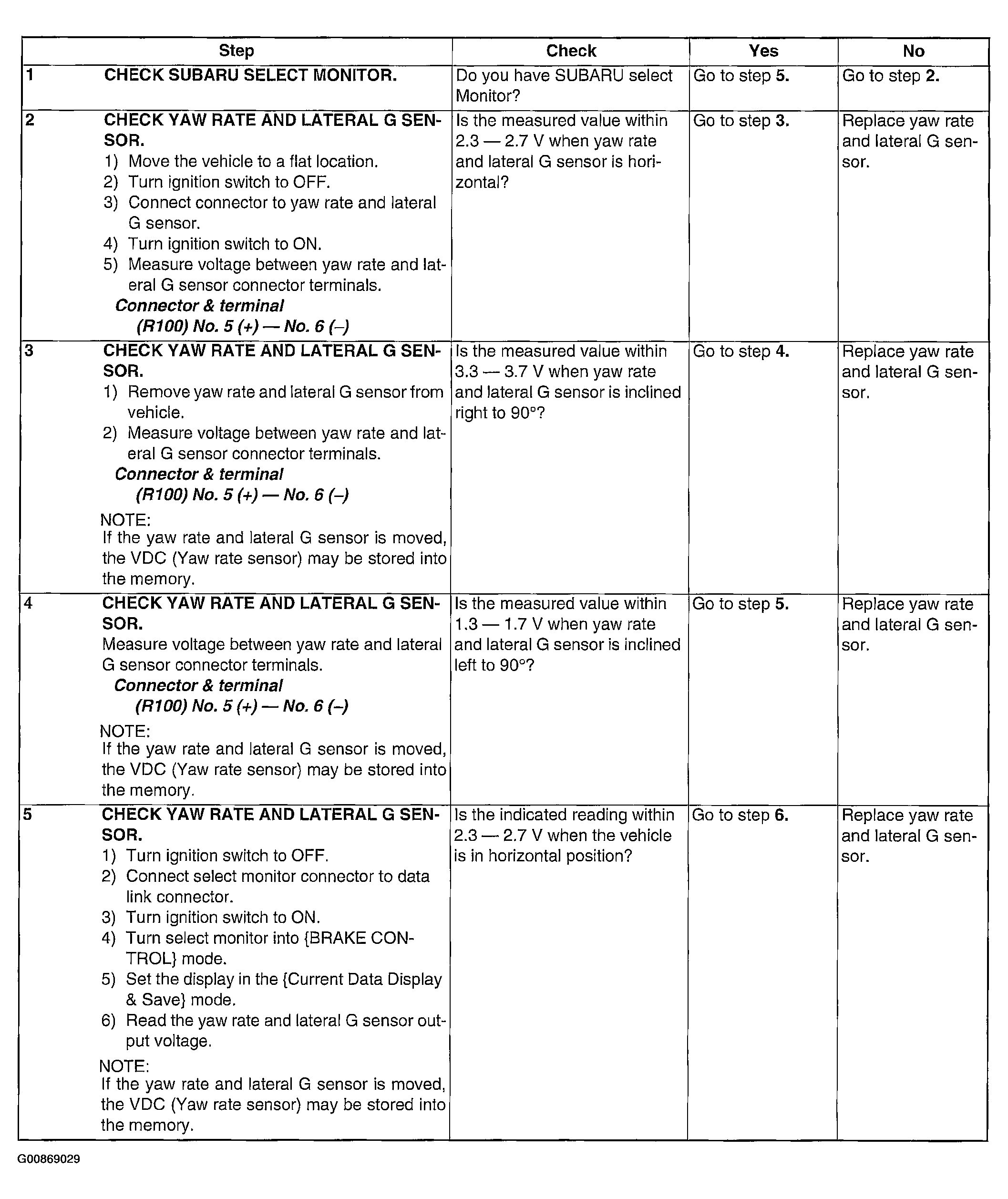

Fig 1: Lateral G Sensor Signal Inspection Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

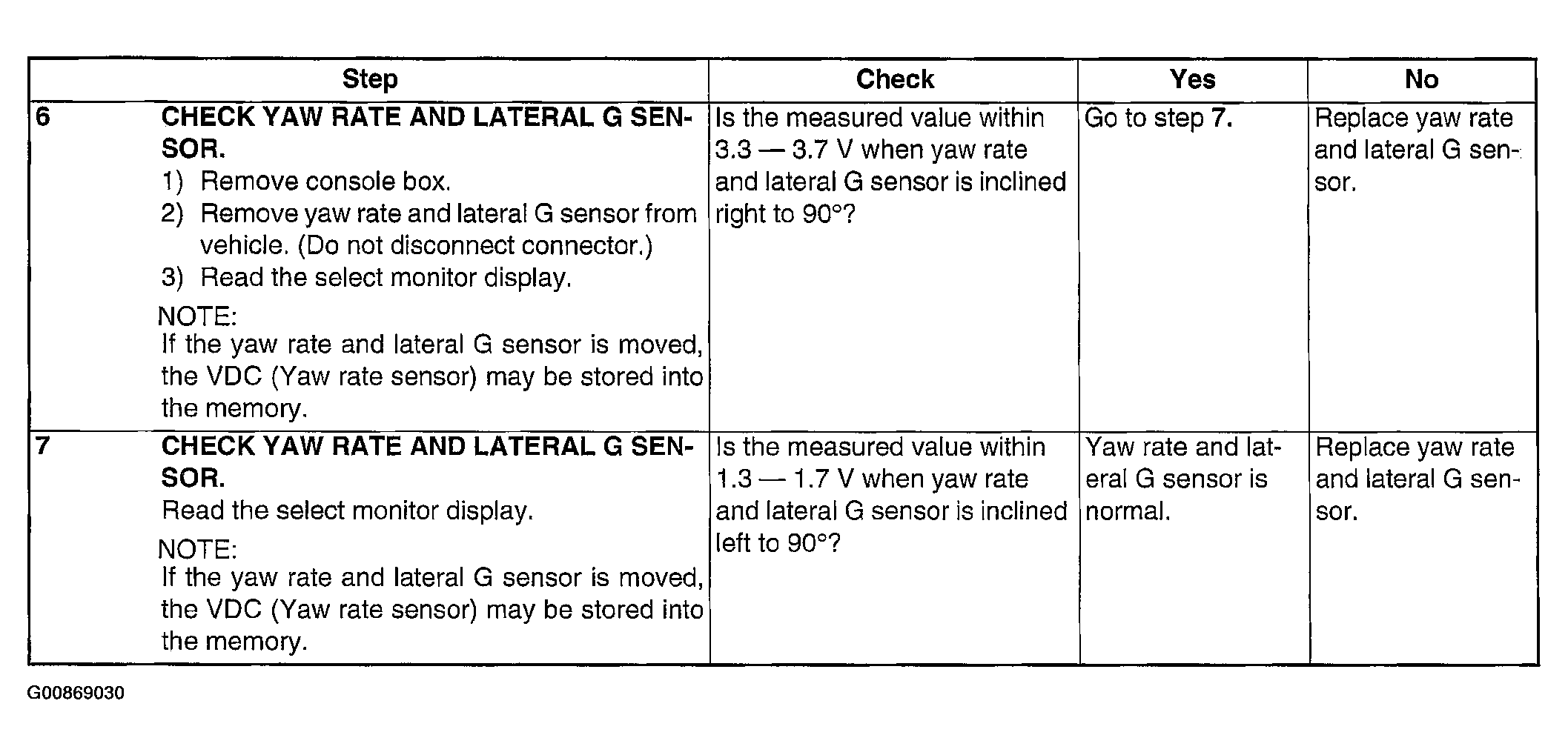

Fig 2: Lateral G Sensor Signal Inspection Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
