Anti-Lock Brake Control System - Vehicle Dynamics Control (VDC) (Diagnostics)
>>
General Diagnostic Table
>>
Inspection
General Diagnostic Table: Inspection

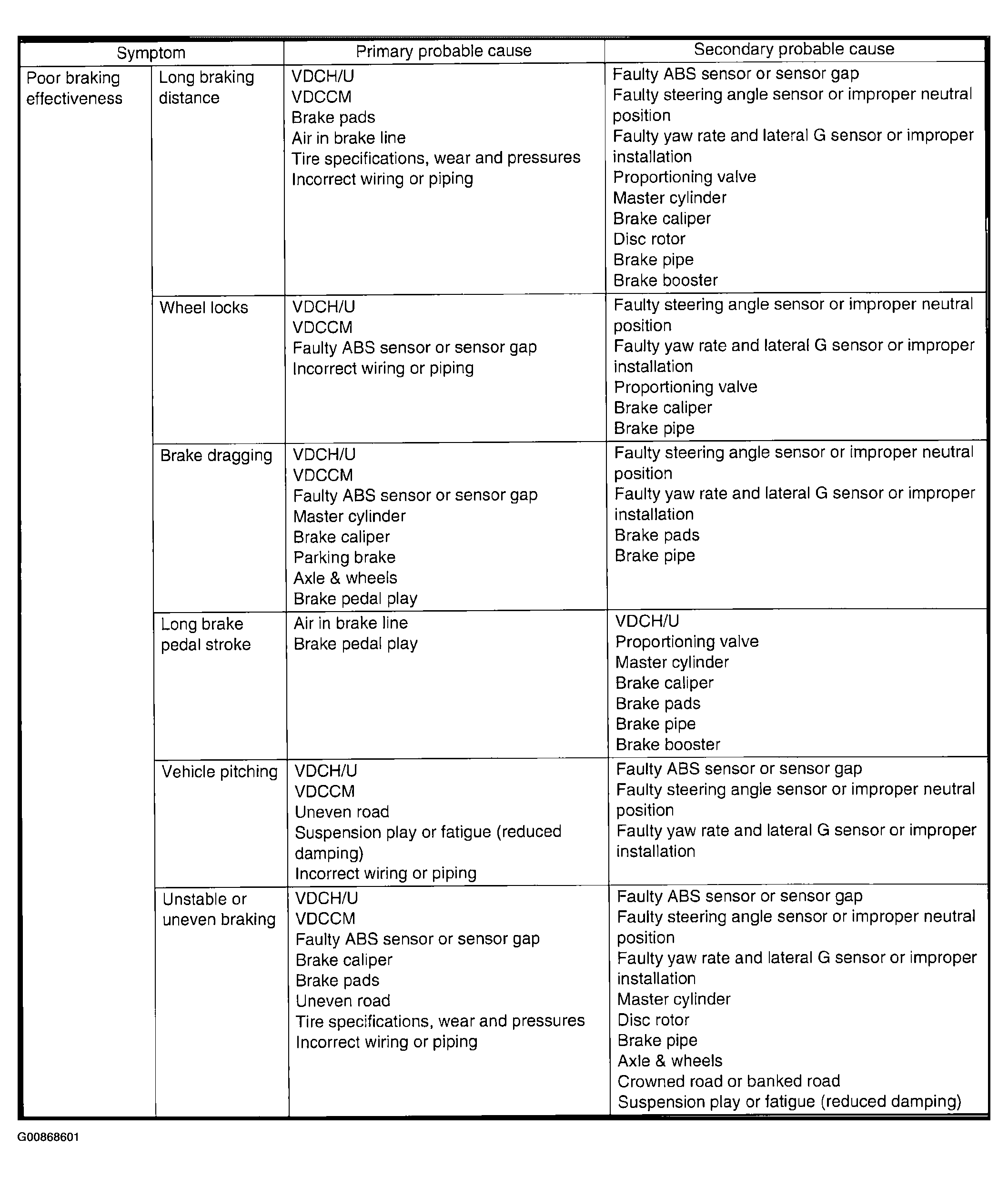

Fig 1: General Diagnostic Inspection Diagnostic Chart (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

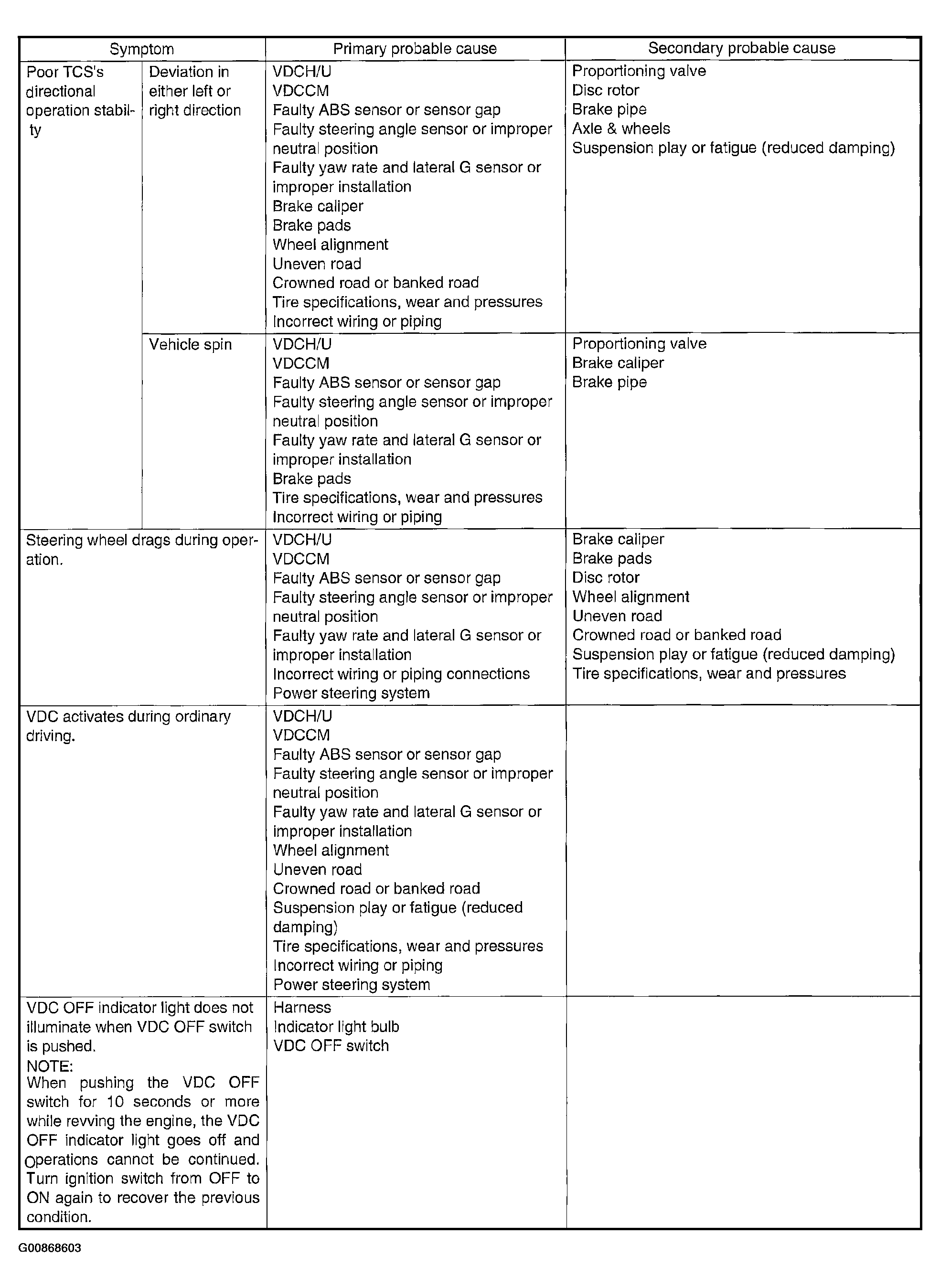

Fig 2: General Diagnostic Inspection Diagnostic Chart (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

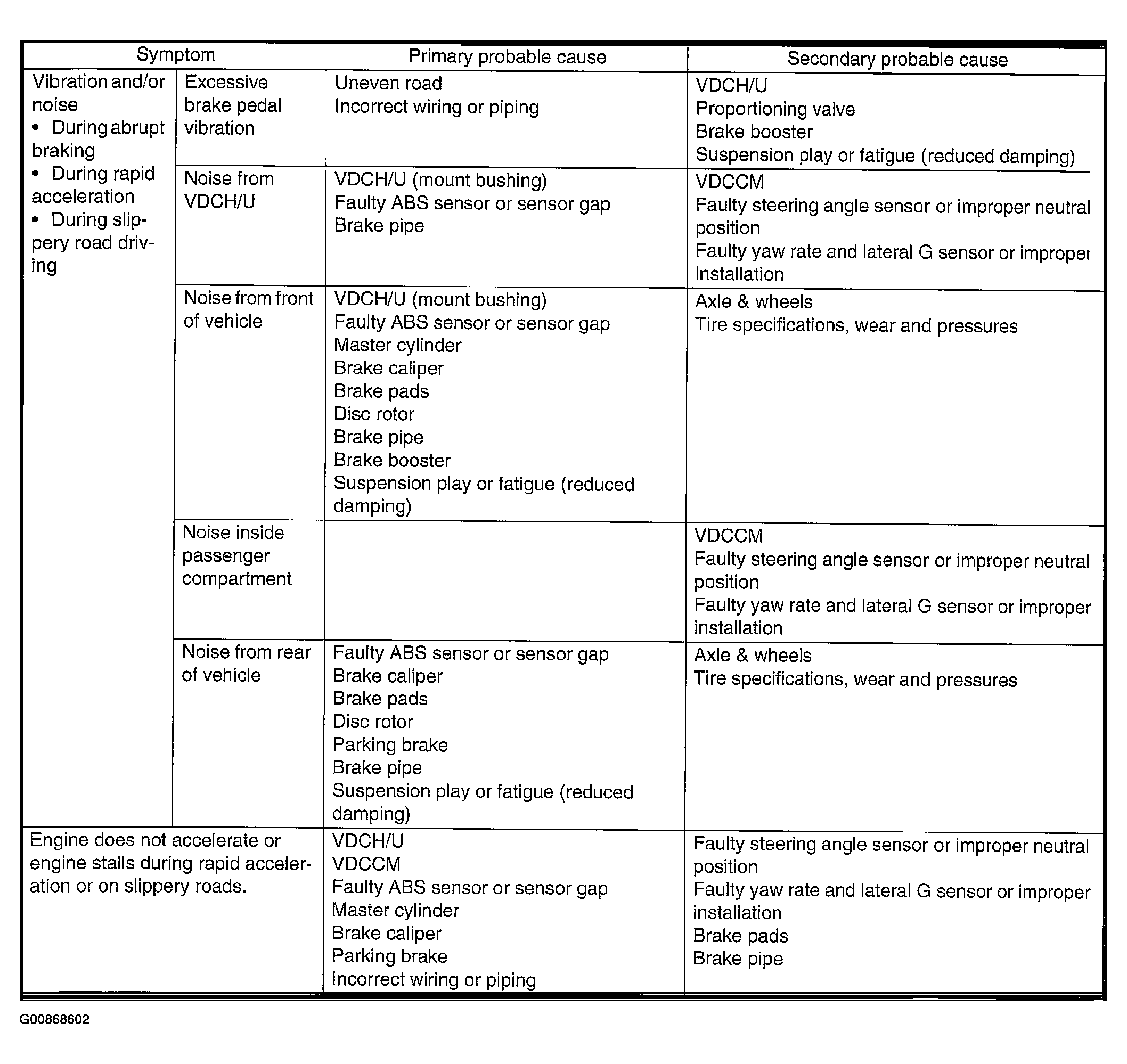

Fig 3: General Diagnostic Inspection Diagnostic Chart (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
