Communication For Initializing Impossible (Select Monitor Communication Failure): Wiring Diagram

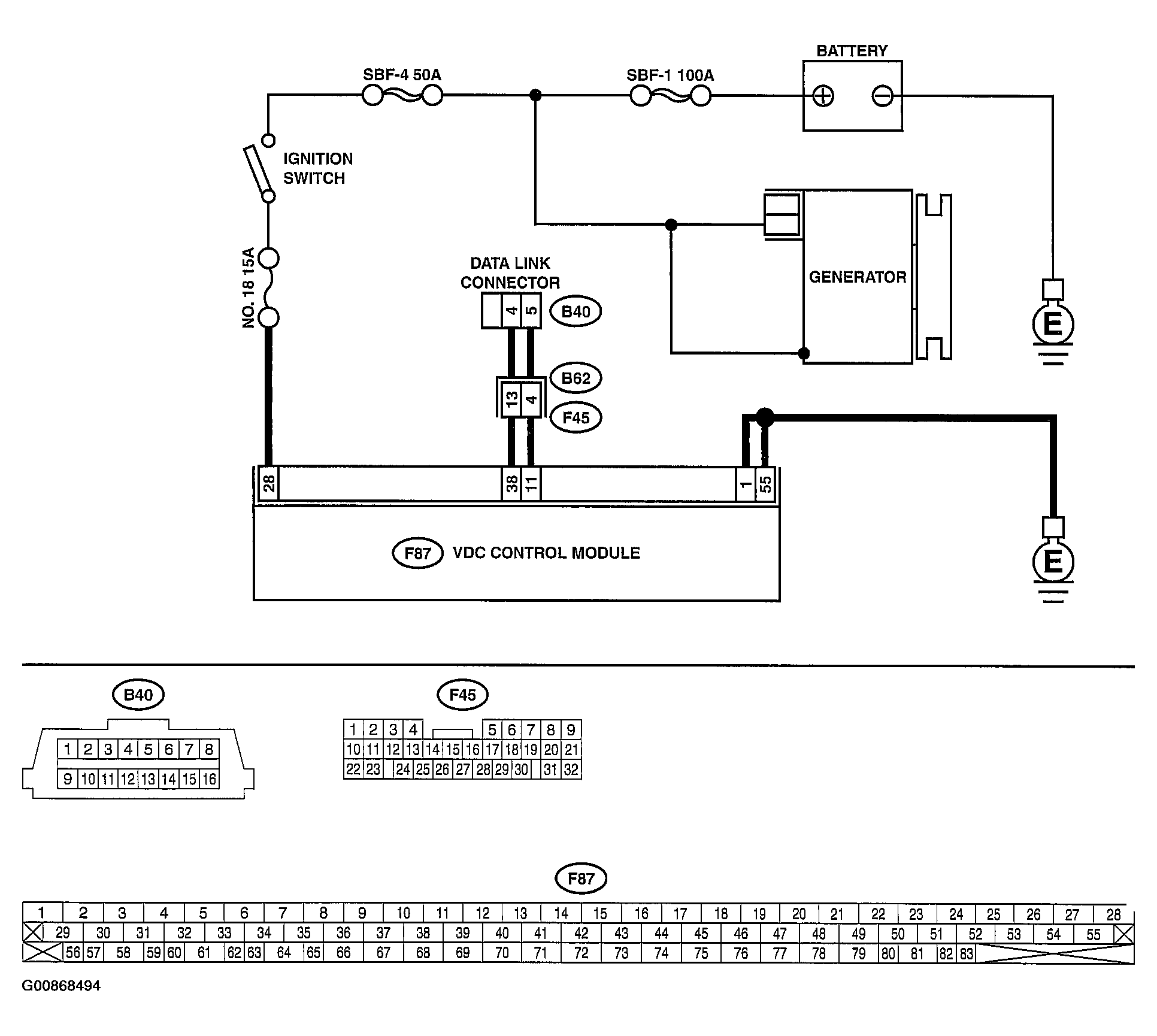

Fig 1: Communication For Initializing Impossible (Select Monitor Communication Failure) Wiring Diagram
G00868494Courtesy of SUBARU OF AMERICA, INC.
