Diagnostic Charts

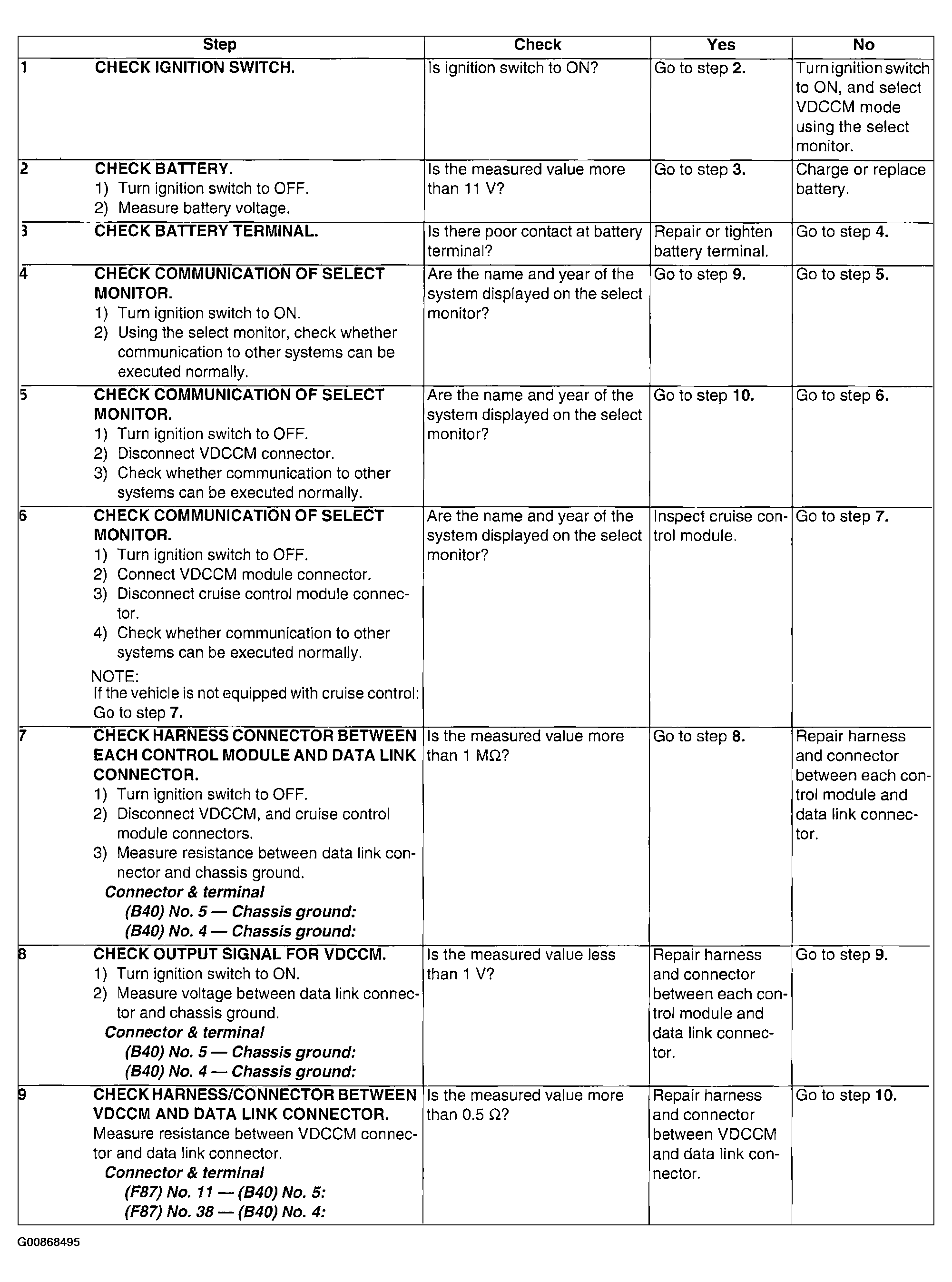

Fig 1: Communication For Initializing Impossible (Select Monitor Communication Failure) Diagnostic Chart (1 Of 2)
G00868495Courtesy of SUBARU OF AMERICA, INC.

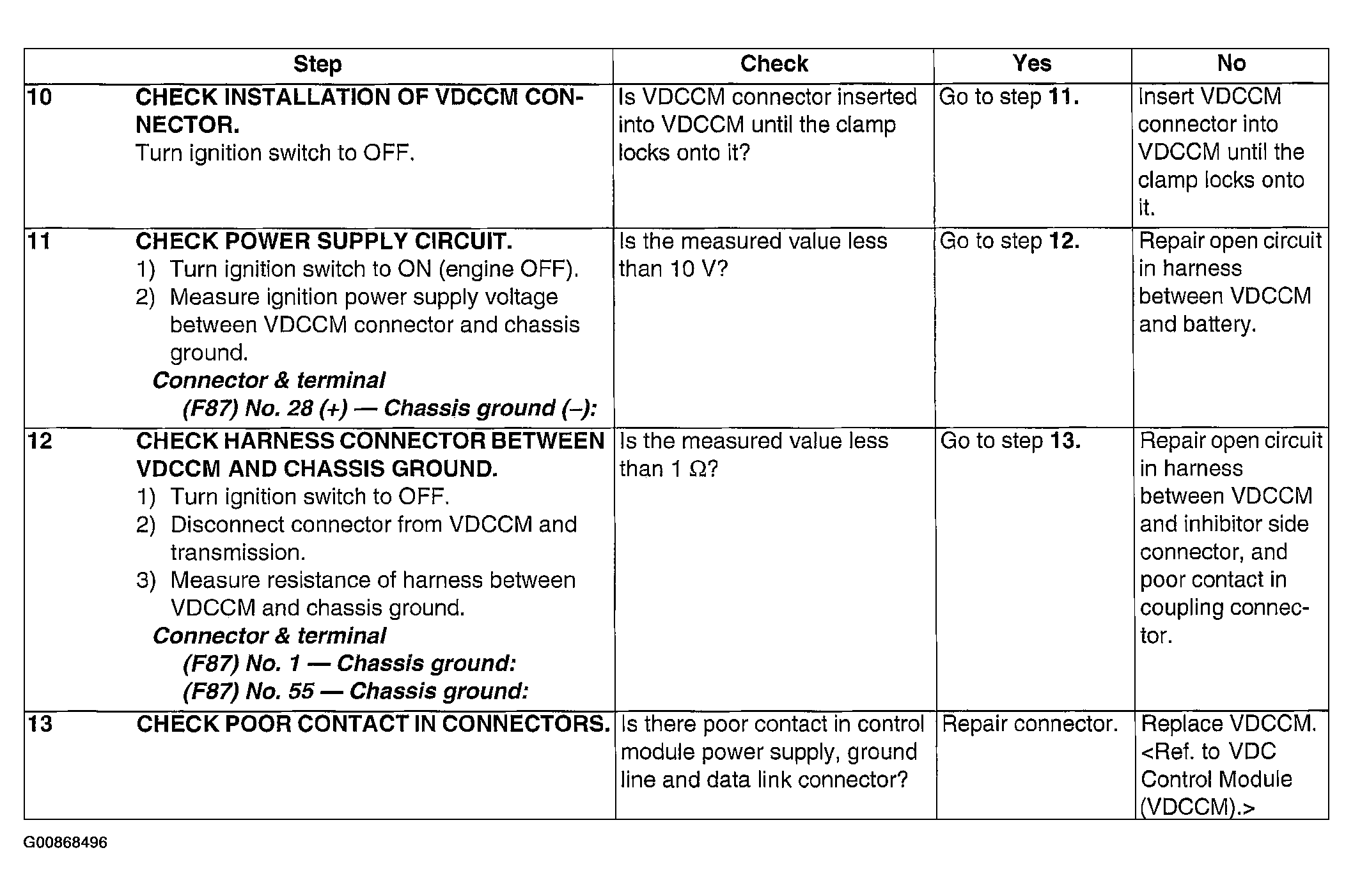

Fig 2: Communication For Initializing Impossible (Select Monitor Communication Failure) Diagnostic Chart (2 Of 2)
G00868496Courtesy of SUBARU OF AMERICA, INC.
