With SUBARU Select Monitor

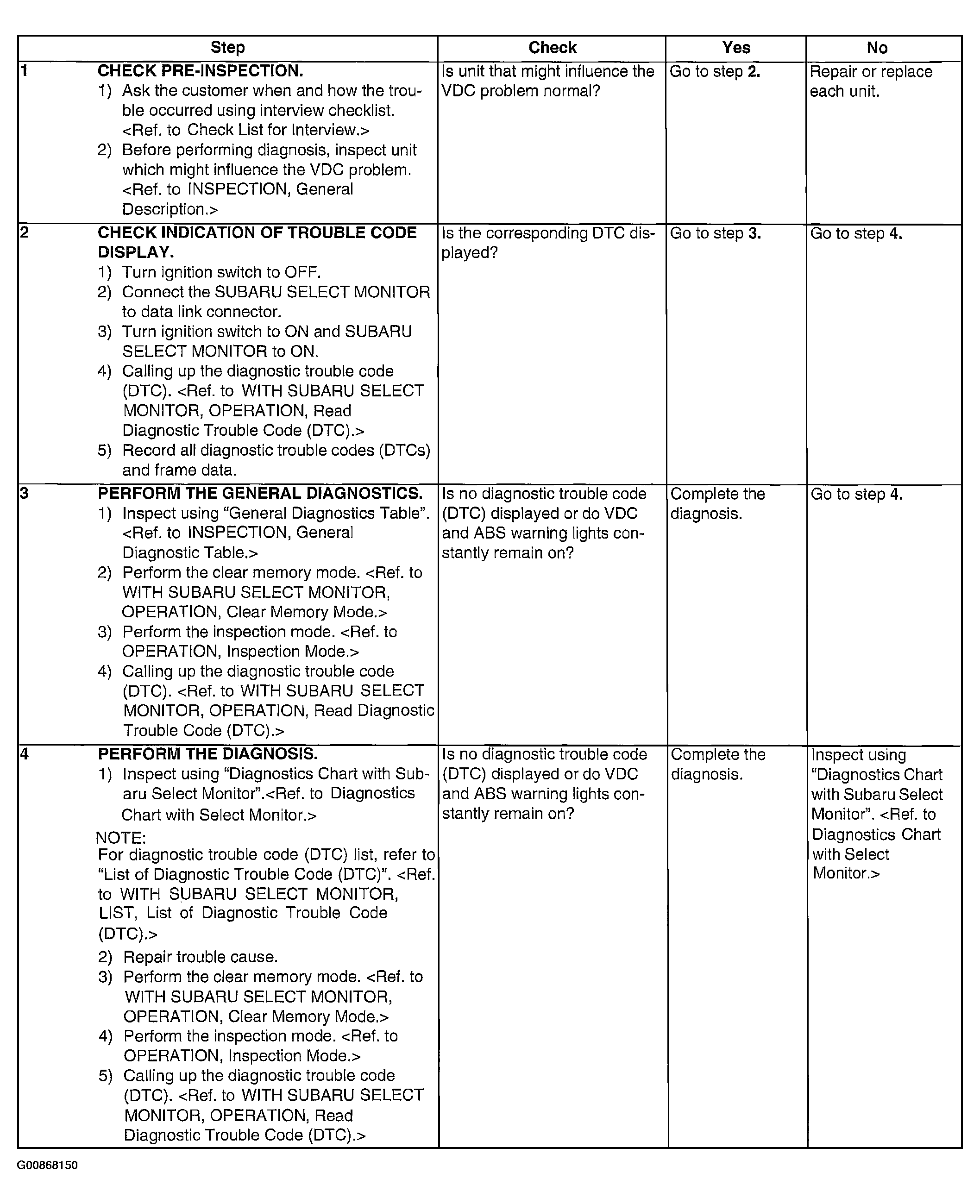

Fig 1: Basic Diagnostic Procedure With Subaru Select Monitor Chart
G00868150Courtesy of SUBARU OF AMERICA, INC.
NOTE:
  • To check harness for broken wires or short circuits, shake it while holding it or the connector.
  • Check list for interview. Refer to CHECK LIST FOR INTERVIEW  .
