DTC 56: Detection Of G Sensor Stick

DIAGNOSIS:

• Faulty G sensor output voltage

TROUBLE SYMPTOM:

• ABS does not operate.

WIRING DIAGRAM:

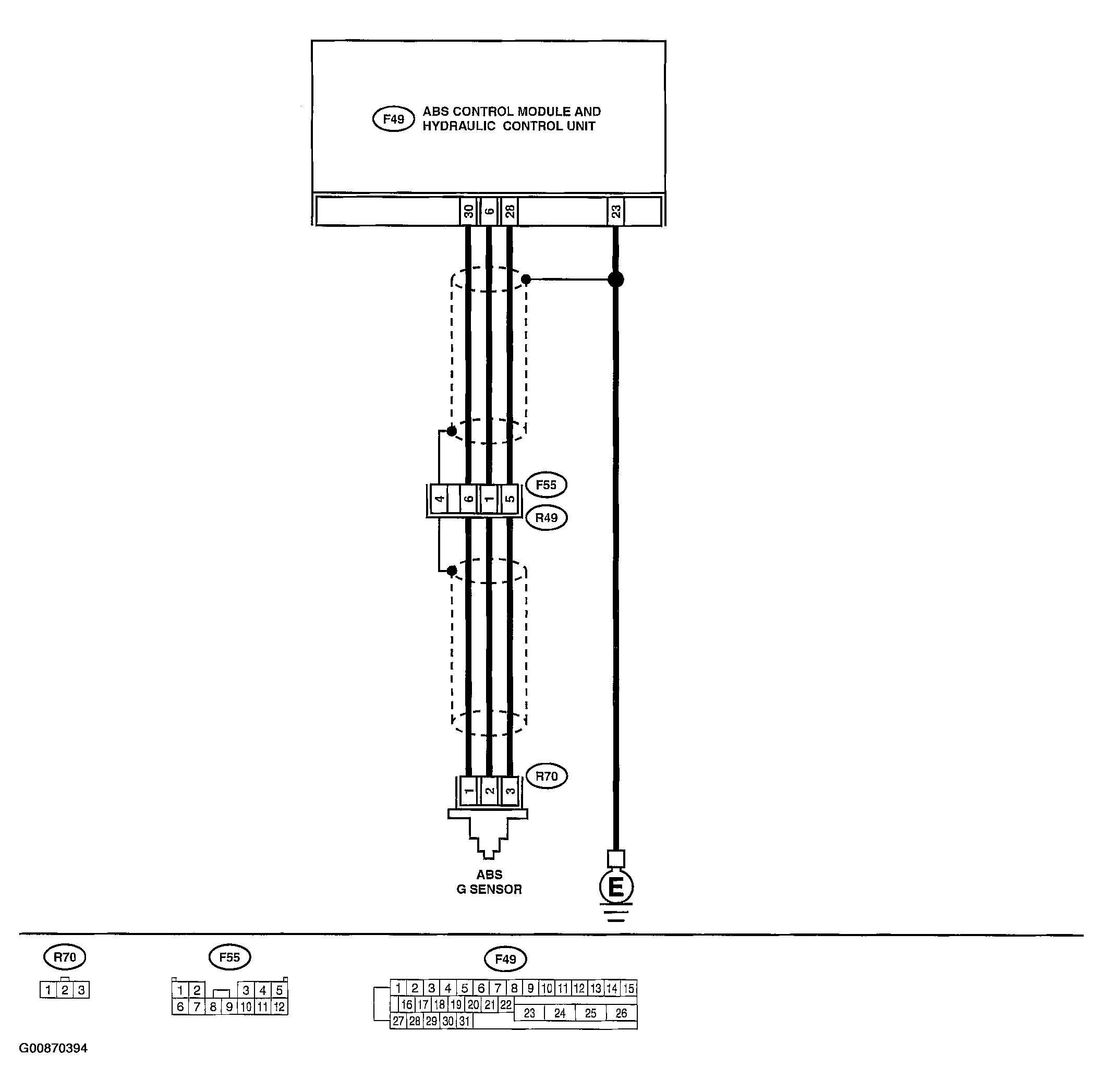

Fig 1: DTC 56 Detection Of G Sensor Stick Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

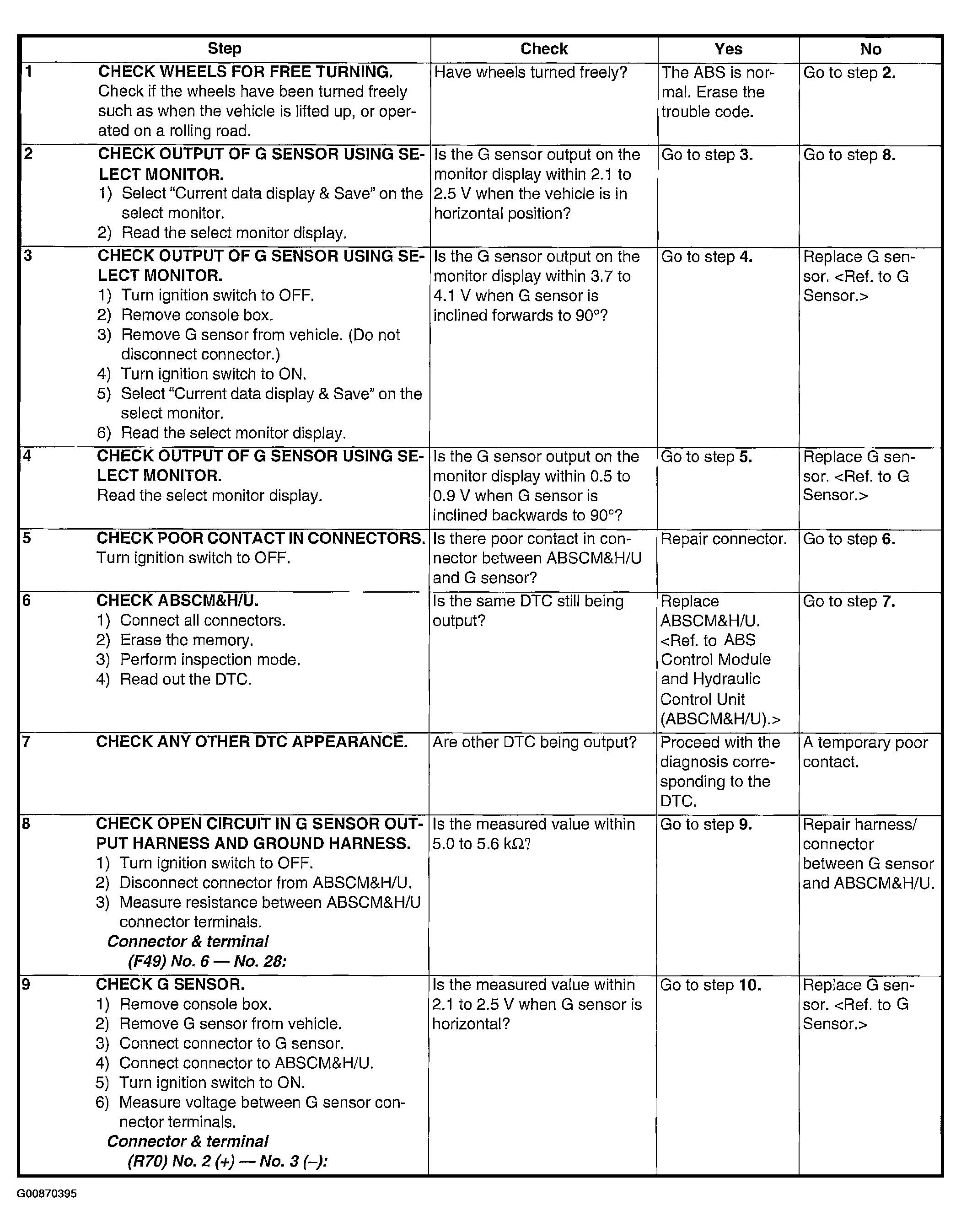

Fig 2: DTC 56 Detection Of G Sensor Stick Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

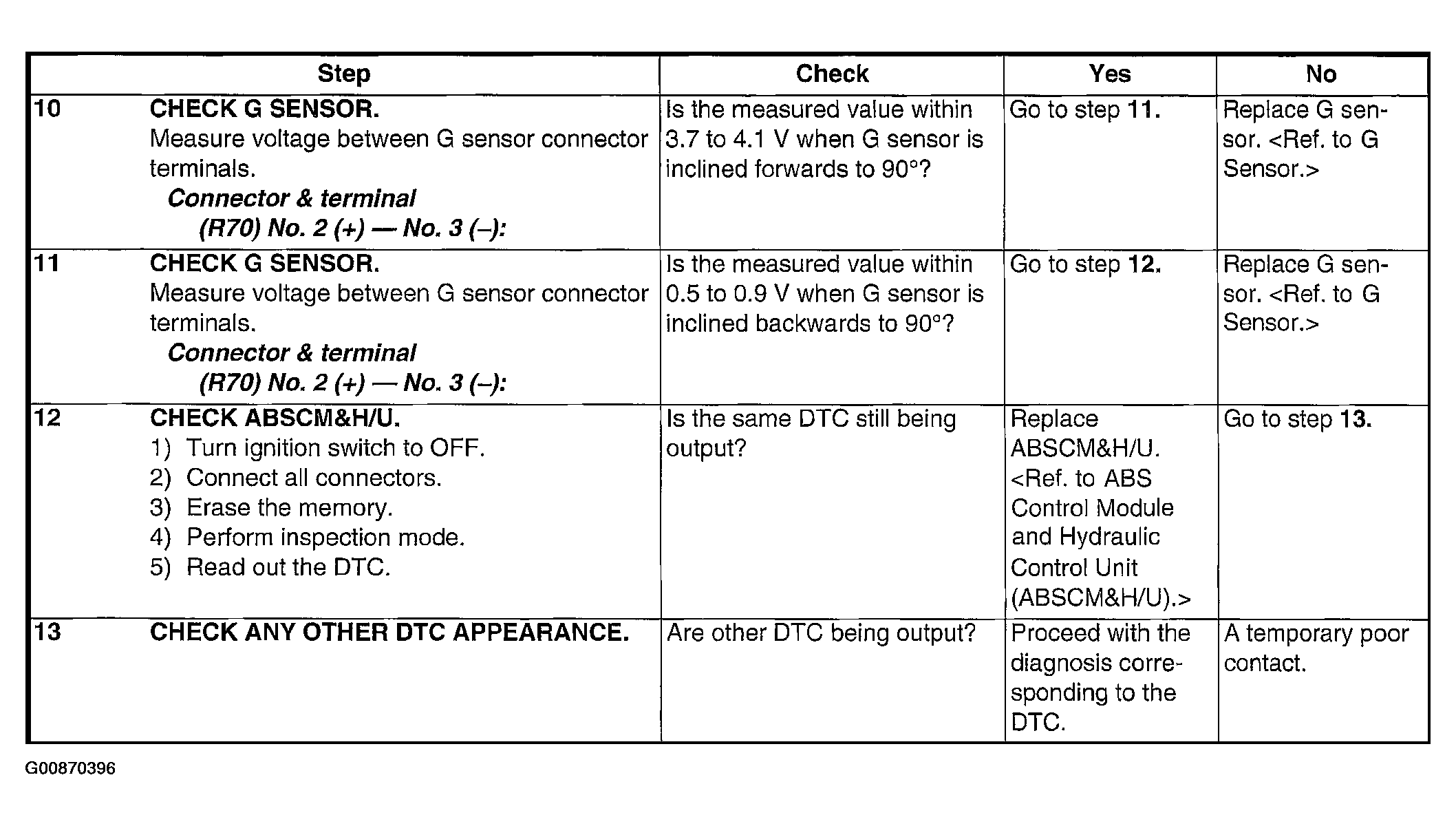

Fig 3: DTC 56 Detection Of G Sensor Stick Chart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
