Turbo Models, SOHC U5 Models

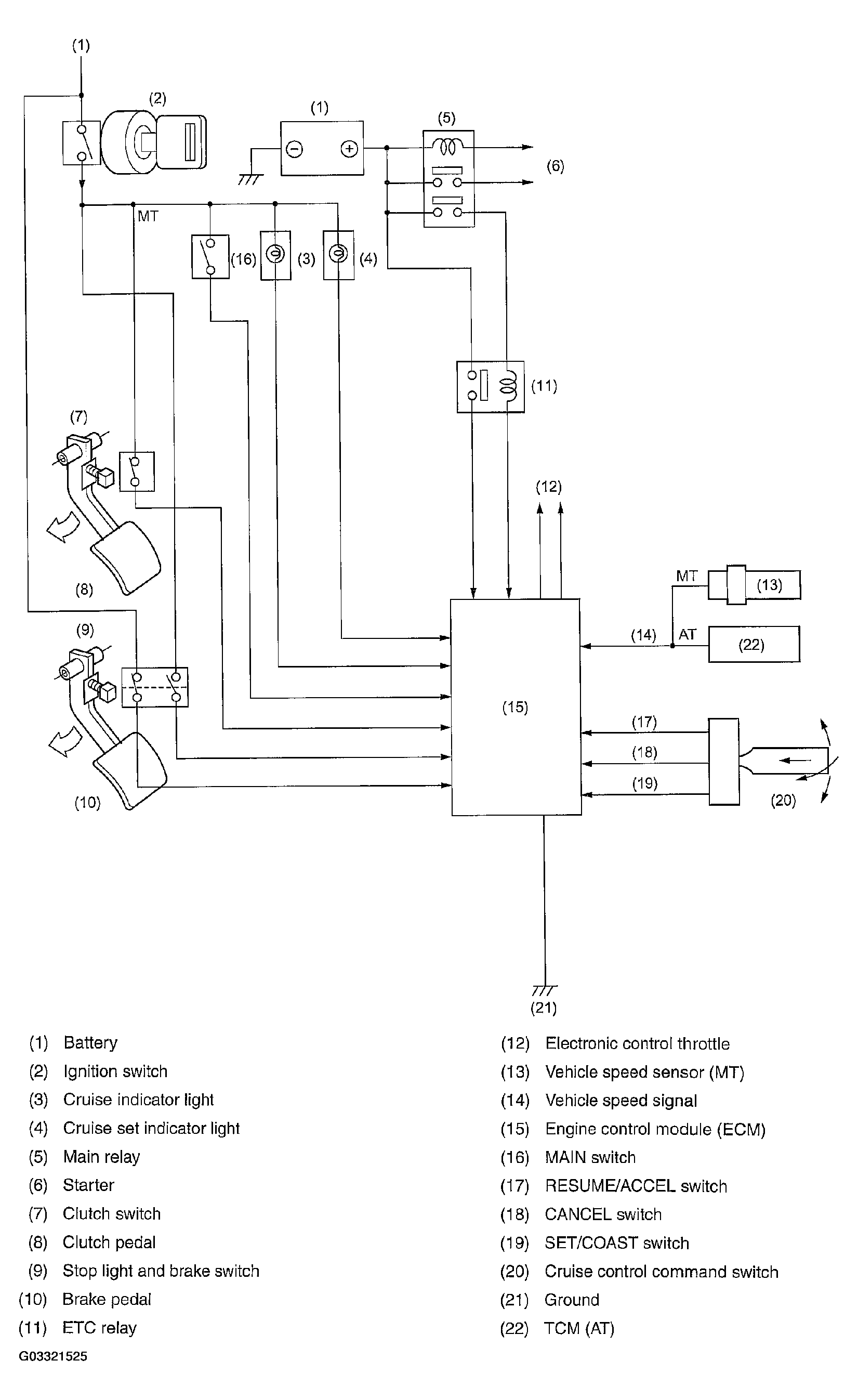

Fig 1: Identifying Turbo Models, SOHC U5 Models Schematic Diagram

G03321525

Courtesy of SUBARU OF AMERICA, INC.
