Cruise Control: Actuator

In response to a signal from the cruise control module, the clutch in the actuator is turned ON. This causes the stepping motor to operate, pulling the throttle cam for speed control. (SOHC models, H6 models)

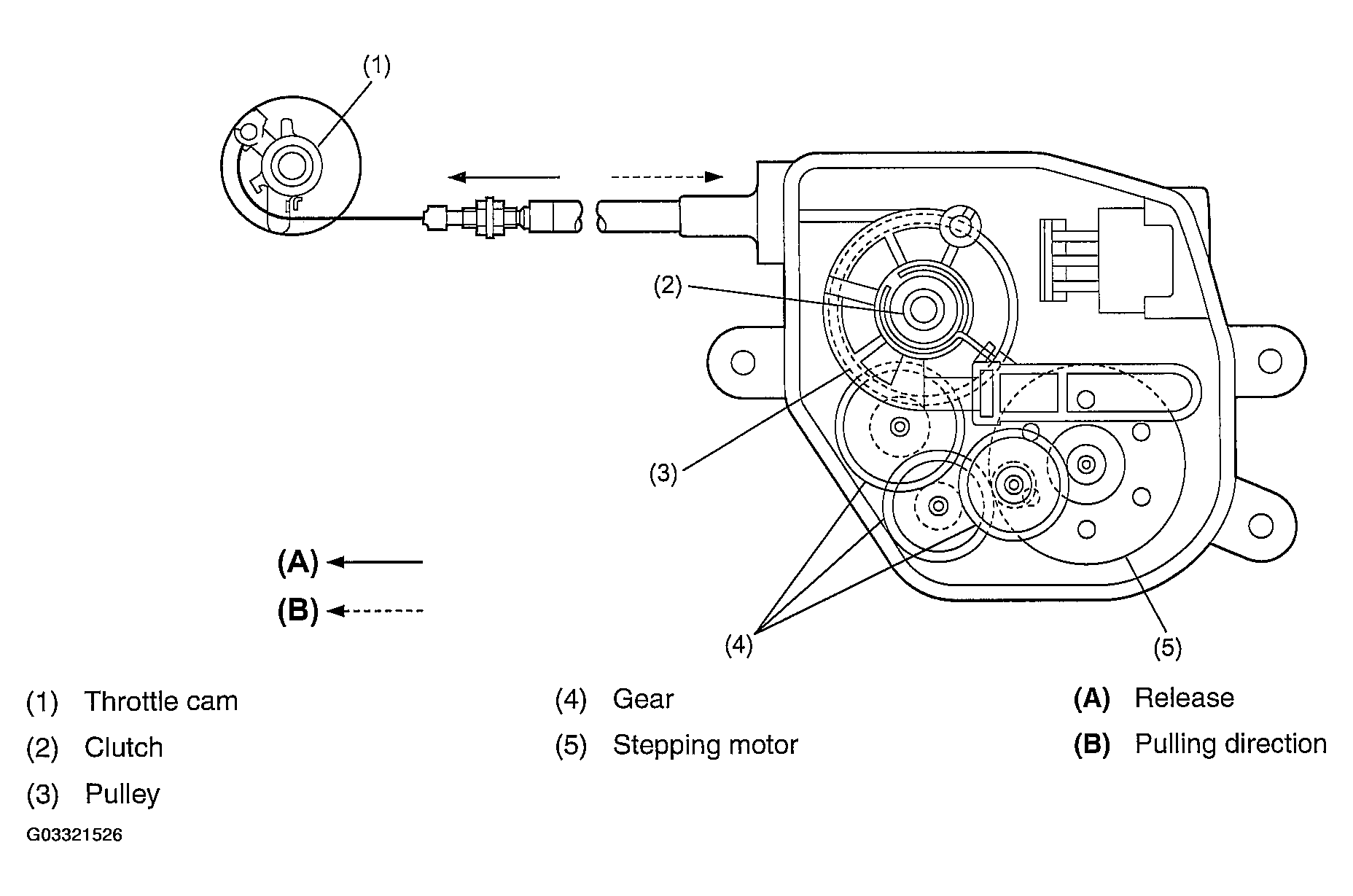

Fig 1: Identifying Actuator Component

Courtesy of SUBARU OF AMERICA, INC.
