Engine (Diagnostics) (H4SO)
>>
Diagnostics for Engine Starting Failure
>>
Ignition Control System
>>
Diagnostic Chart:
Diagnostic Chart:

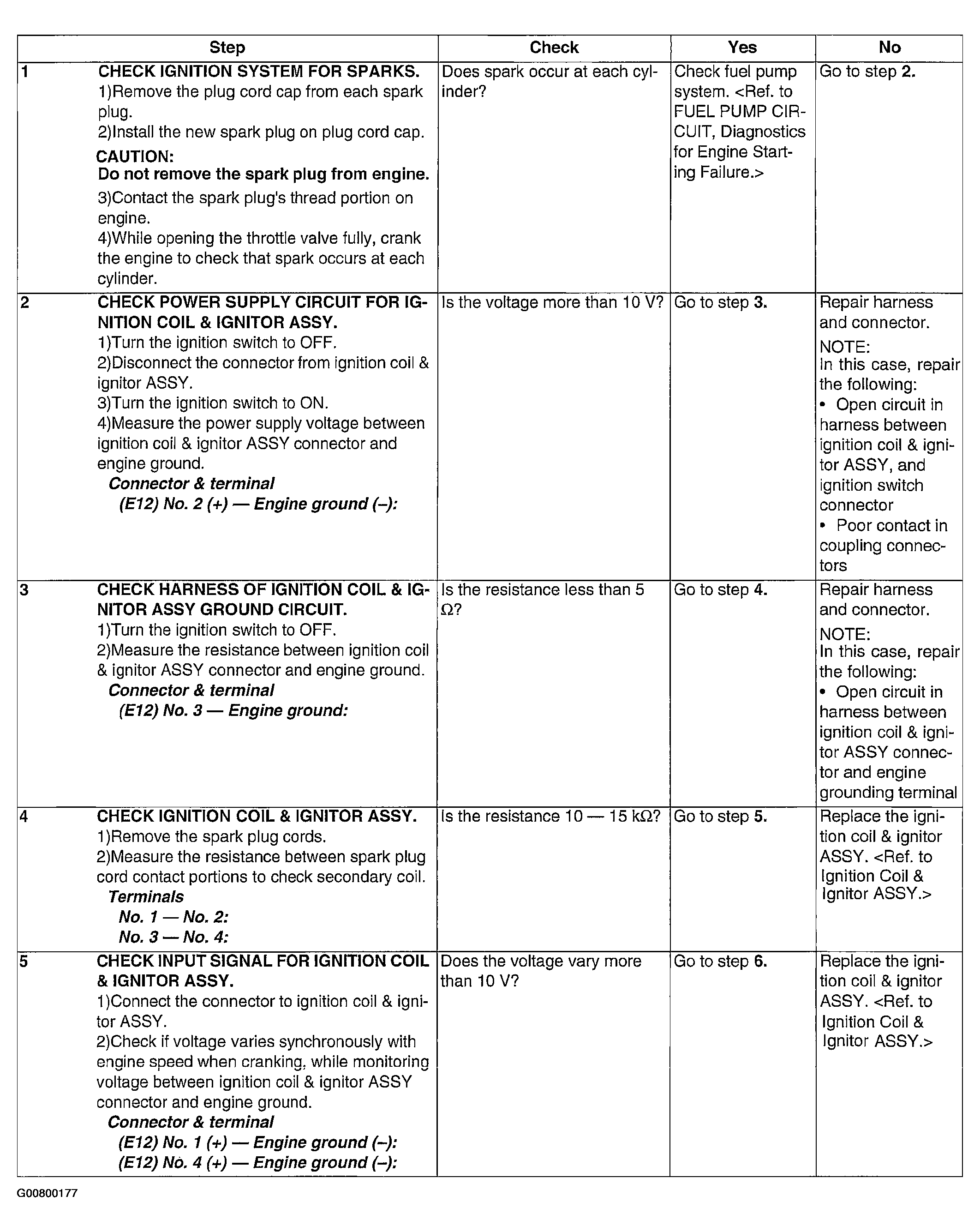

Fig 1: Ignition Control - Diagnostic Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

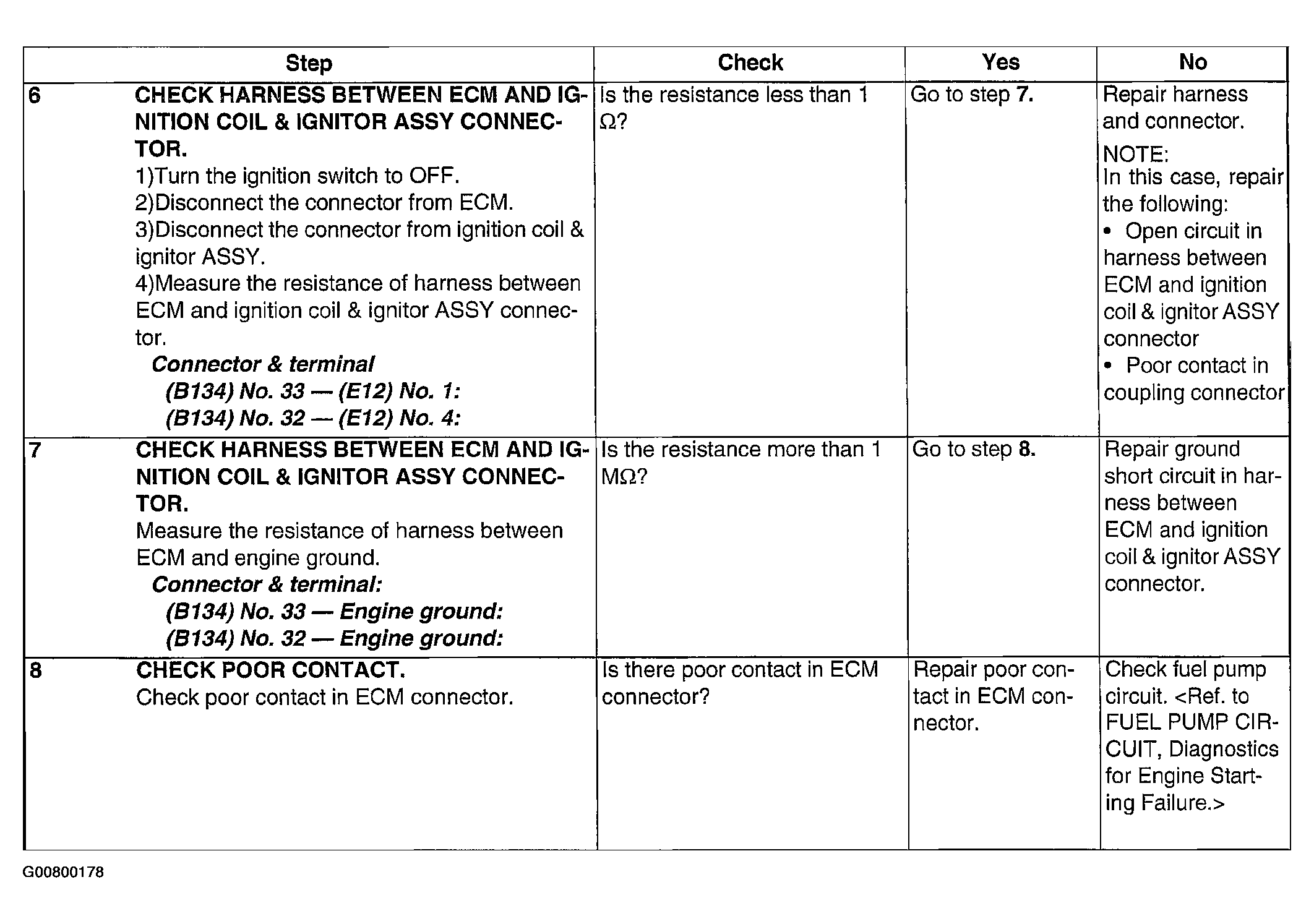

Fig 2: Ignition Control - Diagnostic Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
