Diagnostic Procedure with Diagnostic Trouble Code (DTC)
>>
DTC P0130: O2 Sensor Circuit (Bank 1 Sensor 1)
>>
Diagnostic Chart:
Diagnostic Chart:

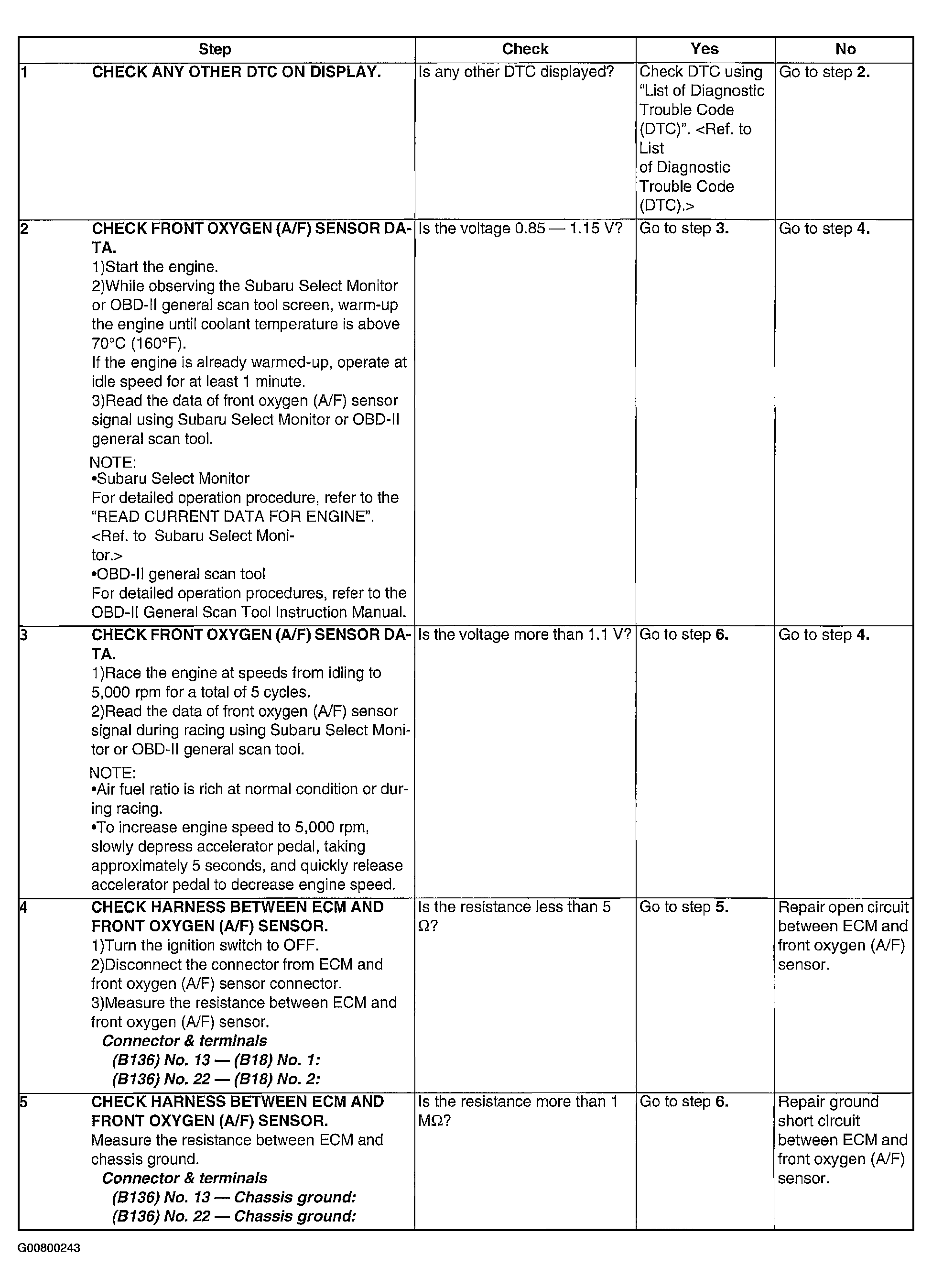

Fig 1: DTC P0130 - Diagnostic Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

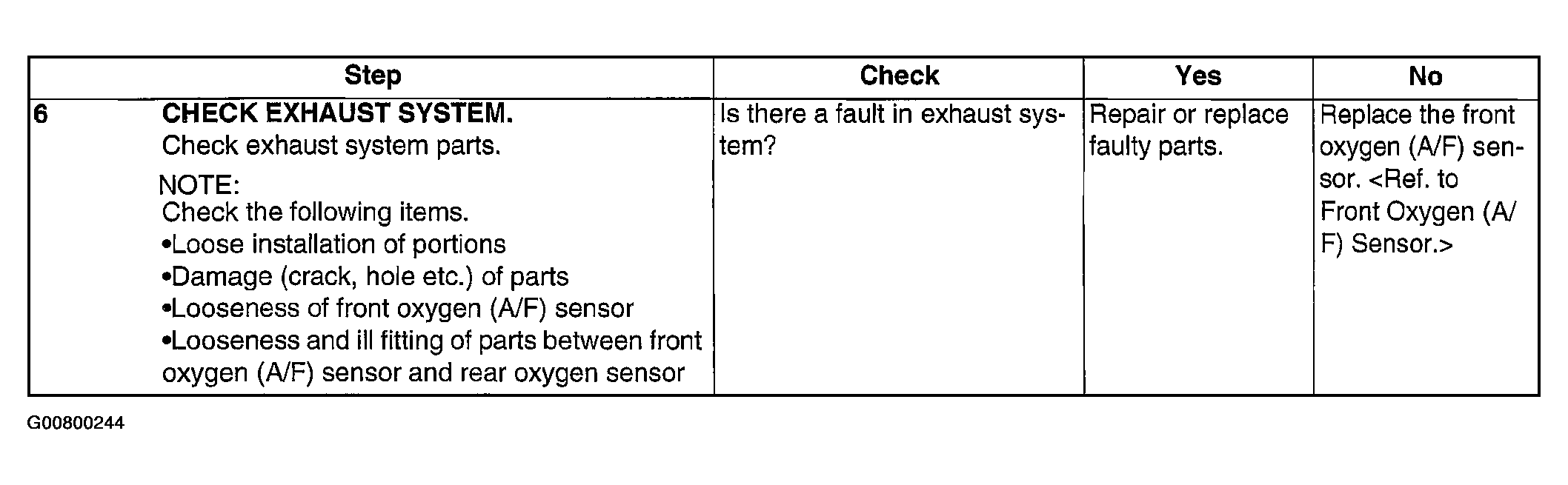

Fig 2: DTC P0130 - Diagnostic Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
