ABS Control Module and Hydraulic Control Unit (ABS CM & H/U): Installation

Install the ABSCM&H/U bracket.
Tightening torque:

33 N.m (3.3 kgf-m, 24 ft-lb)
Apply a coat of grease (Nippeco LT or GB) to the bracket attaching bolt.
Align the width across flat portion of ABSCM&H/U side stud bolt with the bolt hole groove on bracket, and then install the ABSCM&H/U.
NOTE: Confirm the specification mark of ABSCM&H/U.

Tightening torque:

18 N.m (1.8 kgf-m, 13.0 ft-lb)

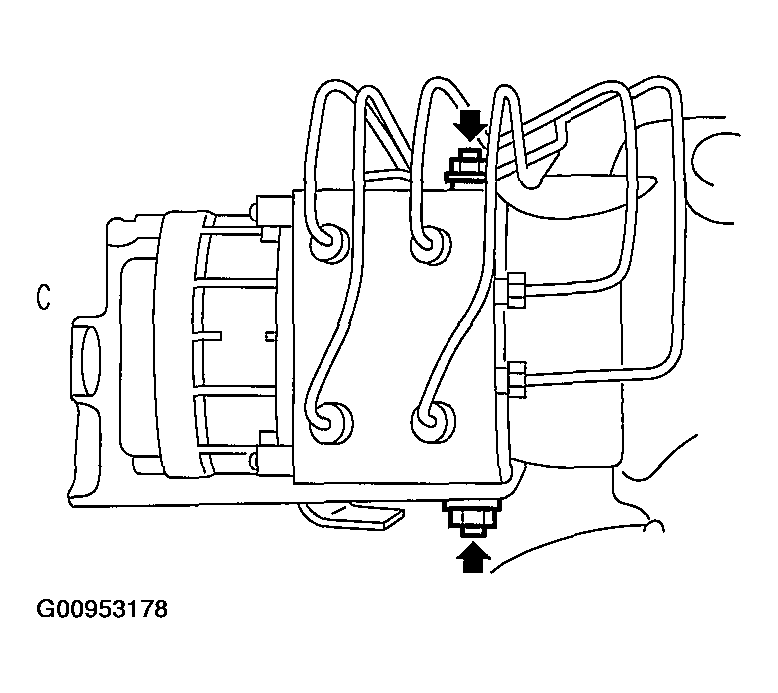

Fig 1: Installing ABSCM&H/U Bracket
Courtesy of SUBARU OF AMERICA, INC.
Connect the brake pipes to their correct ABSCM&H/U connections.
Tightening torque:

15 N.m (1.5 kgf-m, 10.8 ft-lb)
Using the cable clip, secure the ABSCM&H/U harness to bracket.
Connect the connector to ABSCM&H/U.
NOTE:
- Be sure to remove all foreign matter from inside of the connector before connecting.
- Ensure the ABSCM&H/U connector is securely locked.
Connect the ground cable to ABSCM&H/U, and then apply grease.
Install the air intake duct.
Bleed air from the brake system.
