Schematic Drawings

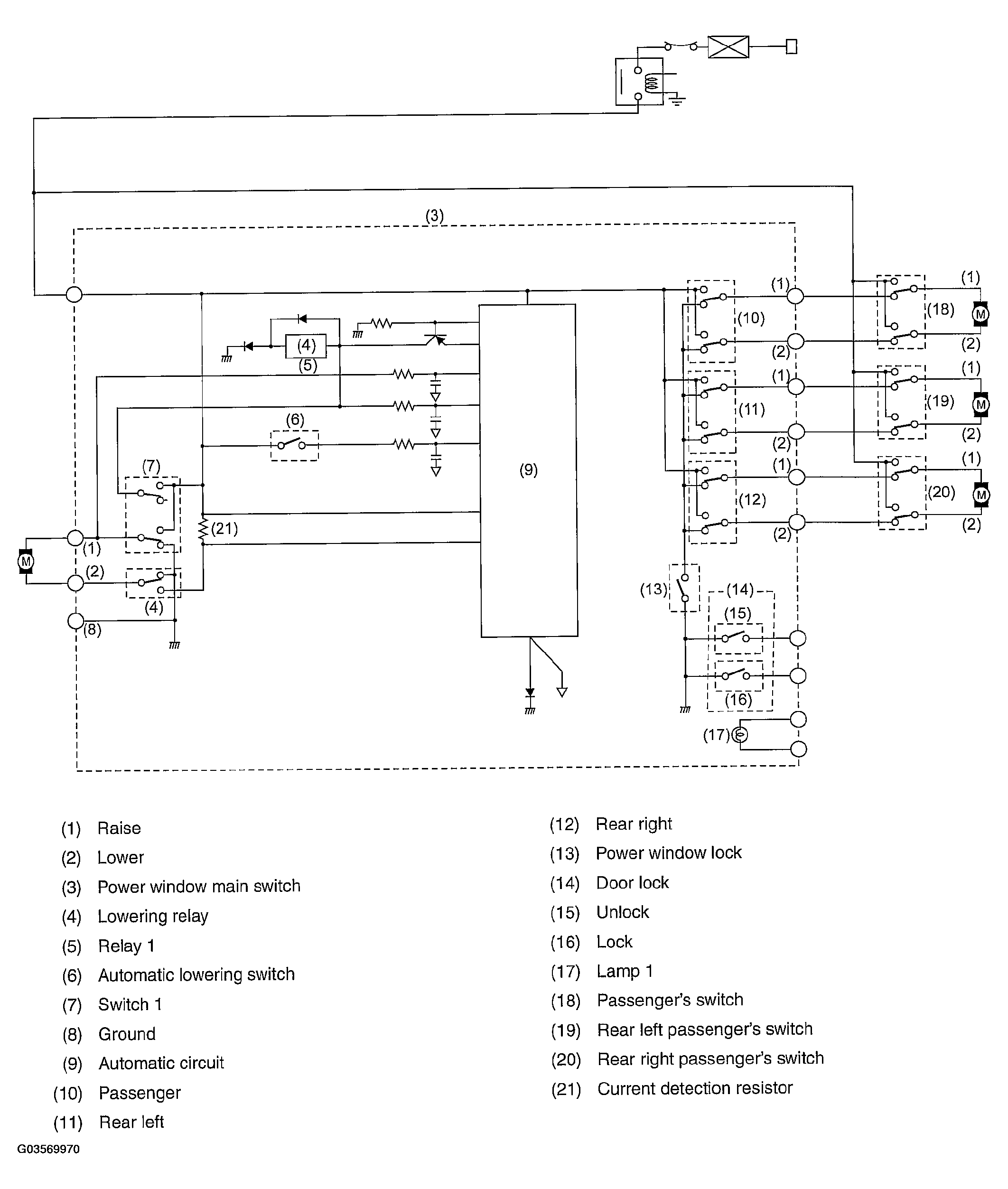

Fig 1: Power Window Schematic Drawings

G03569970

Courtesy of SUBARU OF AMERICA, INC.
