Cruise Control: Schematic

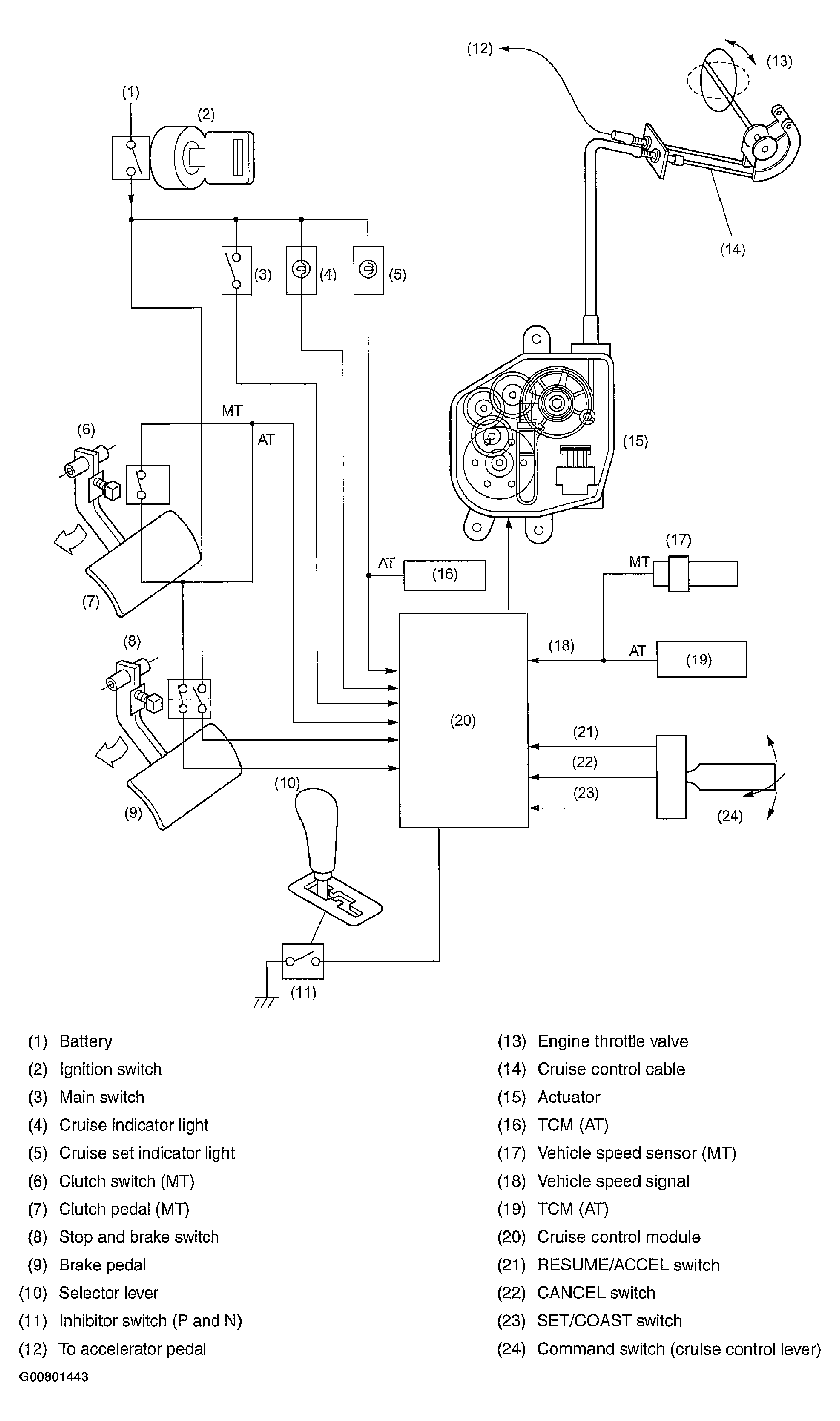

Fig 1: Identifying Cruise Control Schematic Diagram

G00801443

Courtesy of SUBARU OF AMERICA, INC.
