Universal Joint: Removal

  1. Remove the steering wheel. Refer to REMOVAL  .
  2. Make matching mark on the universal joint.
  3. Remove the universal joint bolts, and then remove the universal joint.

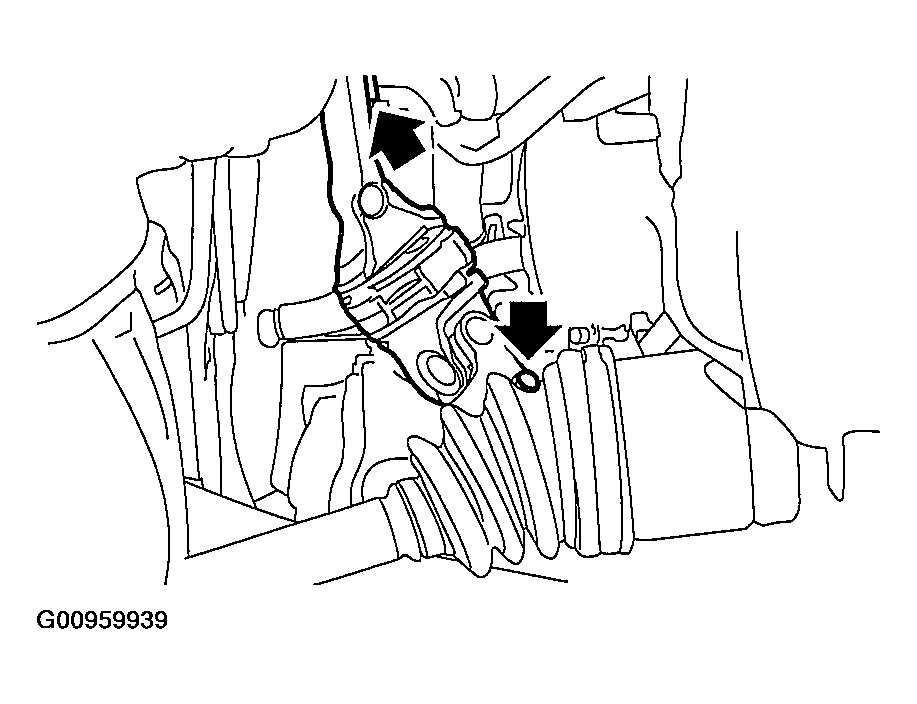

    Fig 1: Identifying Universal Joint
    G00959939Courtesy of SUBARU OF AMERICA, INC.
