Section 13 (Engine Cooling System (H4SO) - Mechanism & Function)
>>
Water Pump
>>
At Models
At Models
WARNING:
This page is about a different variant/trim than selected.

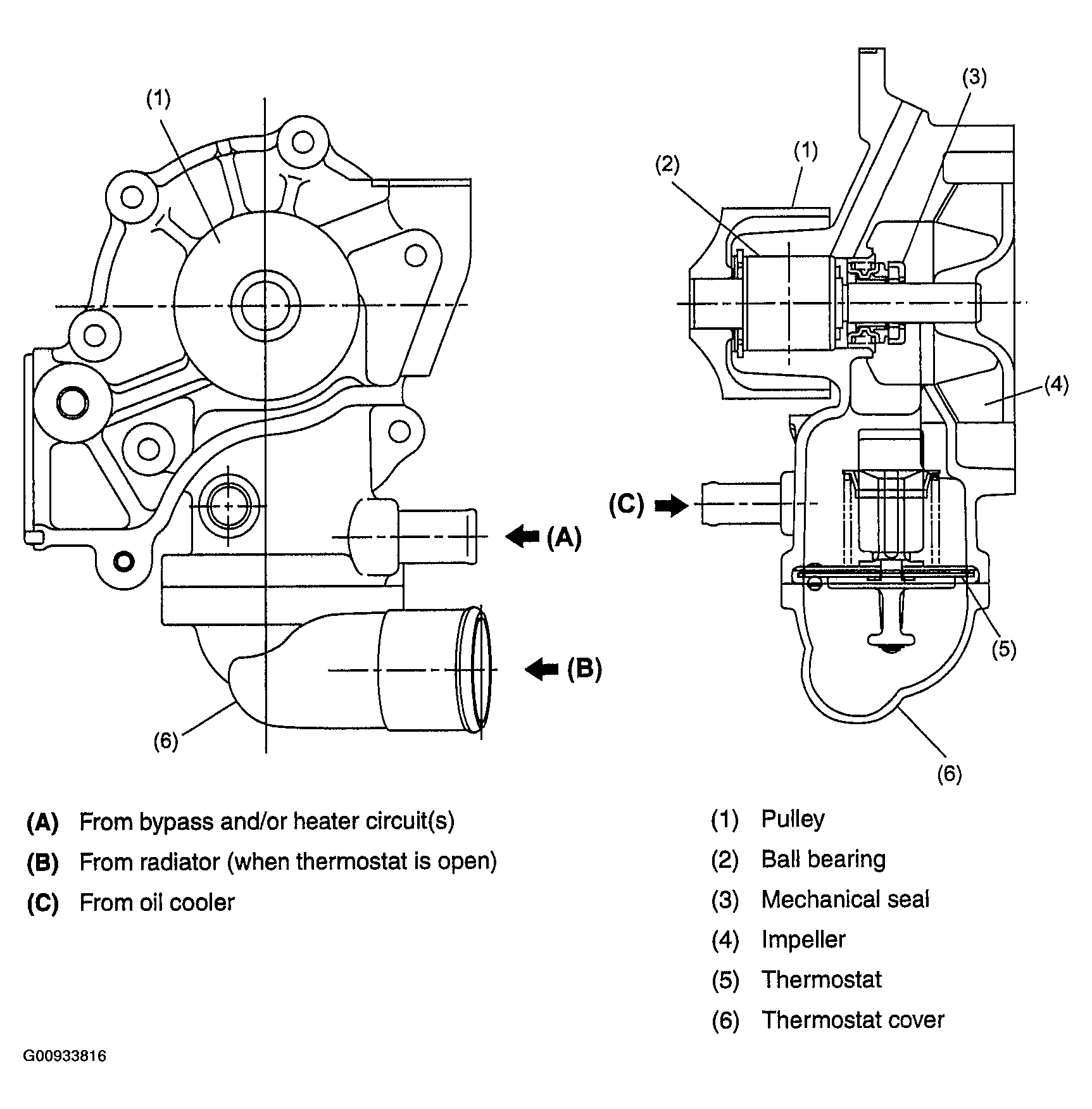

Fig 1: Identifying Components Water Pump A/T Model
Courtesy of SUBARU OF AMERICA, INC.
