Front Oxygen (A/F) Sensor: Removal

Disconnect the ground cable from battery.

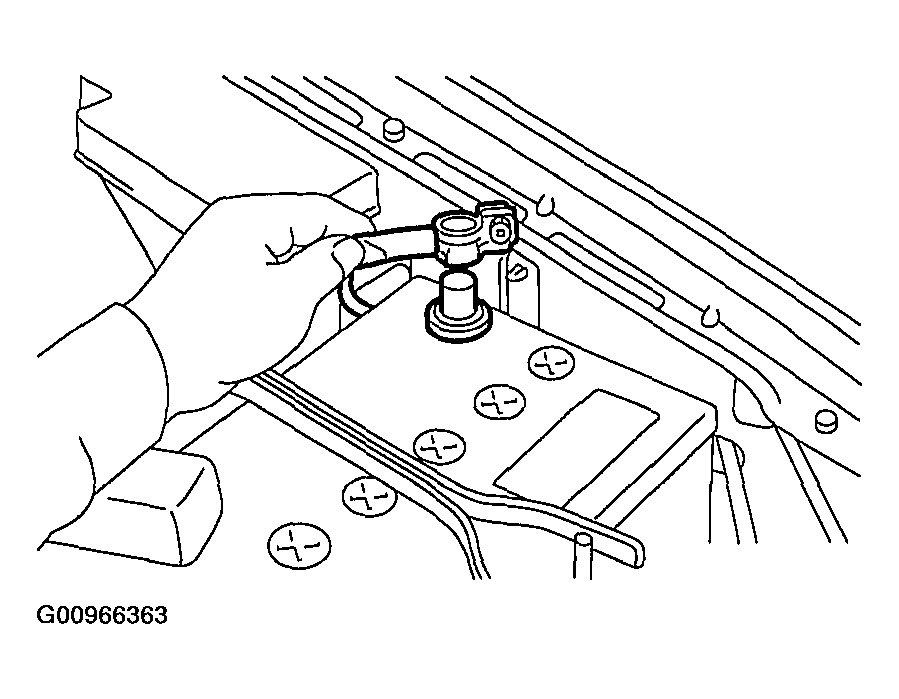

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the front oxygen (A/F) sensor.

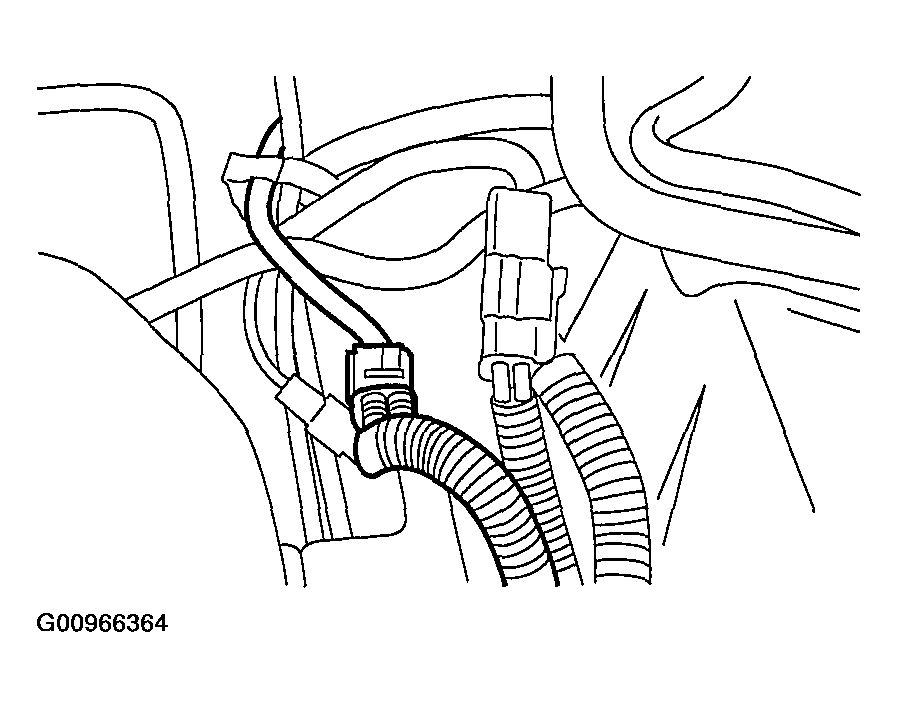

Fig 2: Identifying Front Oxygen (A/F) Sensor
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the engine harness fixed by clip (A) from the bracket (B).

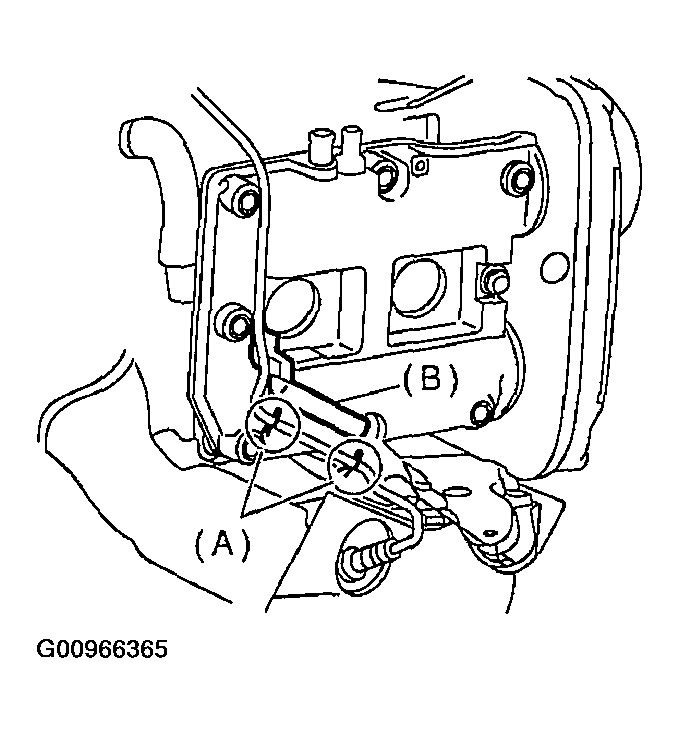

Fig 3: Identifying Engine Harness
Courtesy of SUBARU OF AMERICA, INC.
Remove the front right side wheel.
Lift-up the vehicle.
Remove the service hole cover.

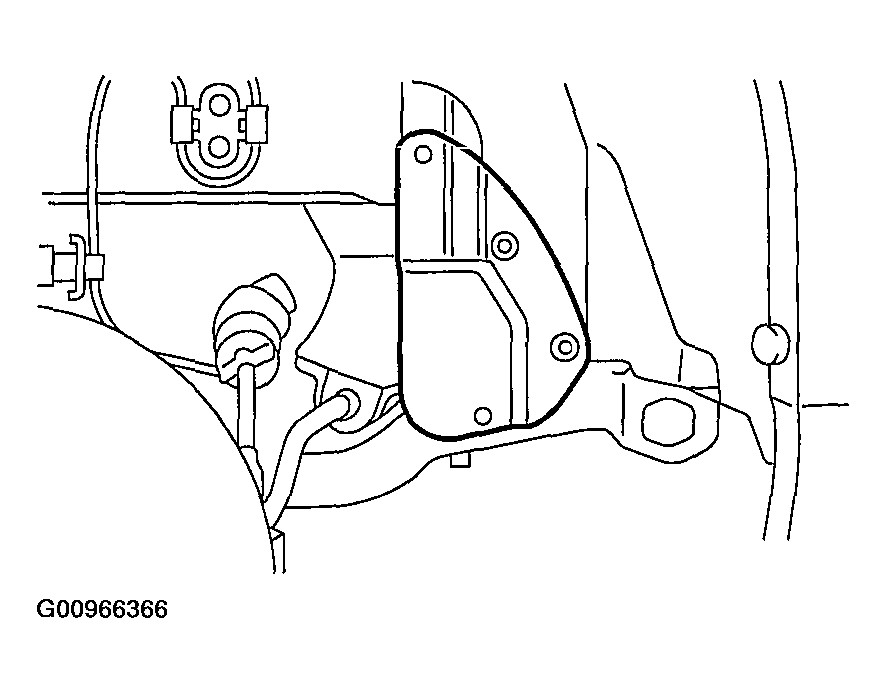

Fig 4: Identifying Service Hole Cover
Courtesy of SUBARU OF AMERICA, INC.
Apply SUBARU CRC or its equivalent to the threaded portion of front oxygen (A/F) sensor, and leave it for one minute or more.
1. SUBARU CRC (Part No. 004301003)
Remove the front oxygen (A/F) sensor.
CAUTION: When Identifying the oxygen (A/F) sensor, wait until exhaust pipe cools; otherwise, it will damage exhaust pipe.

Fig 5: Identifying Front Oxygen (A/F) Sensor
Courtesy of SUBARU OF AMERICA, INC.
