Diagnostic Chart

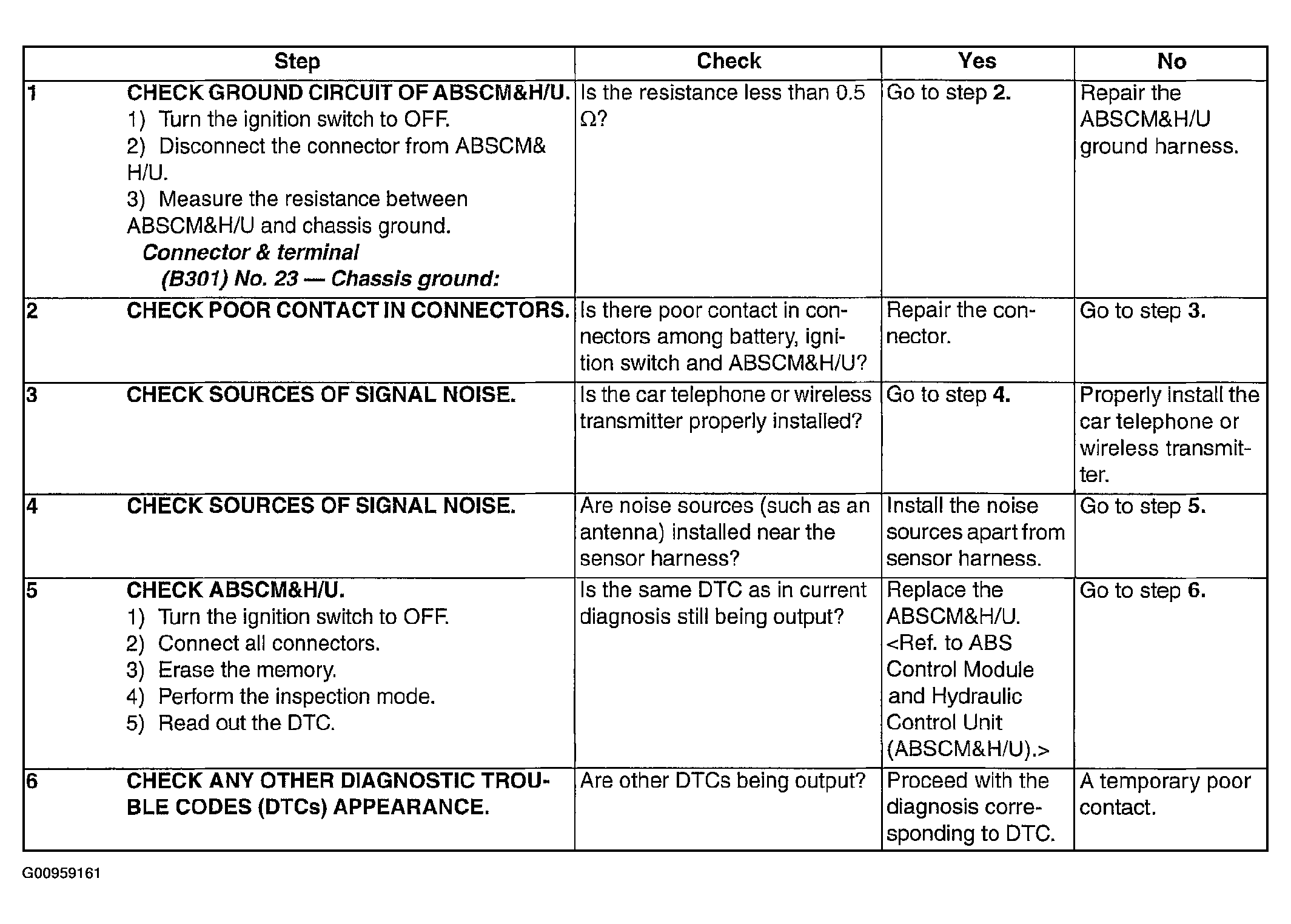

Fig 1: Diagnostics Procedure Chart - DTC 41 ABS Control Module Malfunction

G00959161

Courtesy of SUBARU OF AMERICA, INC.
