Forester XT, Standard
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Cruise Control System (Diagnostics (H4DOTC)
>>
Engine Control Module (ECM) I/O Signal
>>
Electrical Specification
Electrical Specification
Fig 1: Engine Control Module (ECM) I/O Signal Connector
Courtesy of SUBARU OF AMERICA, INC.

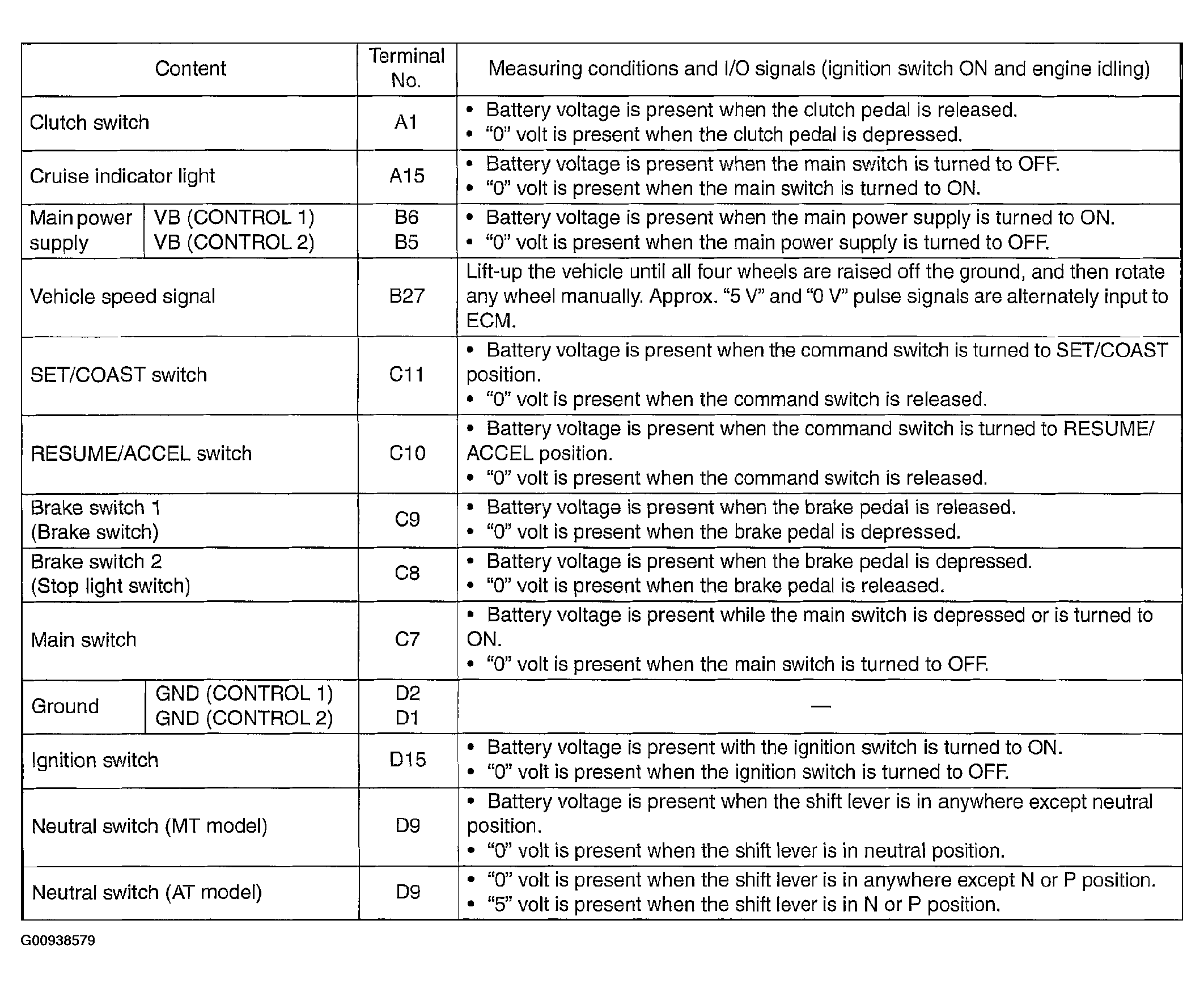

Fig 2: Terminal Table
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
