Diagnostic Procedures:

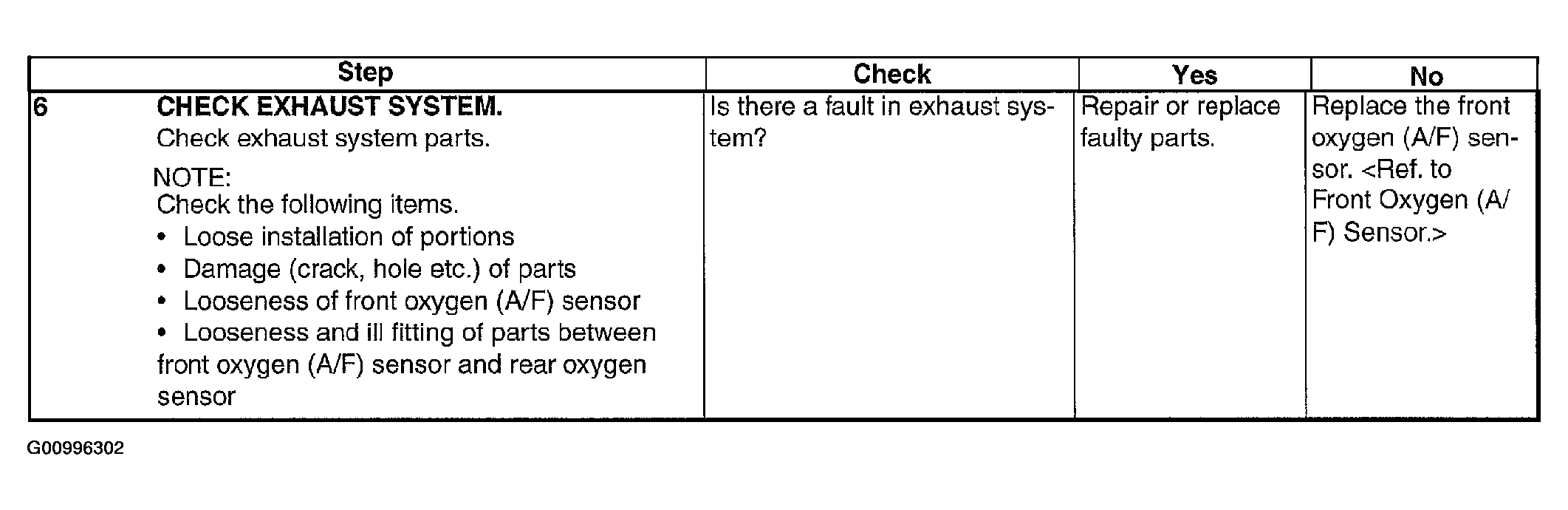

Fig 1: DTC P0130 - 02 Sensor Circuit (Bank 1 Sensor 1) Diagnostic Chart (2 Of 2)
G00996302Courtesy of SUBARU OF AMERICA, INC.
