Home >> Subaru >> 2004 >> Forester X, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine (Diagnostics) (H4SO) >> Diagnostics for Engine Starting Failure >> Control Module Power Supply And Ground Line >> Wiring Diagram:

Wiring Diagram:

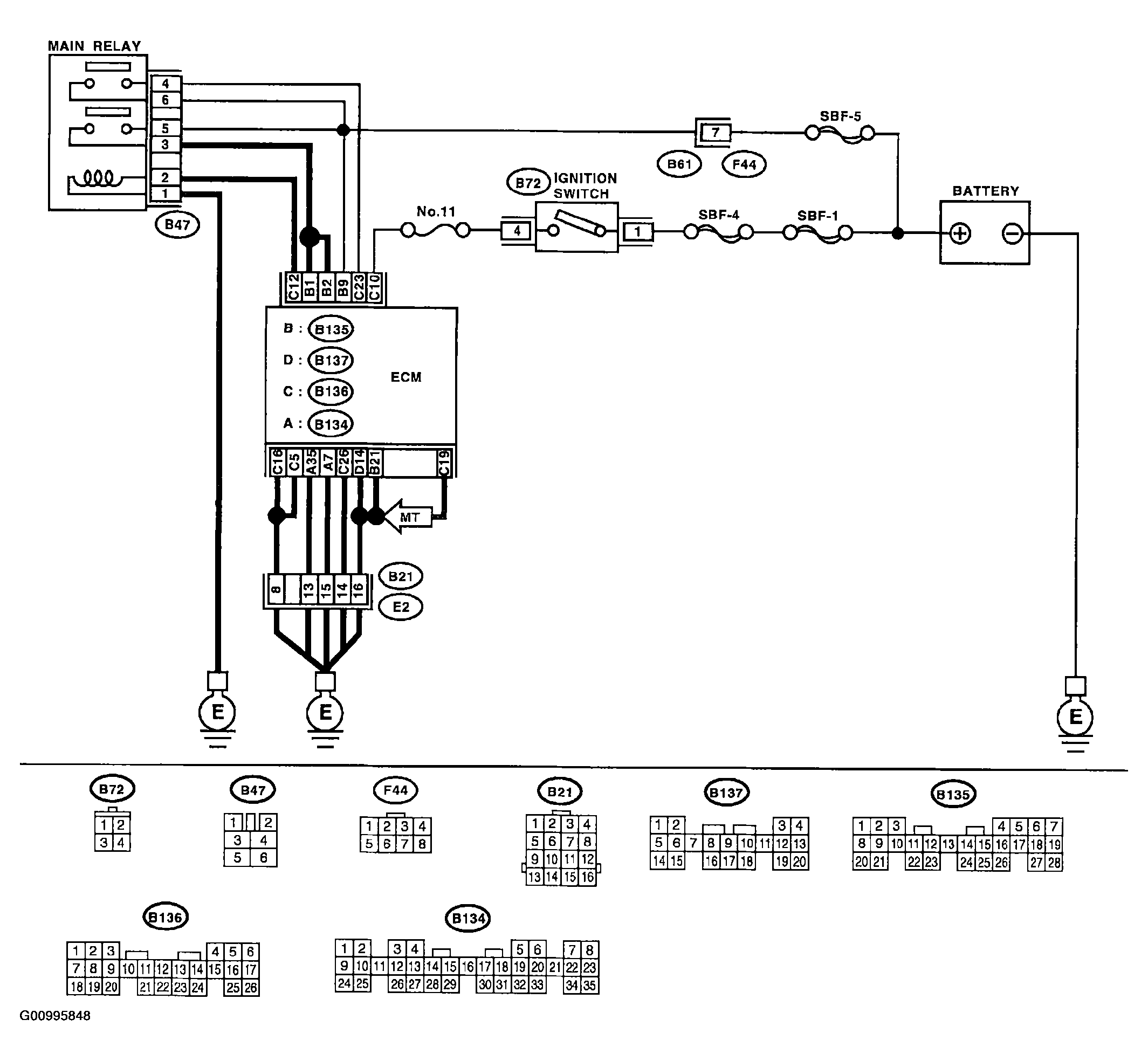

Fig 1: Control Module Power Supply & Ground Line Wiring Diagram

G00995848

Courtesy of SUBARU OF AMERICA, INC.
