Idle Air Control Solenoid Valve: Removal

  1. Disconnect the ground cable from battery.

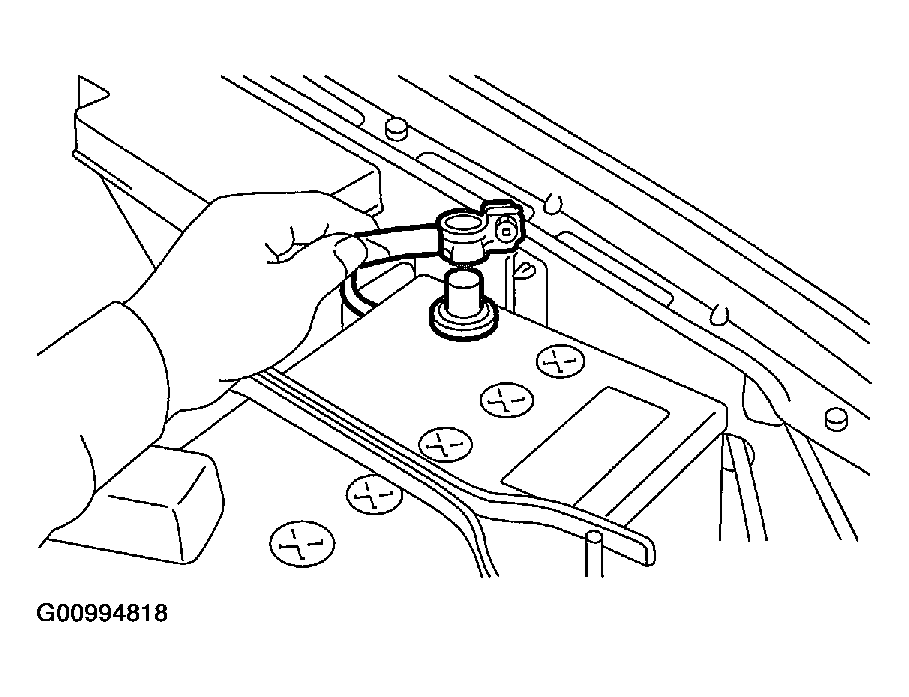

    Fig 1: Disconnecting Ground Cable From Battery
    G00994818Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector from the idle air control solenoid valve.

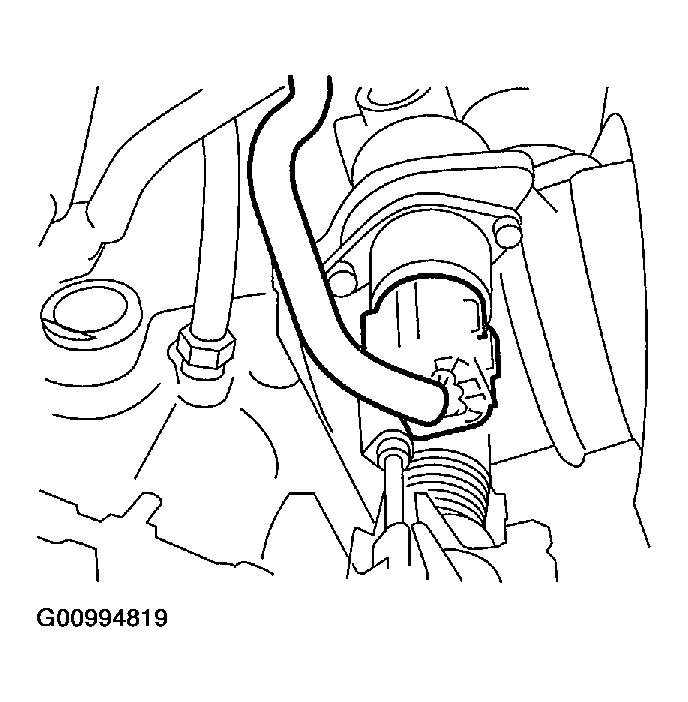

    Fig 2: Disconnecting Connector From Idle Air Control Solenoid Valve
    G00994819Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the idle air control solenoid valve from the throttle body.
    Fig 3: Identifying Idle Air Control Solenoid Valve
    G00994820Courtesy of SUBARU OF AMERICA, INC.
