Mode $02 (Powertrain Freeze Frame Data)

Refers to data denoting the operating condition when trouble is sensed by the on-board diagnosis system A list of the support data and PID (Parameter Identification) codes are shown in the following table.

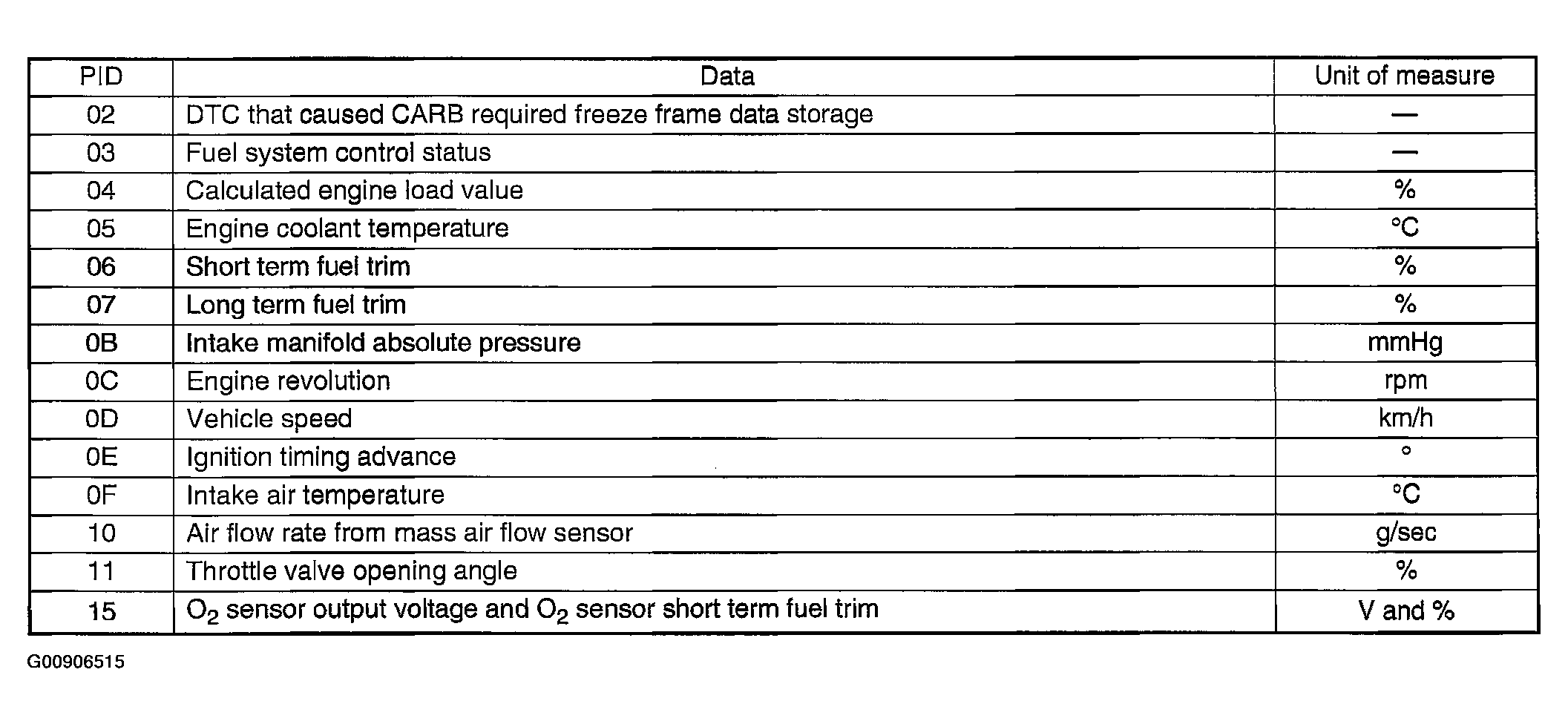

Fig 1: Data & PID (Parameter Identification) Chart (Mode $02 (Powertrain Freeze Frame Data)
G00906515Courtesy of SUBARU OF AMERICA, INC.
NOTE: Refer to .
