DTC P0604: Internal Control Module Random Access Memory (Ram) Error: Wiring Diagram

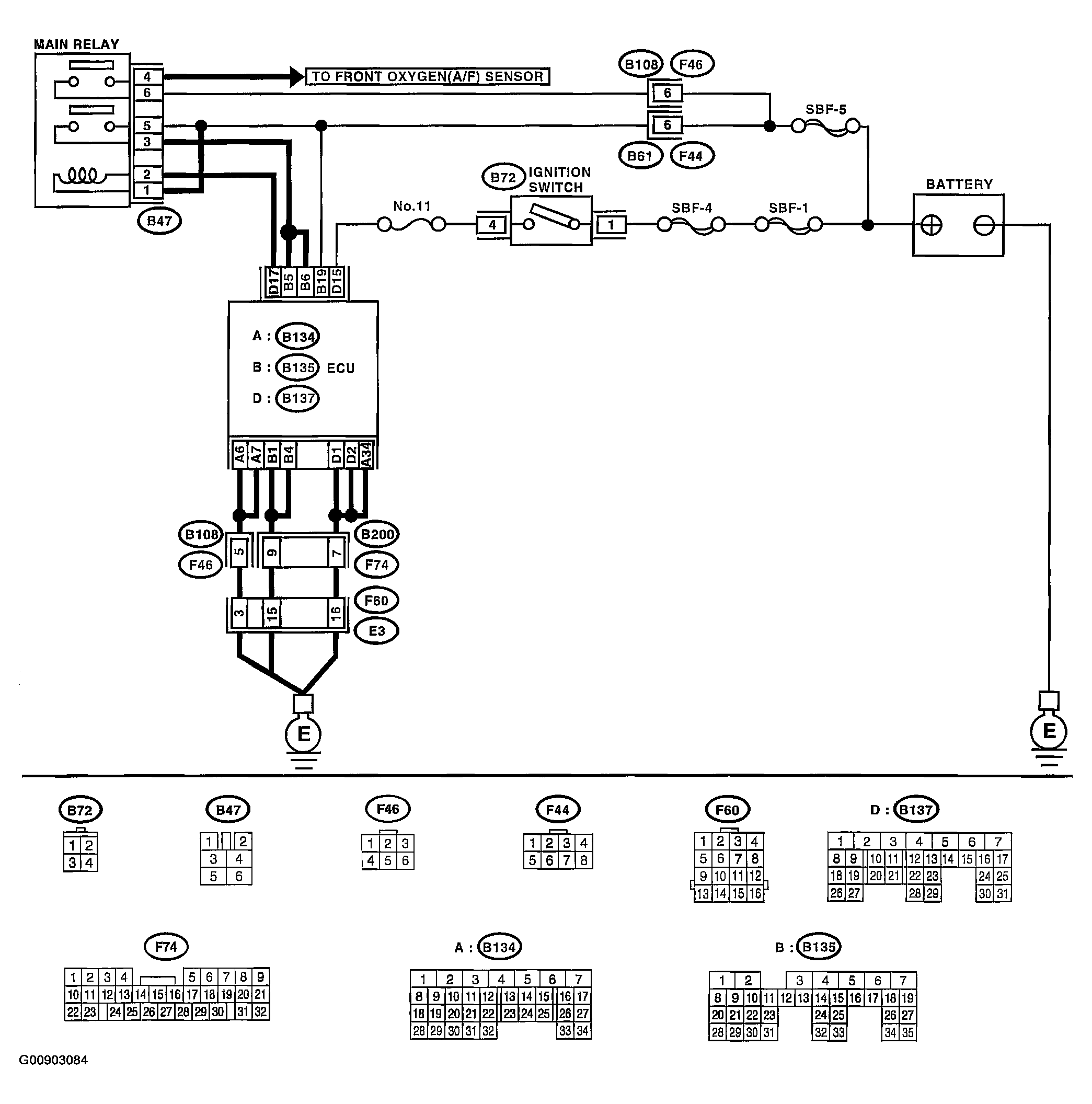

Fig 1: DTC P0604 - Internal Control Module Random Access Memory (RAM) Error - Wiring Diagram
G00903084Courtesy of SUBARU OF AMERICA, INC.
