3.0 L Model

  1. Install reservoir tank to bracket.
  2. Connect return hose and suction hose to reservoir tank.

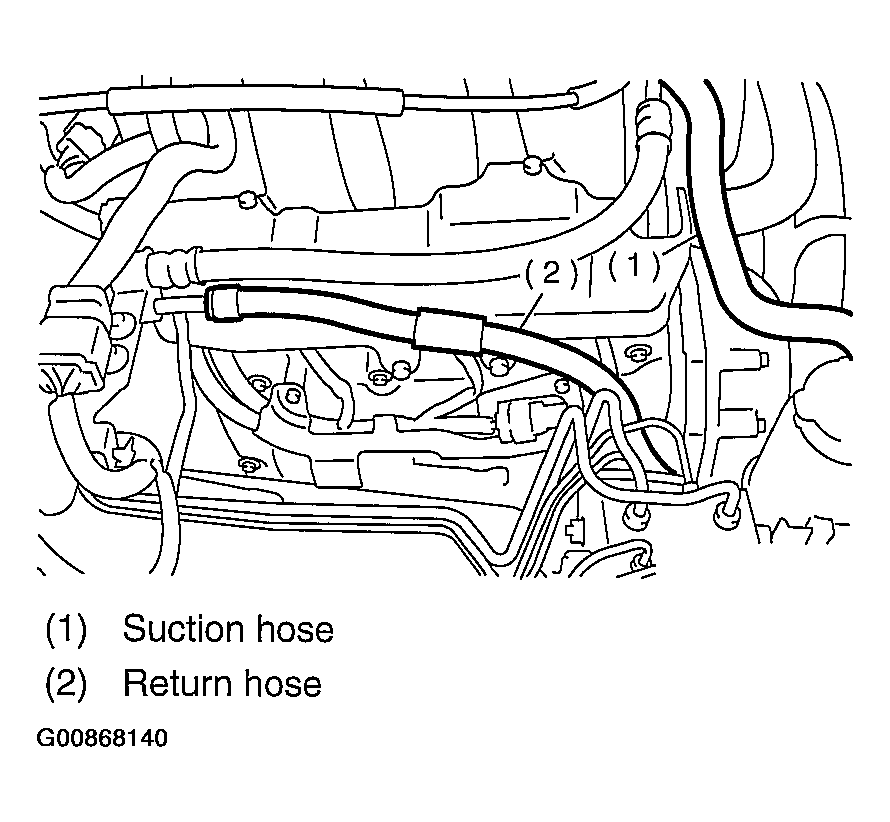

    Fig 1: Connecting Return Hose & Suction Hose To Reservoir Tank (3.0 L Model)
    G00868140Courtesy of SUBARU OF AMERICA, INC.
  3. Feed the specified power steering fluid. Refer to POWER STEERING FLUID .
