Oil Pump

NOTE: The illustration for 2.5 L Non-TURBO model is shown below. (Not shown for TURBO model and 3.0 L mod because it cannot be disassembled.)

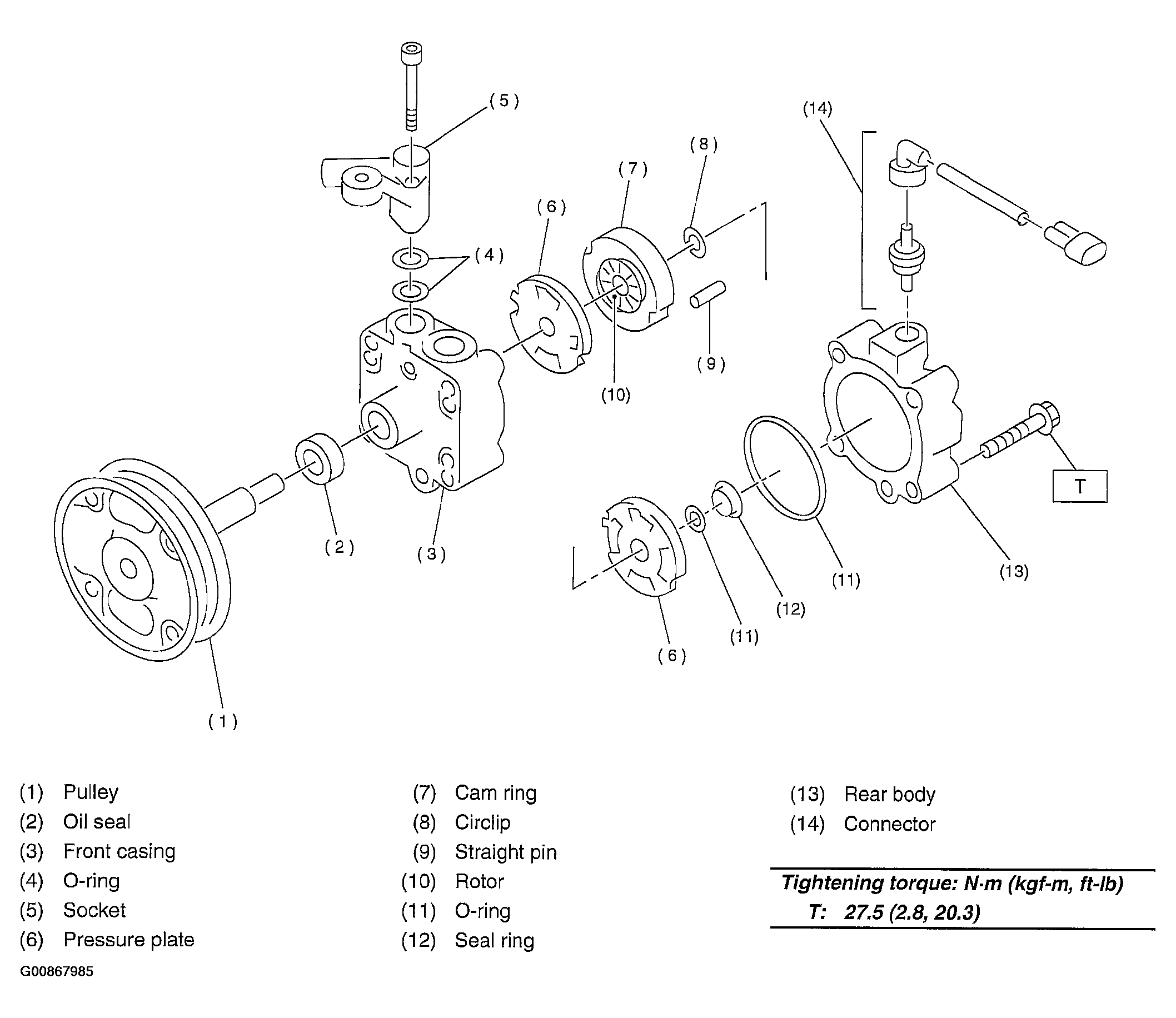

Fig 1: Exploded View Of Oil Pump Components With Torque Specifications
G00867985Courtesy of SUBARU OF AMERICA, INC.
