Schematic Diagrams

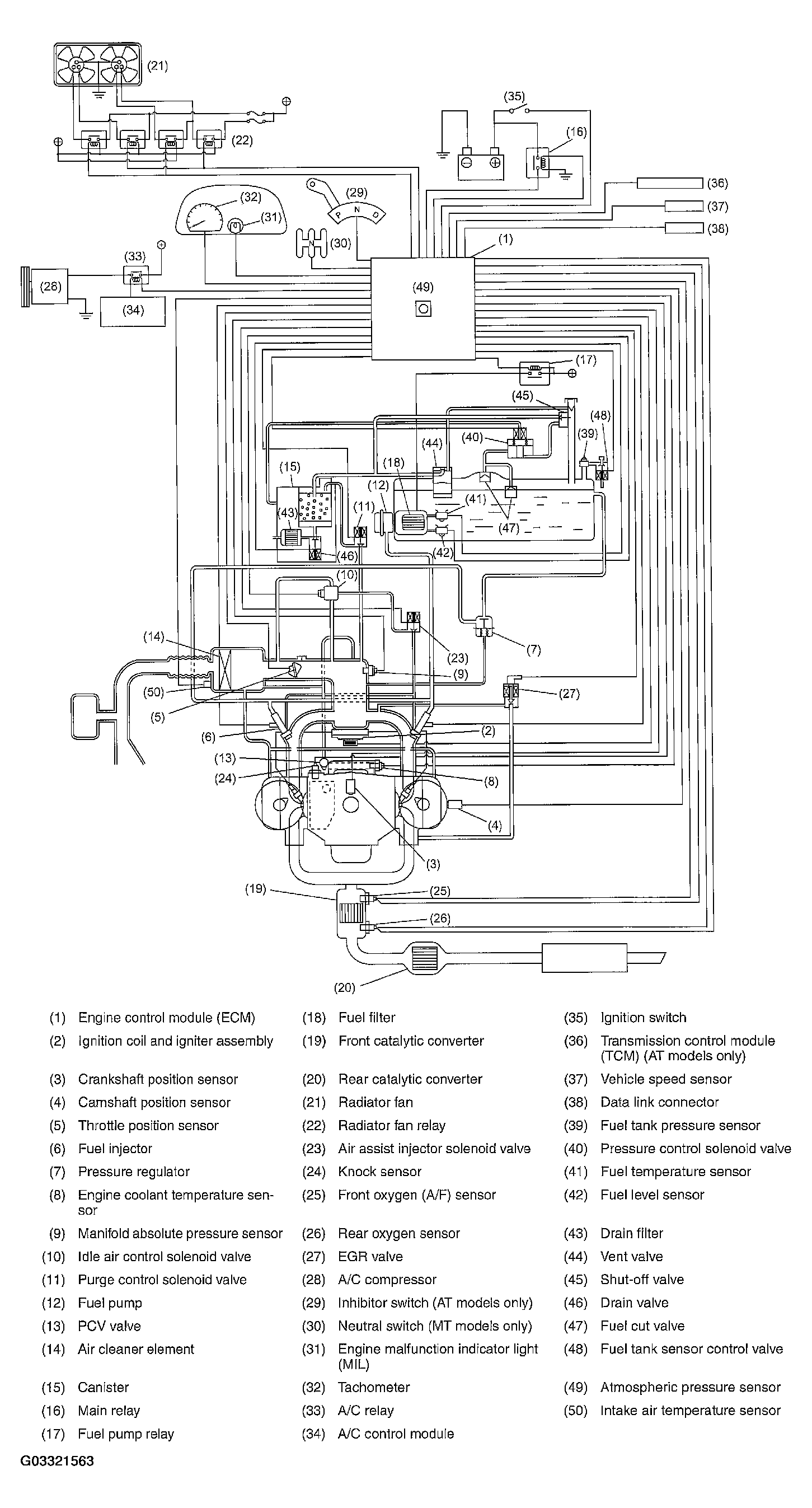

Fig 1: Emission Control (Aux. Emission Control Devices) Schematic Diagrams

G03321563

Courtesy of SUBARU OF AMERICA, INC.
