Fuel Tank Sensor Control Valve

The fuel tank sensor control valve closes the passage from the fuel tank to the air when the OBD system is activated to make a diagnosis.

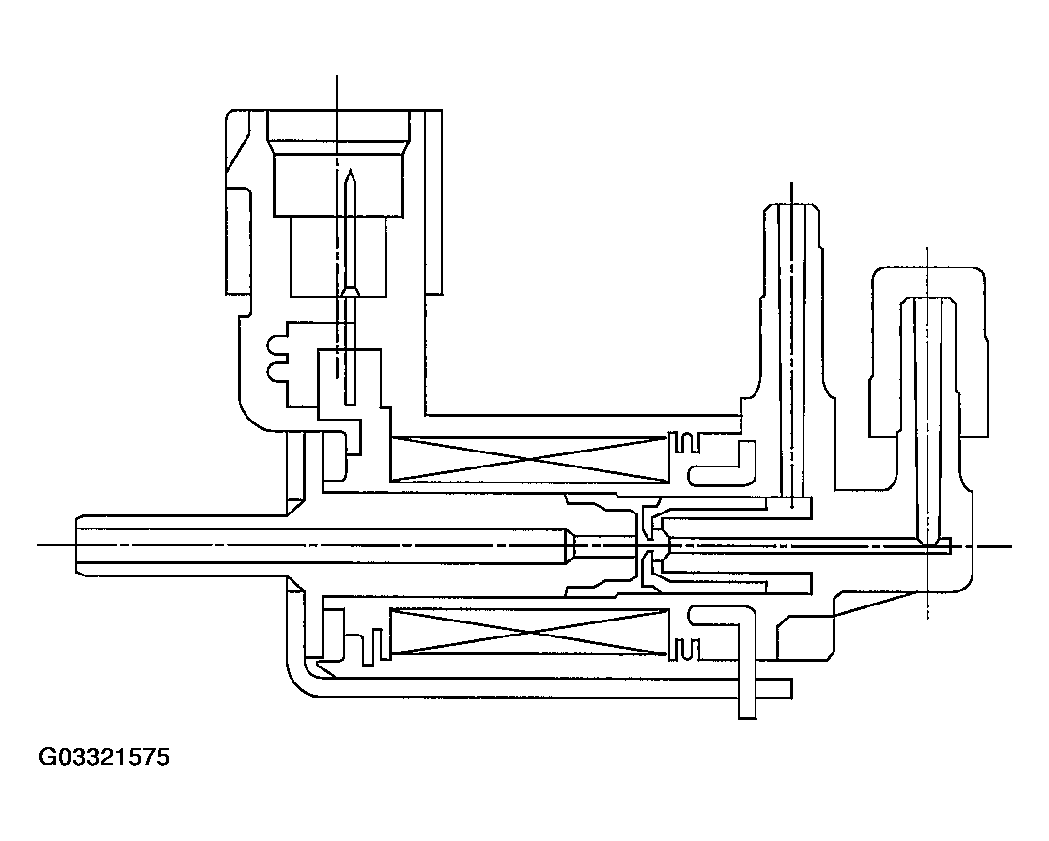

Fig 1: Identifying Fuel Tank Sensor Control Valve
G03321575Courtesy of SUBARU OF AMERICA, INC.
