Fuel System Trouble In General: Inspection

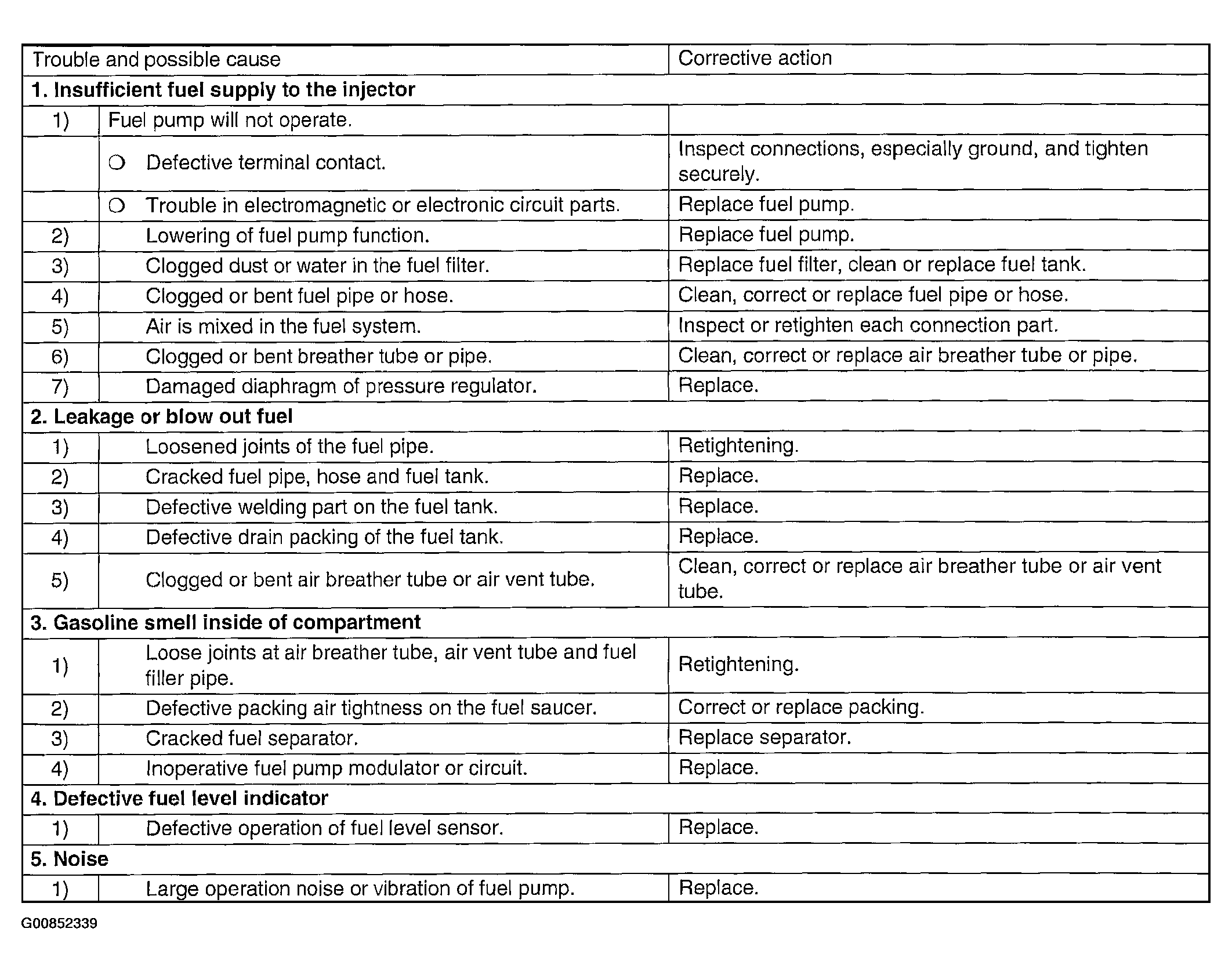

Fig 1: Inspecting Fuel System Trouble
G00852339Courtesy of SUBARU OF AMERICA, INC.
NOTE:
  • When the vehicle is left unattended for an extended period of time, water may accumulate in the fuel tank.

To prevent water condensation.

  1. Top off the fuel tank or drain the fuel completely.
  2. Drain water condensation from the fuel filter.

Refill the fuel tank while there is still some fuel left in the tank.
