Electronic Control Throttle Relay: Removal

  1. Disconnect battery ground cable.

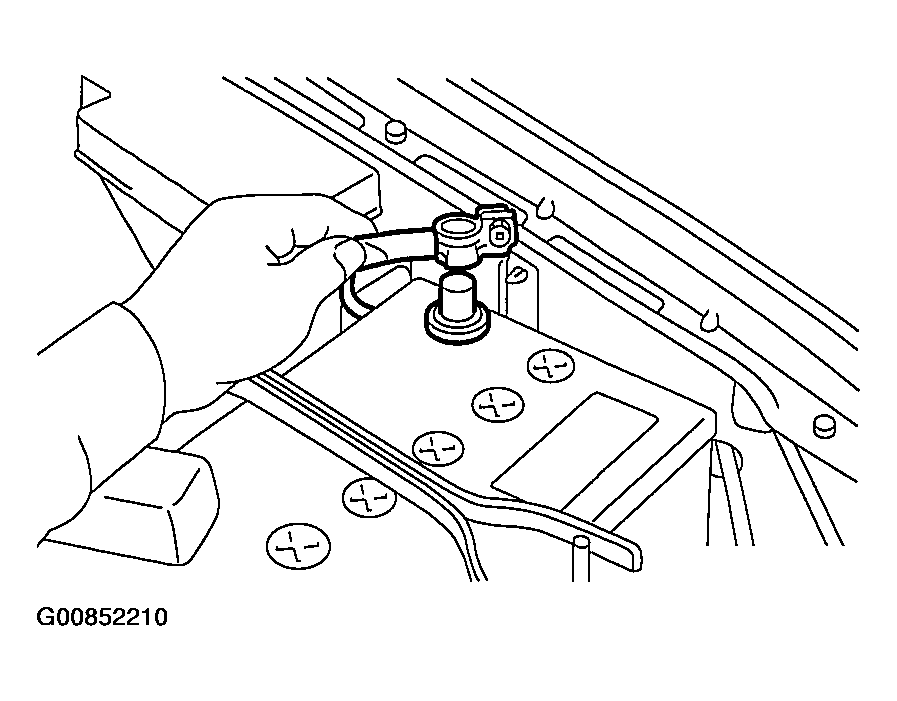

    Fig 1: Disconnecting Battery Ground Cable
    G00852210Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect connector from electronic control throttle relay of passenger side.

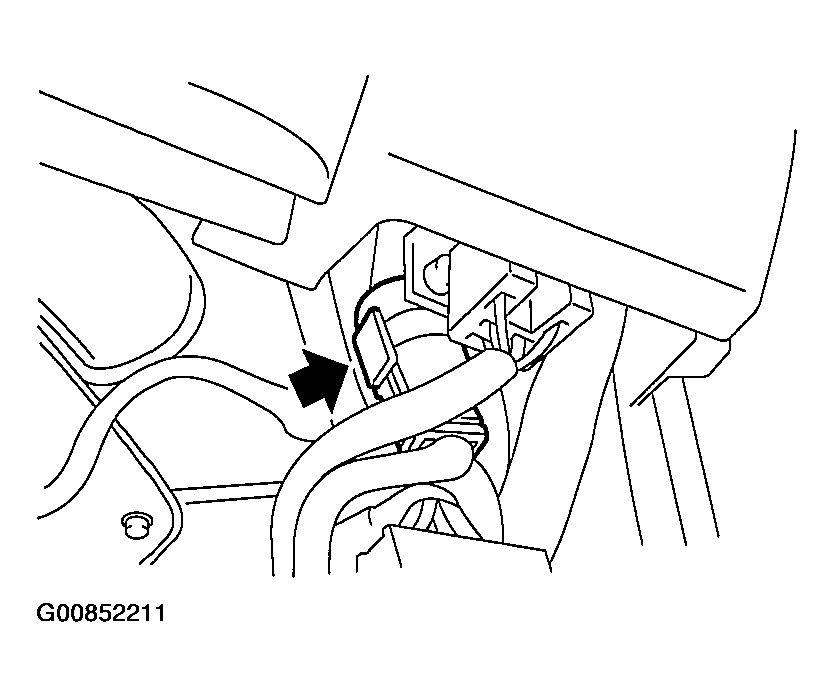

    Fig 2: Disconnecting Connector From Electronic Control Throttle
    G00852211Courtesy of SUBARU OF AMERICA, INC.
