3.0 L Model

  1. Install reservoir tank to bracket.
  2. Connect return hose and suction hose to reservoir tank.

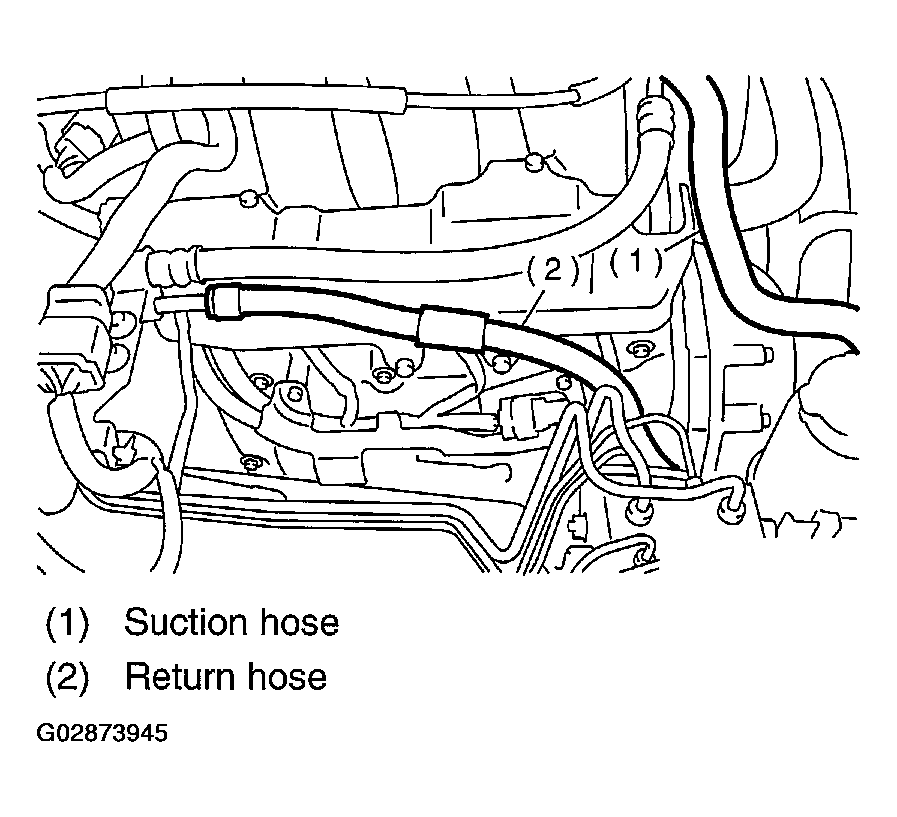

    Fig 1: Connecting Return Hose & Suction Hose To Reservoir Tank
    G02873945Courtesy of SUBARU OF AMERICA, INC.
  3. Feed the specified power steering fluid. < Ref. to POWER STEERING FLUID  .>
