Home >> Subaru >> 2003 >> Outback Base, 4D Sedan >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> A/T & M/T Control Systems >> AT Shift Lock Solenoid and "P" Position Switch >> Inspection

AT Shift Lock Solenoid and "P" Position Switch: Inspection

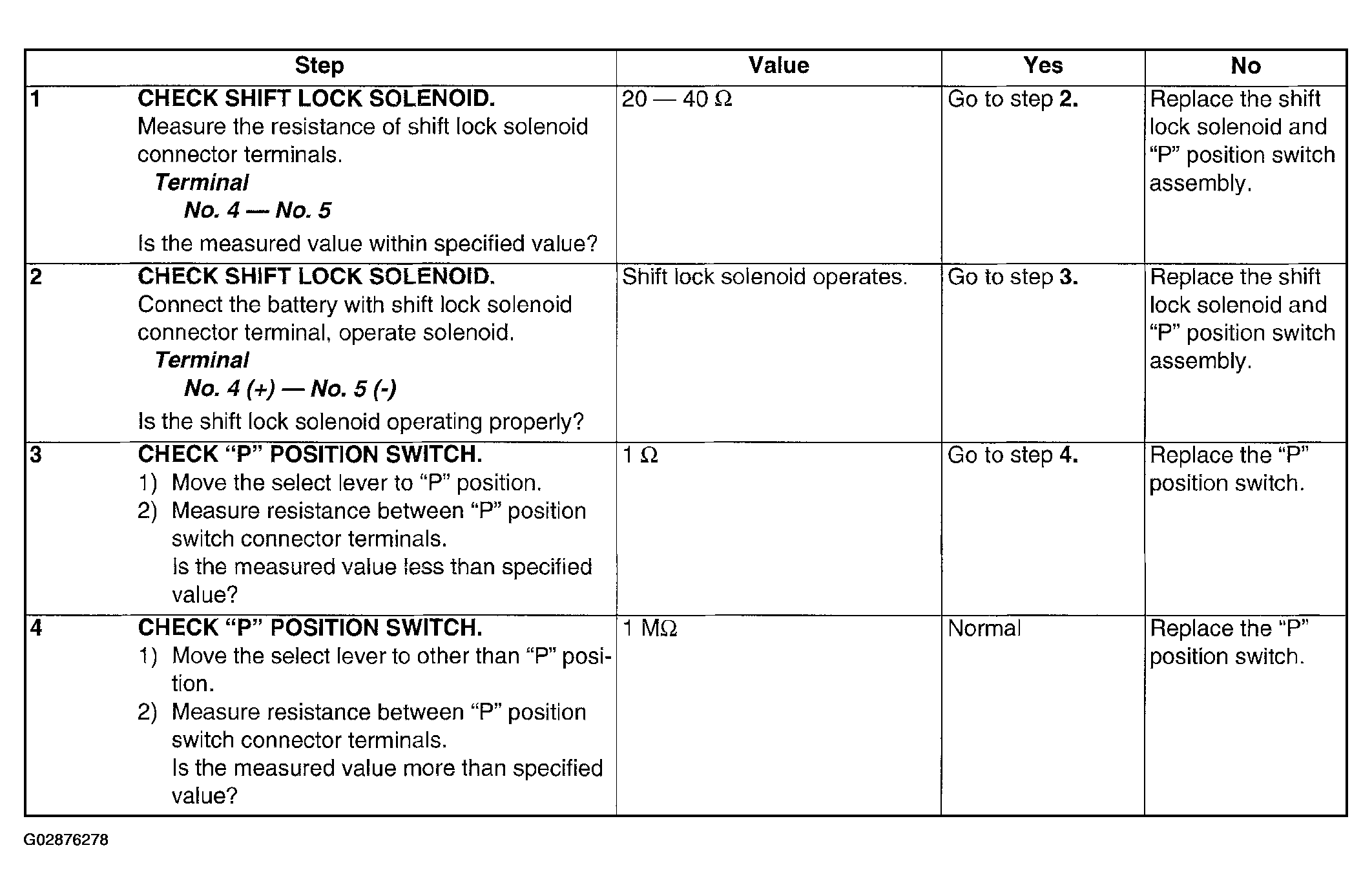

Fig 1: AT Shift Lock Solenoid and "P" Position Switch Inspection Chart

G02876278

Courtesy of SUBARU OF AMERICA, INC.
