R Range

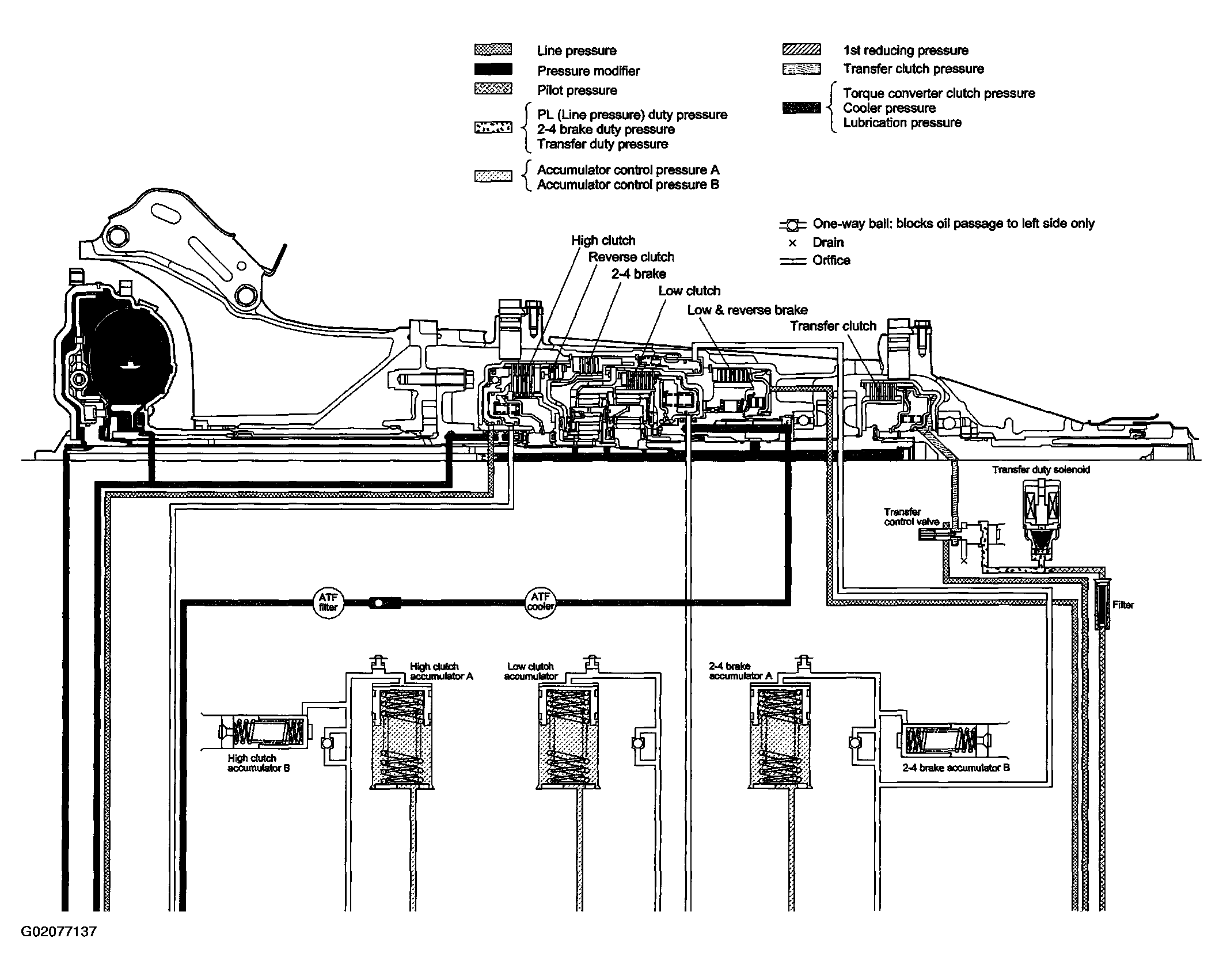

Fig 1: Hydraulic Schematic Diagram - R Range (1 Of 2)

G02077137

Courtesy of SUBARU OF AMERICA, INC.

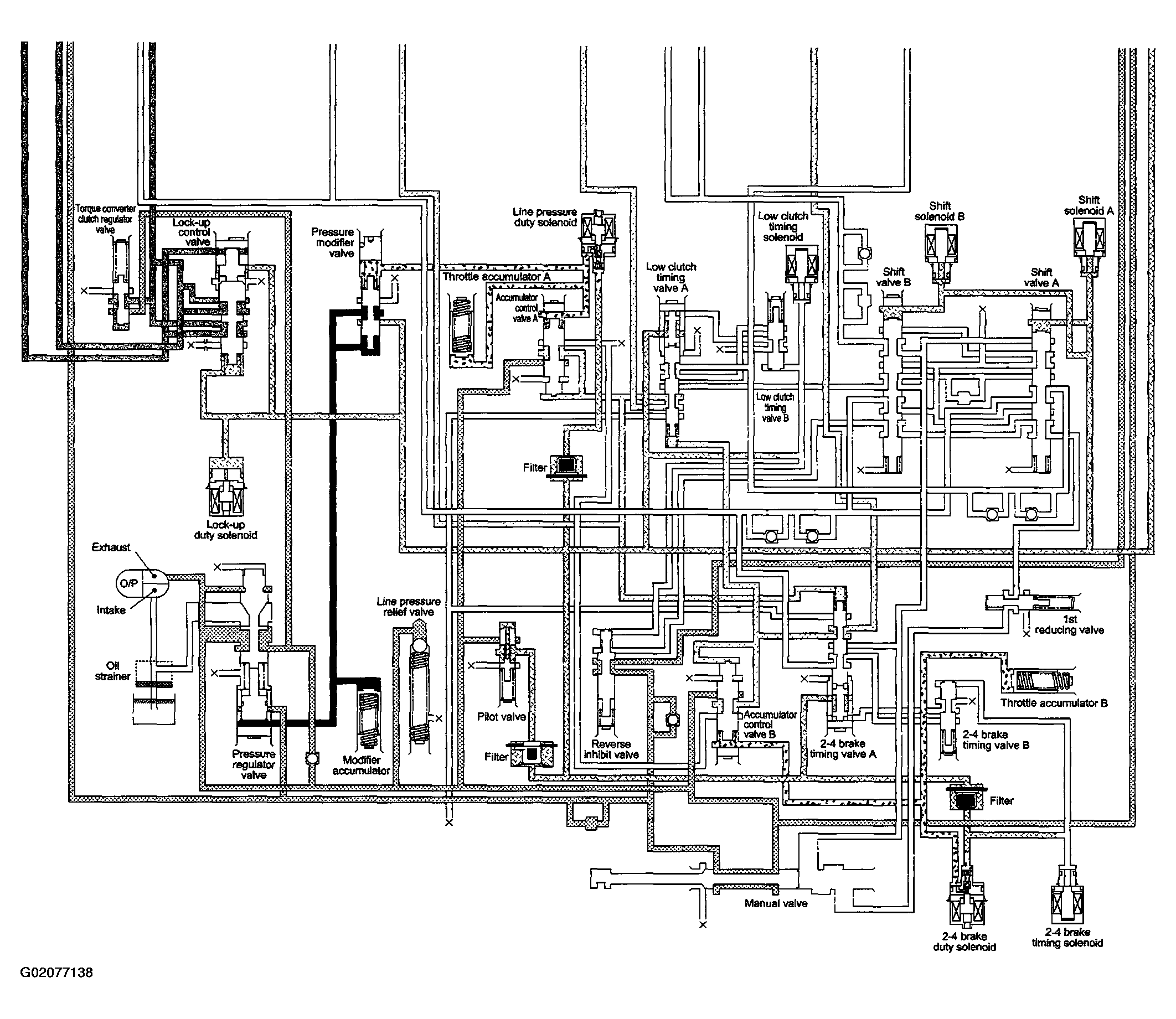

Fig 2: Hydraulic Schematic Diagram - R Range (2 Of 2)

G02077138

Courtesy of SUBARU OF AMERICA, INC.
