Switch Functions

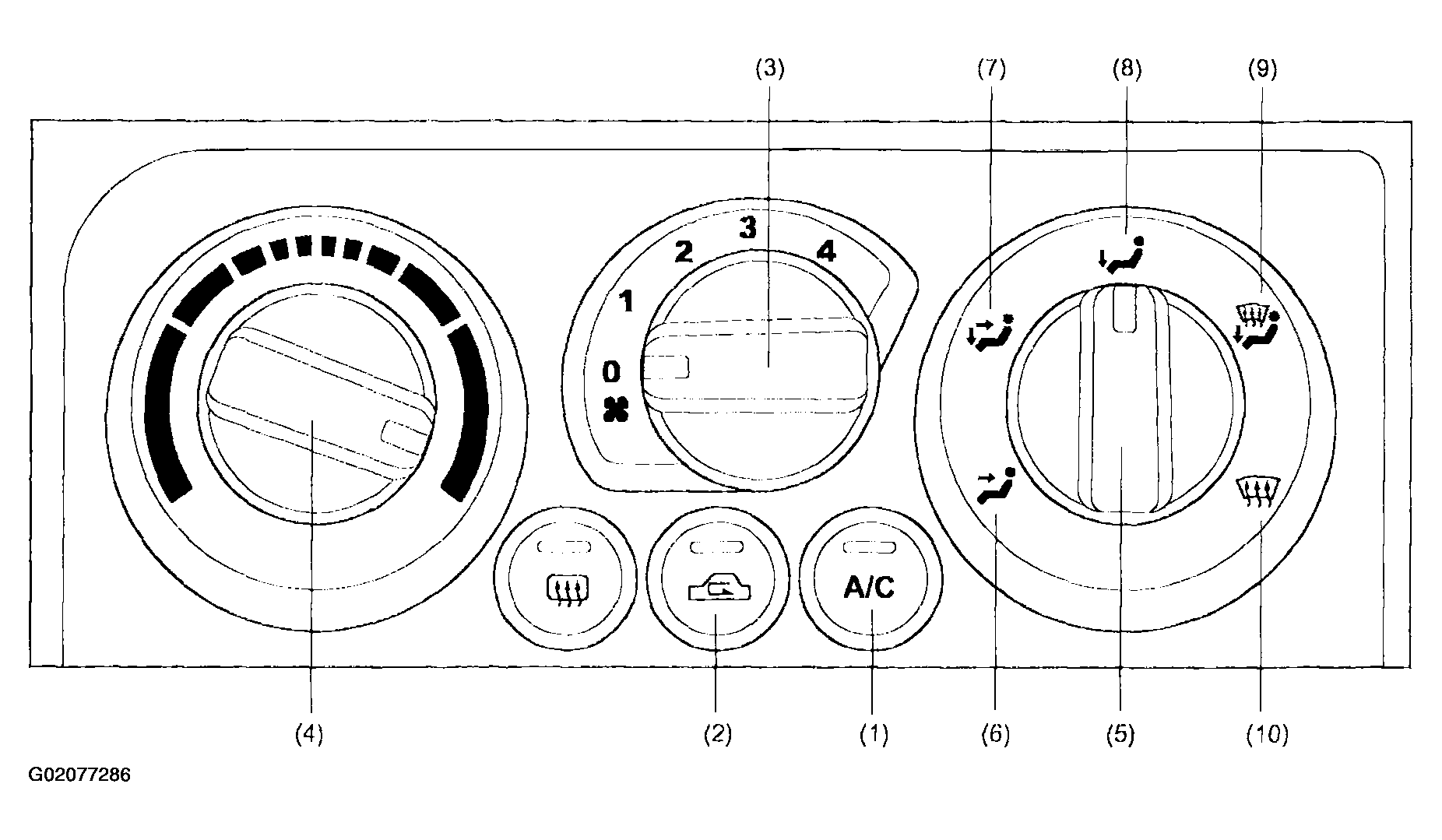

Fig 1: Identifying Switch Functions (1 Of 2)

G02077286

Courtesy of SUBARU OF AMERICA, INC.

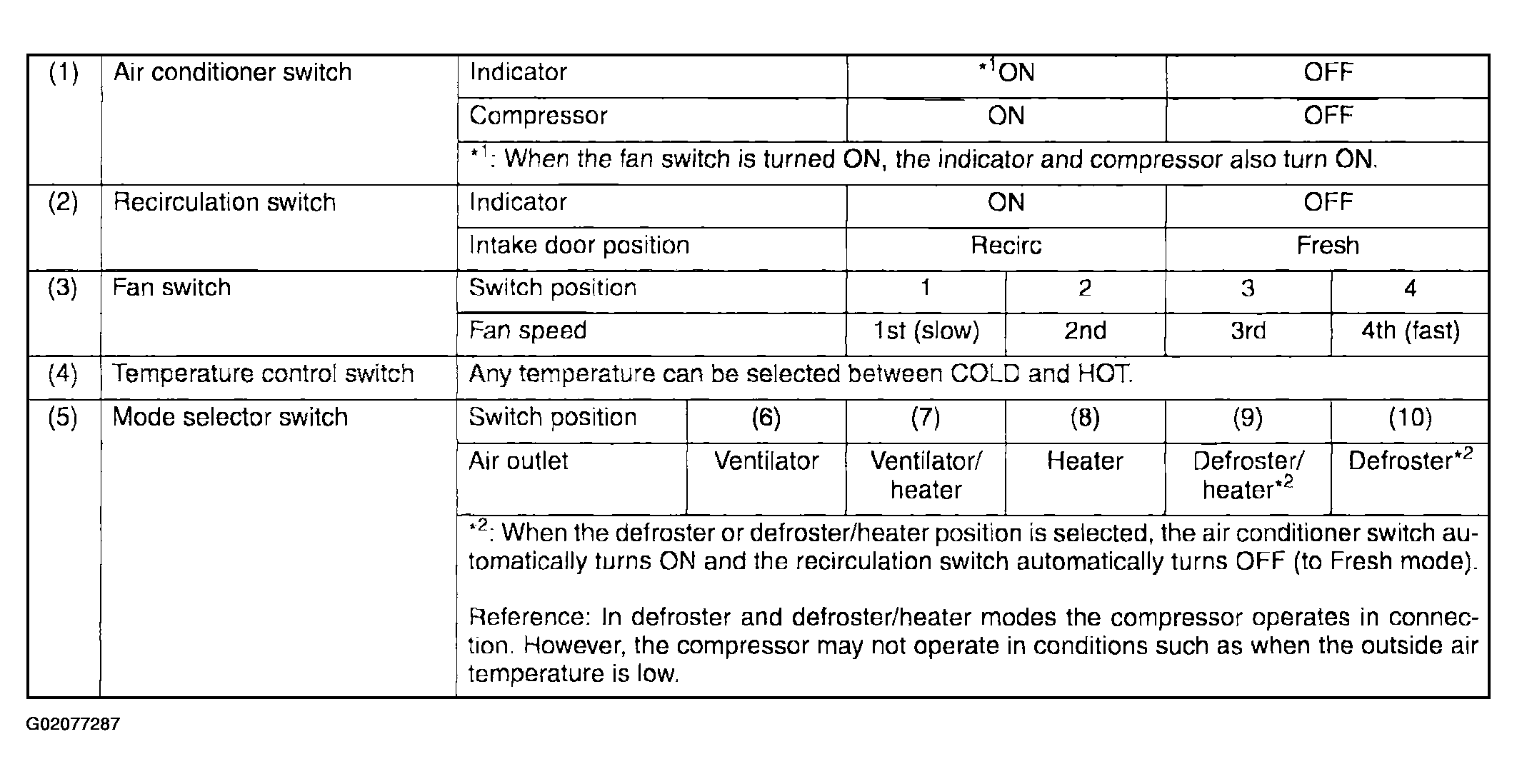

Fig 2: Identifying Switch Functions (2 Of 2)

G02077287

Courtesy of SUBARU OF AMERICA, INC.
