Air Distribution Ratio

The following diagram shows air distribution for each position of the mode selector switch.

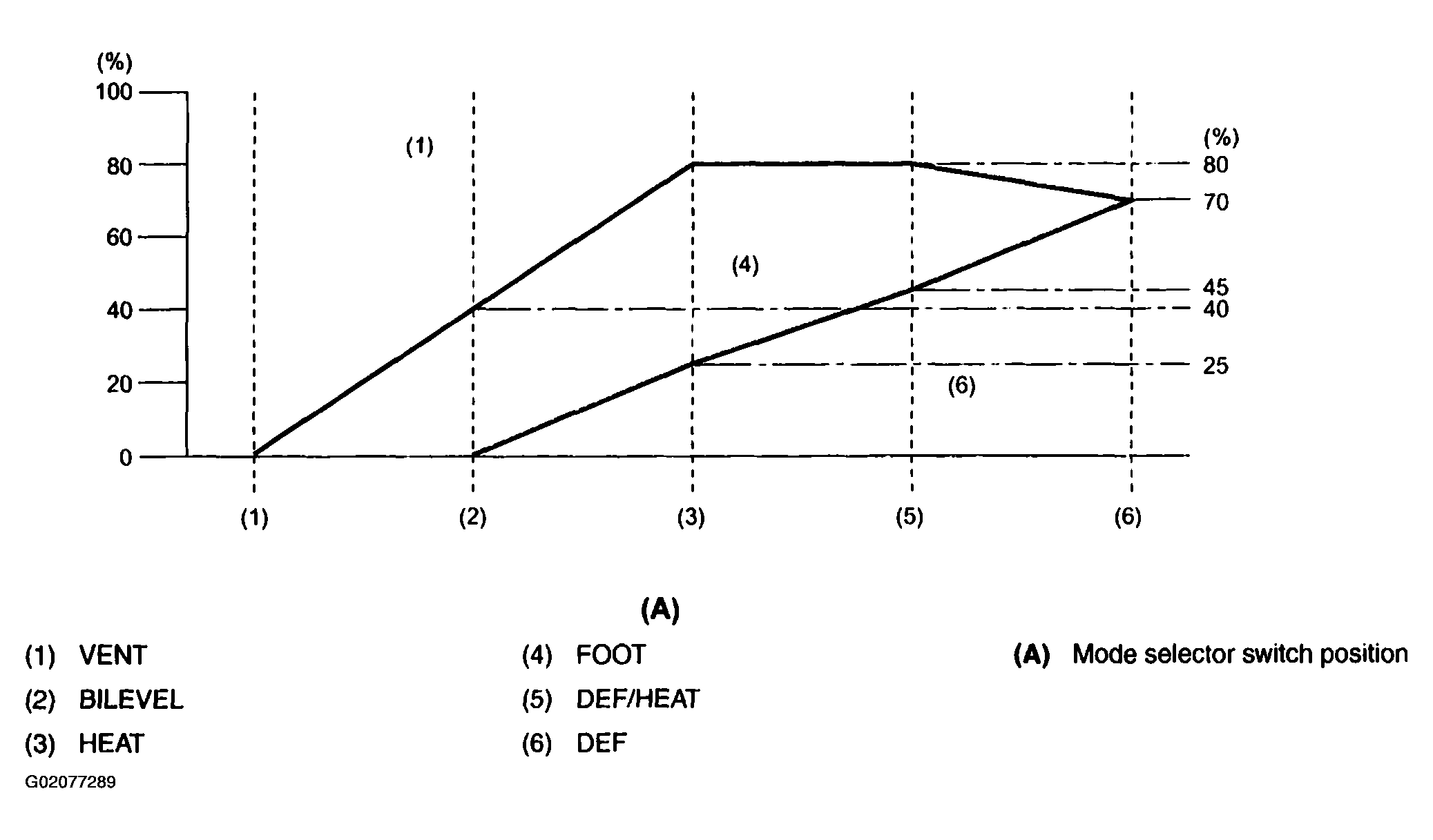

Fig 1: Air Distribution Ratio Graph

G02077289

Courtesy of SUBARU OF AMERICA, INC.
