Fan Control

The main fan and sub fan are switched ON and OFF according to the operating modes as shown in the following table.

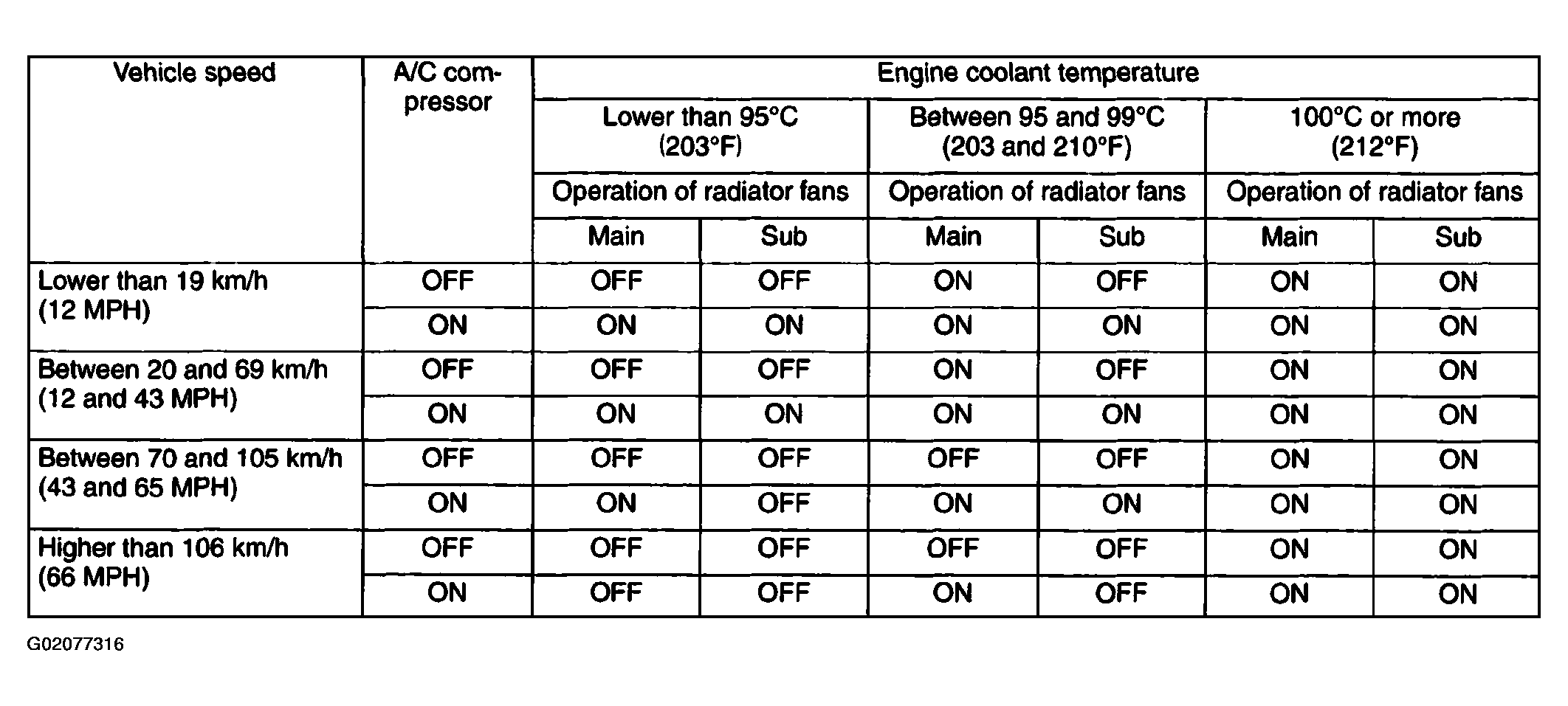

Fig 1: Fan Control Chart
G02077316Courtesy of SUBARU OF AMERICA, INC.
