Manual Control Operation
- A/C switch: The air-conditioner turns on when this switch is pressed first and turns off when it is pressed for the second time.
- Blower fan switch: Fan speed changes in the order of Lo, M1, M2 and Hi, every time it is pressed.
- Ambient temperature display switch: When this switch is pressed momentarily, the ambient temperature is indicated on the display for 5 seconds. When this switch is depressed for more than 1 seconds, the ambient temperature is continuously indicated.
- Defroster switch: Air is directed to the windshield for defrosting when this switch is pressed.
- Rear defogger switch: Pressing this switch causes the rear defogger to operate for 15 minutes.
- FRESH/RECIRC switch: Every time this switch is pressed, switching takes place between fresh air introduction and inside air recirculation alternately.

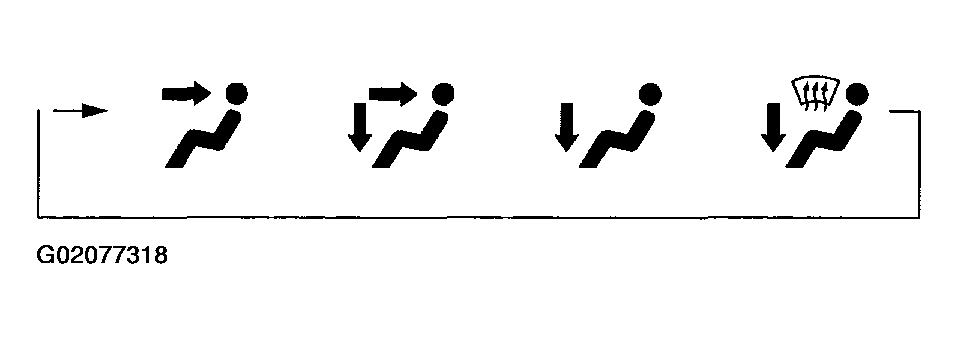

- Mode selector switch: Pressing this switch changes the outlets to which the air is directed in the order shown below.
Courtesy of SUBARU OF AMERICA, INC.
