General Diagnostic Table: Inspection

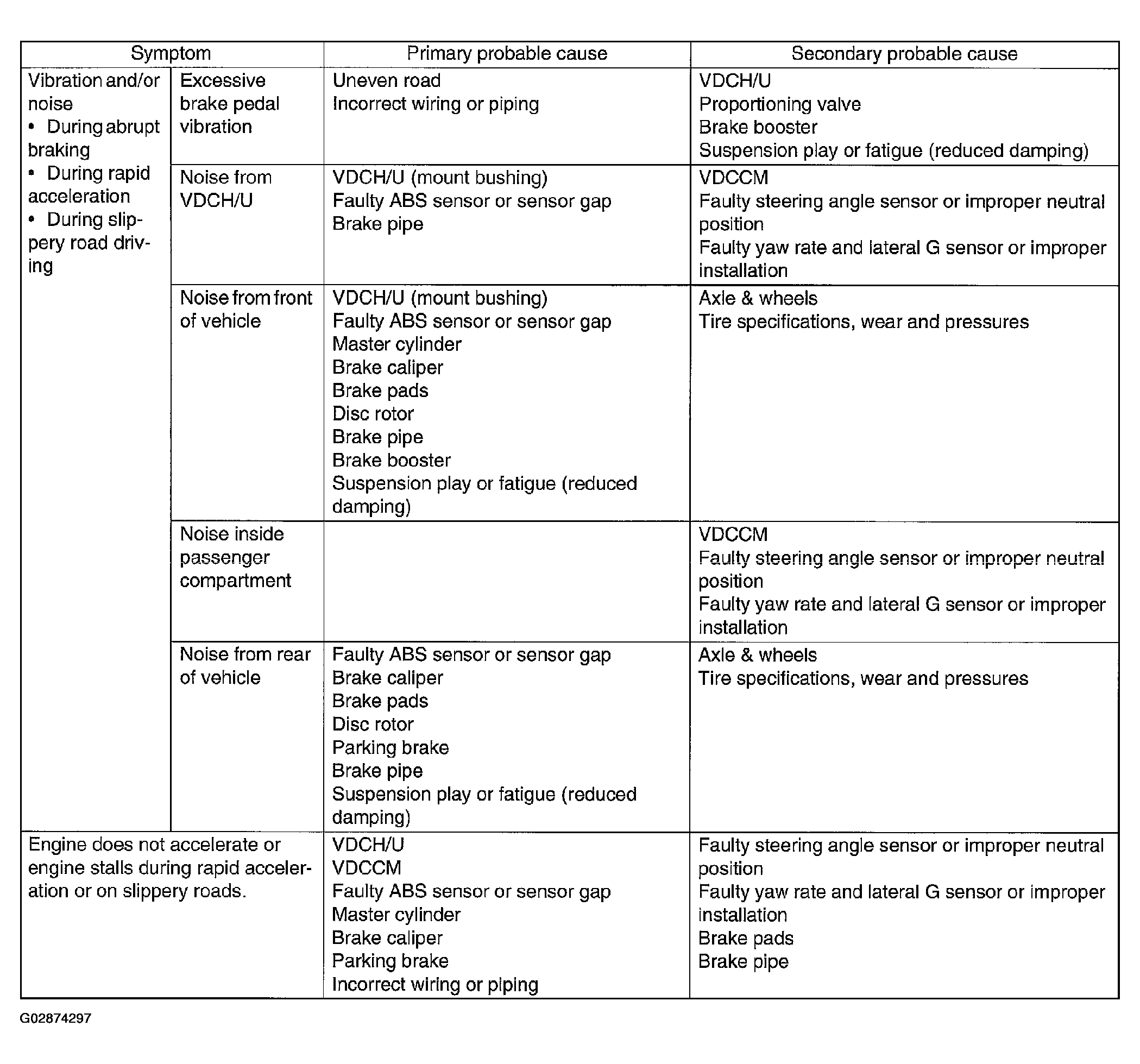

Fig 1: General Diagnostic Table (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

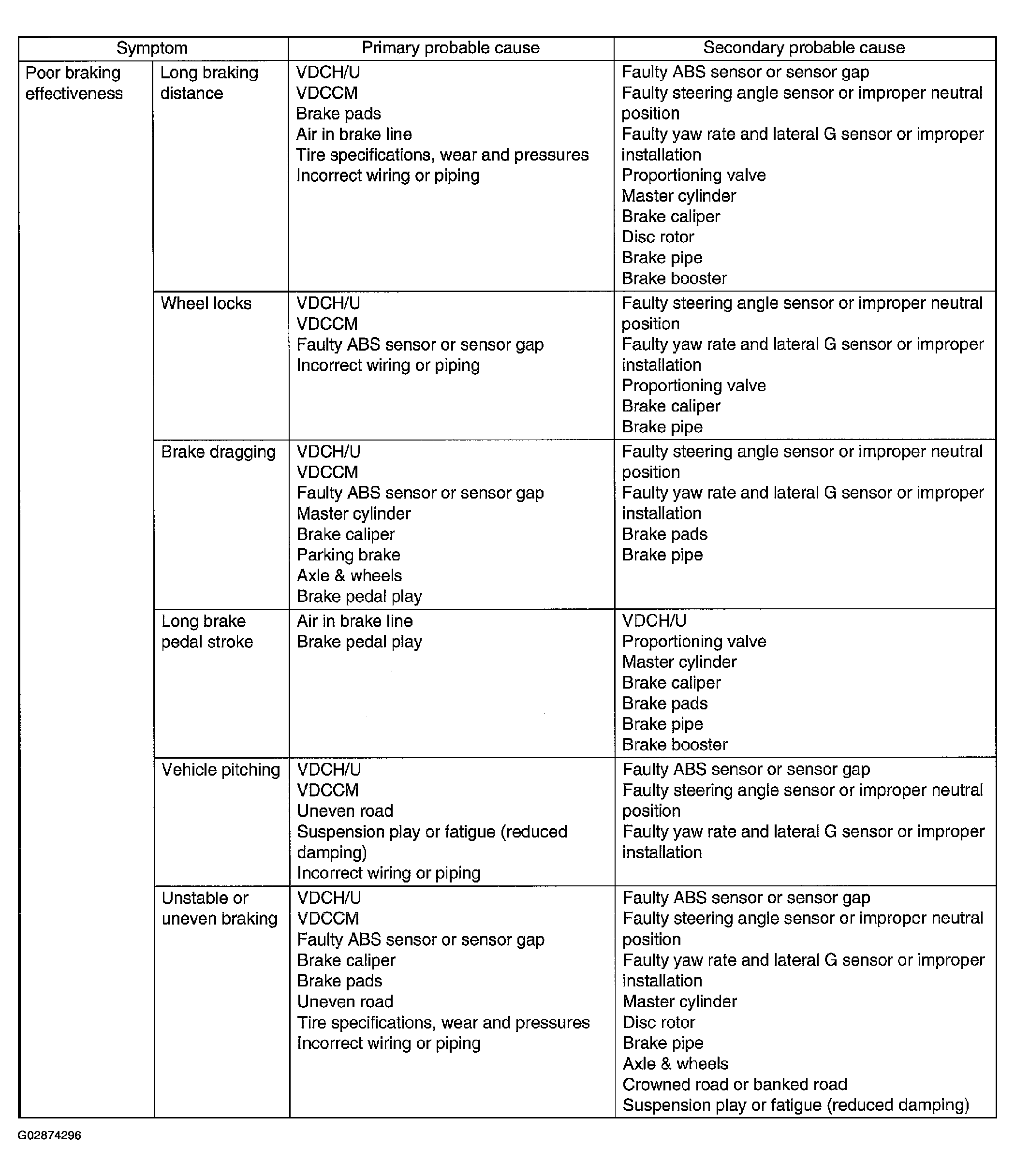

Fig 2: General Diagnostic Table (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

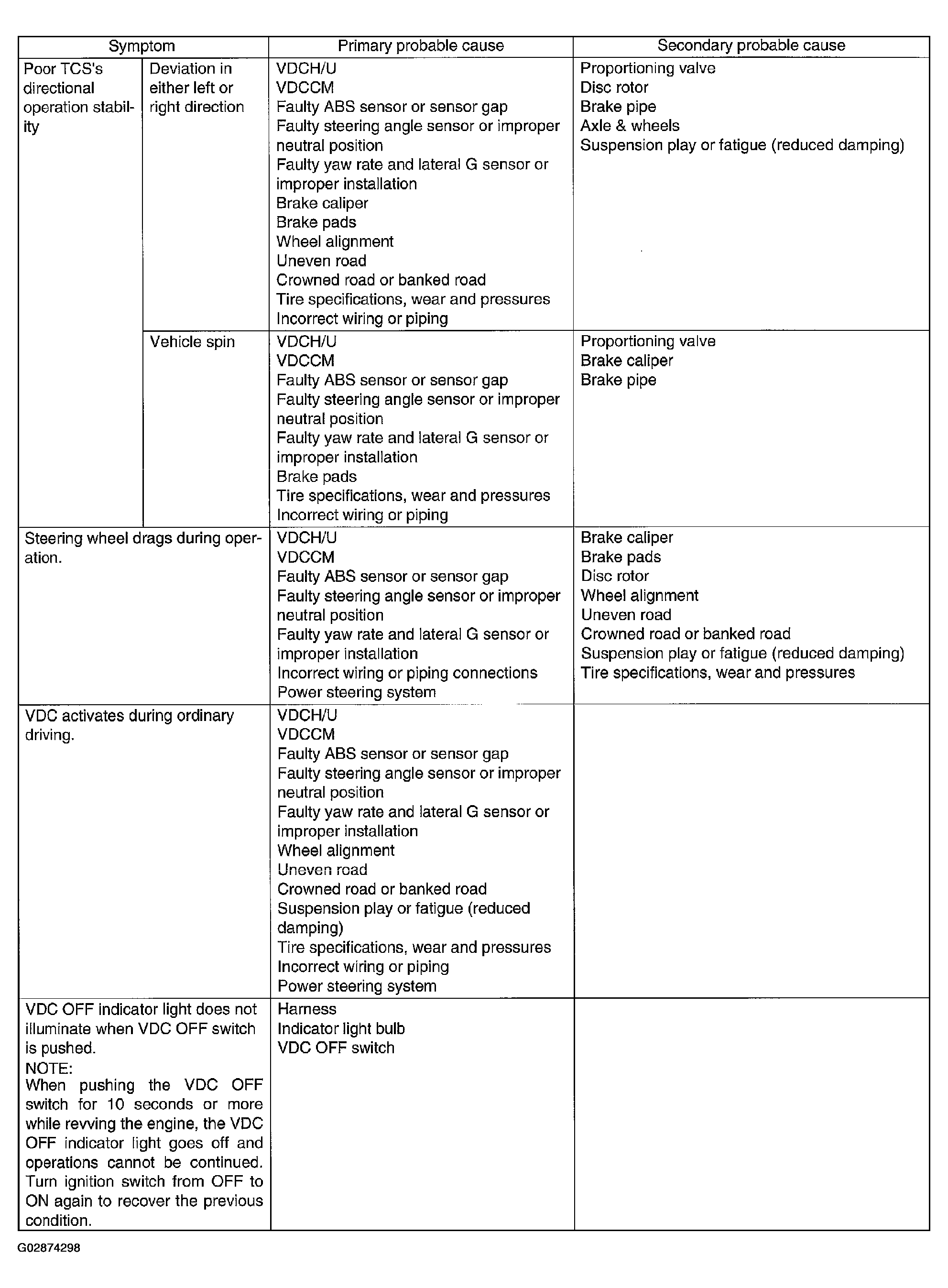

Fig 3: General Diagnostic Table (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
