With SUBARU Select Monitor

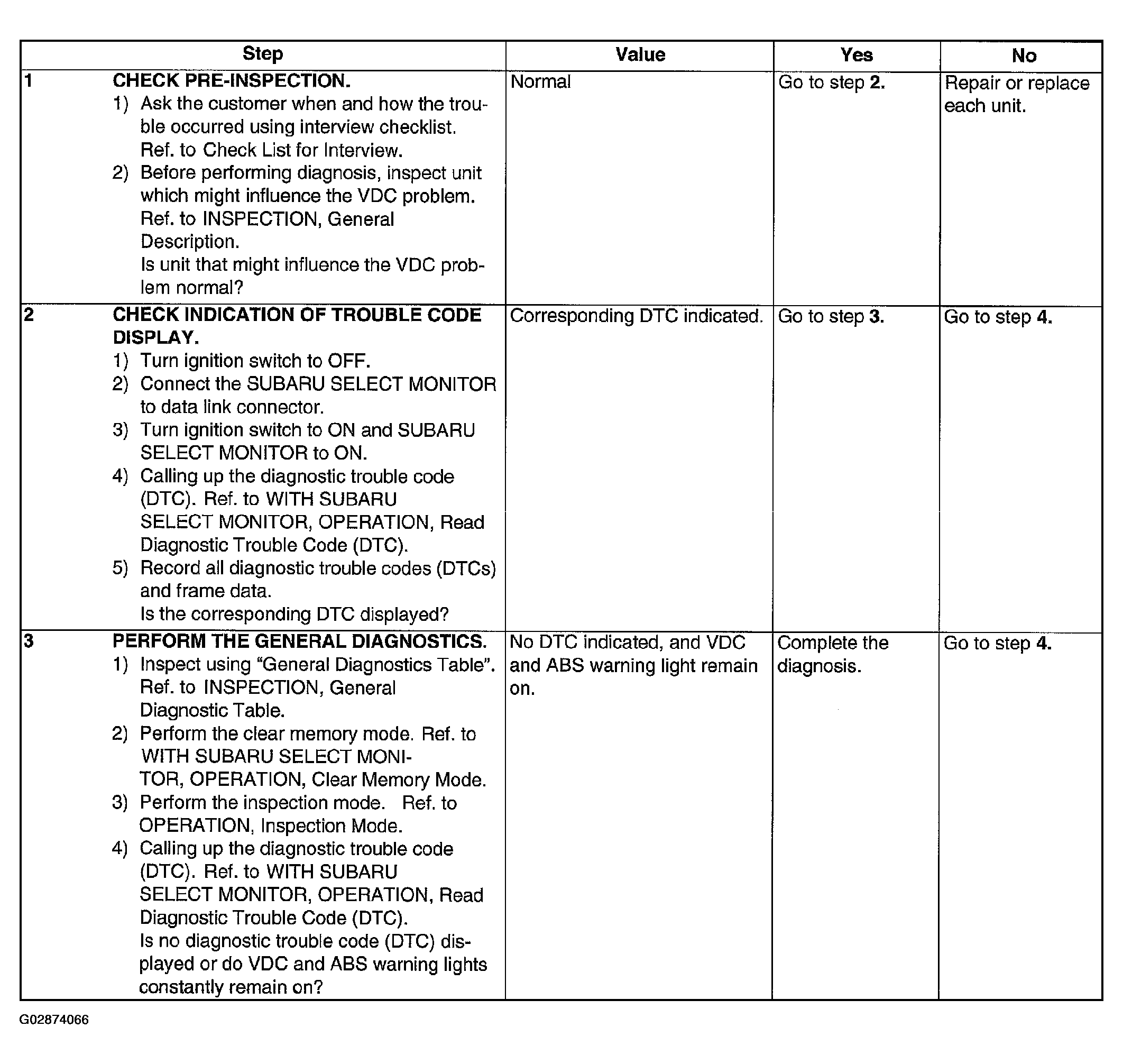

Fig 1: Basic Diagnostics Chart (With Subaru Select Monitor - Steps 1 - 3)

Courtesy of SUBARU OF AMERICA, INC.

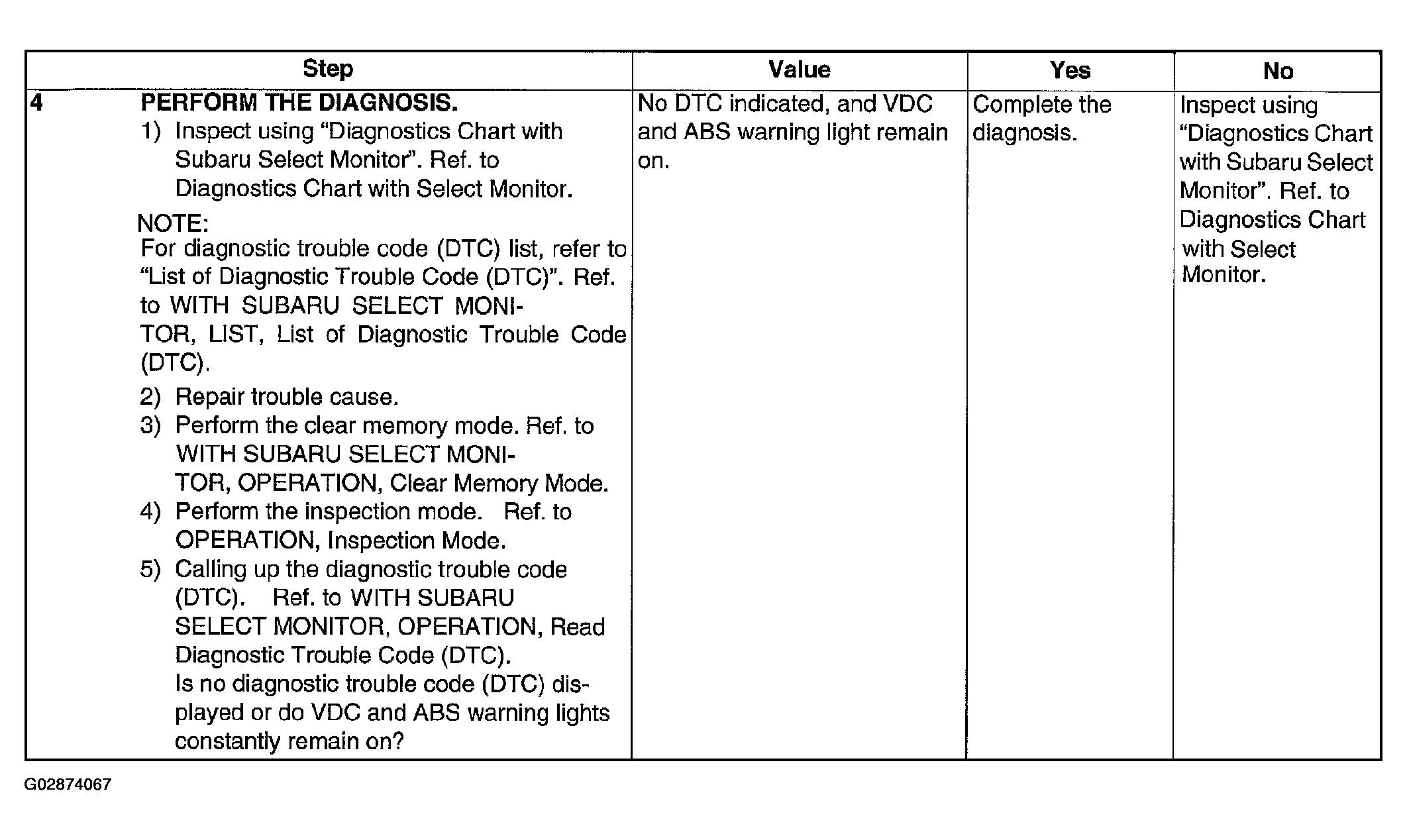

Fig 2: Basic Diagnostics Chart (With Subaru Select Monitor - Step 4)

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

To check harness for broken wires or short circuits, shake it while holding it or the connector.
Check list for interview. Refer to CHECK LIST FOR INTERVIEW .
